0156-0187-0100

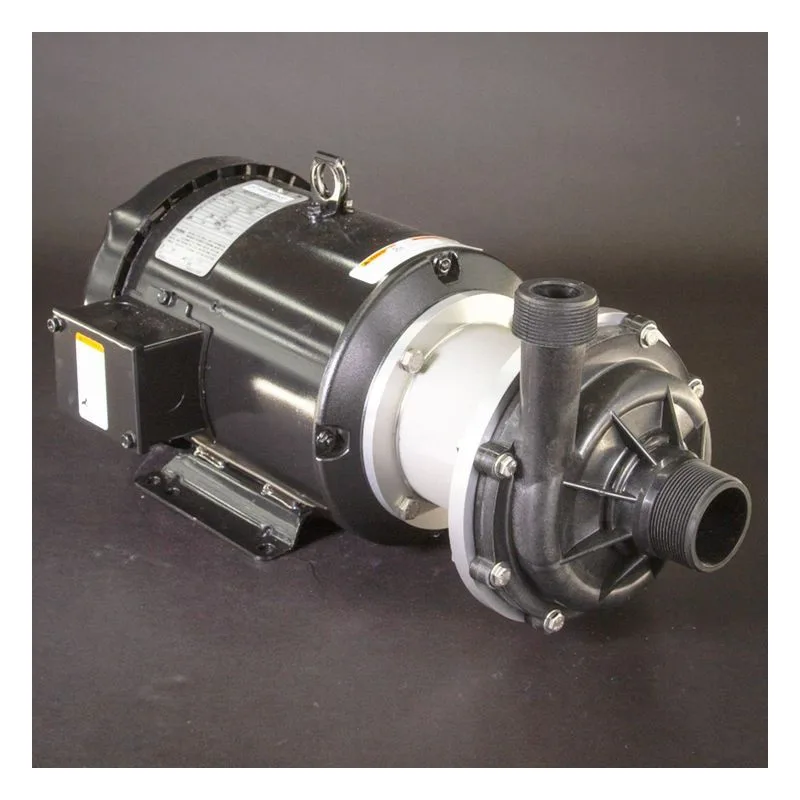

March Pumps 0156-0187-0100 Series 7.5 Chemical Pump, Model Number TE-7.5P-MD with Conduit Box. 2 HP (Horsepower), 115/208/230V, 1 Phase (1 Ph), 60 Hz, 3450 RPM, TEFC, Nidec Motor. Wet End Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), 2" MPT Suction & 1-1/2" MPT Discharge. 82 GPM (Gallons Per Minute) Max Flow, Heads to 85 ft., 60 PSI Max Pressure, and 190°F Liquid Temperature.
$3,909.84
- Best Price Guarantee!
- 781PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
0156-0187-0100
March Pumps 0156-0187-0100 Series 7.5 Chemical Pump, Model Number TE-7.5P-MD with Conduit Box. 2 HP (Horsepower), 115/208/230V, 1 Phase (1 Ph), 60 Hz, 3450 RPM, TEFC, Nidec Motor. Wet End Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), 2" MPT Suction & 1-1/2" MPT Discharge. 82 GPM (Gallons Per Minute) Max Flow, Heads to 85 ft., 60 PSI Max Pressure, and 190°F Liquid Temperature.
| Bracket Material | Plastic |
| Bushing | Carbon |
| Discharge NPT (Inches) | 1-1/2" MPT |
| Engine Model | Nidec |
| Heads To (Feet) | 85 ft. (26 m) |
| Housing Material | Polypropylene |
| HP | 2 HP |
| Hz | 60 Hz |
| Impeller Material | Polypropylene |
| Includes | Conduit Box |
| KW | 1.5 kW |
| Liquid End Configuration | Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing) |
| Liquid Temperature | 190°F (87°C) |
| Max Amps | 19.5/10.8 A |
| Maximum Flow (GPM) | 82 GPM (310 LPM) |
| Maximum Pressure (PSI) | 60 PSI (4.1 Bar) |
| Model Number | TE-7.5P-MD |
| Motor | 0156-0186-1000 |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Motor Shaft Material | Ceramic |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | TE-7.5P-MD 1Ph 2HP PL Bkt |
| Speed (RPM) | 3450 RPM |
| Suction NPT (Inches) | 2" MPT |
| Valve / Seat / O-Ring | Viton O-Ring |
| Voltage | 115/208/230V |
Series 7.5 Information
| Features & Benefits |
|---|
Max Flow: 82 GPM (268LPM 50HZ) |
Categories
Chemical Delivery / Processing
491 productsChemical Delivery / Transfer
530 productsCooling Water Systems
406 productsIndustrial Processes
369 productsMarine
422 productsRefrigeration & Air Conditioning
332 productsWashing / Cleaning Systems
181 productsWastewater Treatment
112 products
| Type | Title | Link | |
|---|---|---|---|
March Pumps Series 7.5 Chemical Pumps Manual | View | ||
Repair Parts for 0156-0187-0100
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 0153-0011-1000 | Ships in | $0.85 | ||
| 0157-0023-1000 | Ships in | $1.28 | ||
| 0156-0060-1000 | Ships in | $207.40 | ||
| 0156-0010-1000 | Ships in | $24.65 | ||
| 0156-0016-1000 | Ships in | $12.75 | ||
| 0156-0007-1000 | Ships in | $28.90 | ||
| 0156-0064-0200 | Ships in | $1,147.50 | ||
| 0156-0061-1000 | Ships in | $158.10 | ||
| 0156-0009-0100 | Ships in | $714.00 | ||
 | 0156-0123-0010 | Ships in | $314.50 | ||
| 0156-0053-1000 | Ships in | $0.85 | ||
| 0155-0017-1000 | Ships in | $2.55 | ||
| 0155-0019-1000 | Ships in | $0.85 | ||
 | 0156-0186-1000 | Ships in | $2,074.00 | ||
| 0156-0091-1000 | Ships in | $167.45 | ||
 | 0156-0066-0100 | Ships in | $1,494.30 | ||
