Image shown may not be actual product
0156-0141-0100

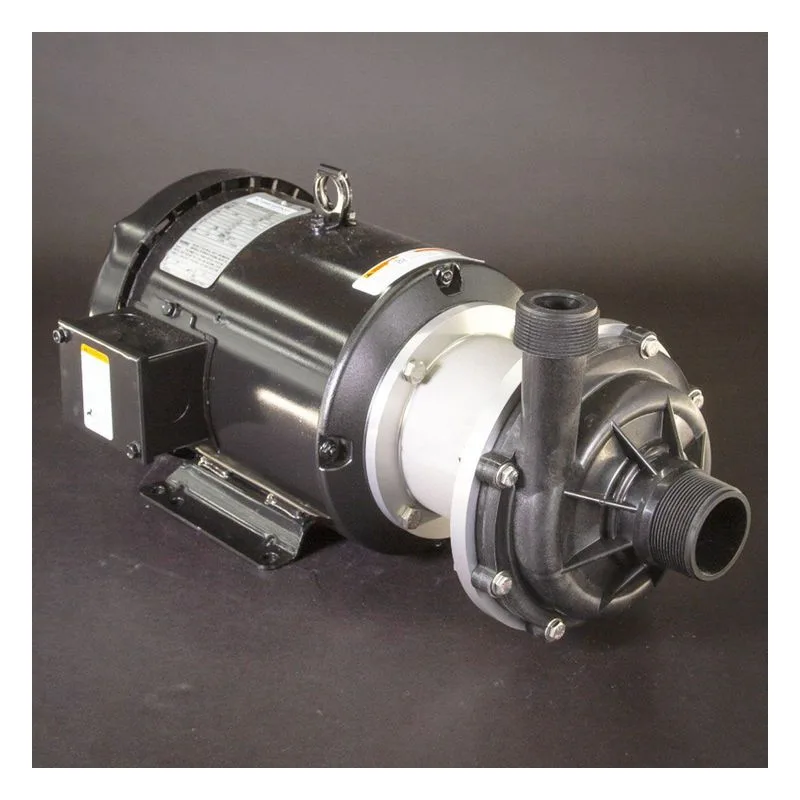

March Pumps 0156-0141-0100 Sealless Centrifugal Magnetic Drive Pump, Model: TE-7.5P-MD. 2 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor. 82 GPM Maximum Flow, Heads to 85 Feet, 60 PSI Max Working Pressure. Wet End Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Cast Iron (Motor Bracket).
$3,285.04
- Best Price Guarantee!
- 656PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
0156-0141-0100
March Pumps 0156-0141-0100 Sealless Centrifugal Magnetic Drive Pump, Model: TE-7.5P-MD. 2 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor. 82 GPM Maximum Flow, Heads to 85 Feet, 60 PSI Max Working Pressure. Wet End Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Cast Iron (Motor Bracket).
| Discharge NPT (Inches) | 1-1/2" MPT |
| Heads To (Feet) | 85 Feet |
| HP | 2 |
| Hz | 60 |
| Maximum Flow (GPM) | 82 GPM |
| Maximum Working Pressure (PSIG) | 60 PSI |
| Model Number | TE-7.5P-MD |
| Motor | Weg |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Phase | 3 Ph (Three Phase) |
| Quick Specs | TE-7.5P-MD 3Ph 2HP CI Bkt, Weg |
| Suction NPT (Inches) | 2" MPT |
| Voltage | 230/460 |
Series 7.5 Information
| Features & Benefits |
|---|
Max Flow: 82 GPM (268LPM 50HZ) |
