0156-0125-0100

Home
March
Series 7.5
0156-0125-0100

Image shown may not be actual product

0156-0125-0100

0 reviews

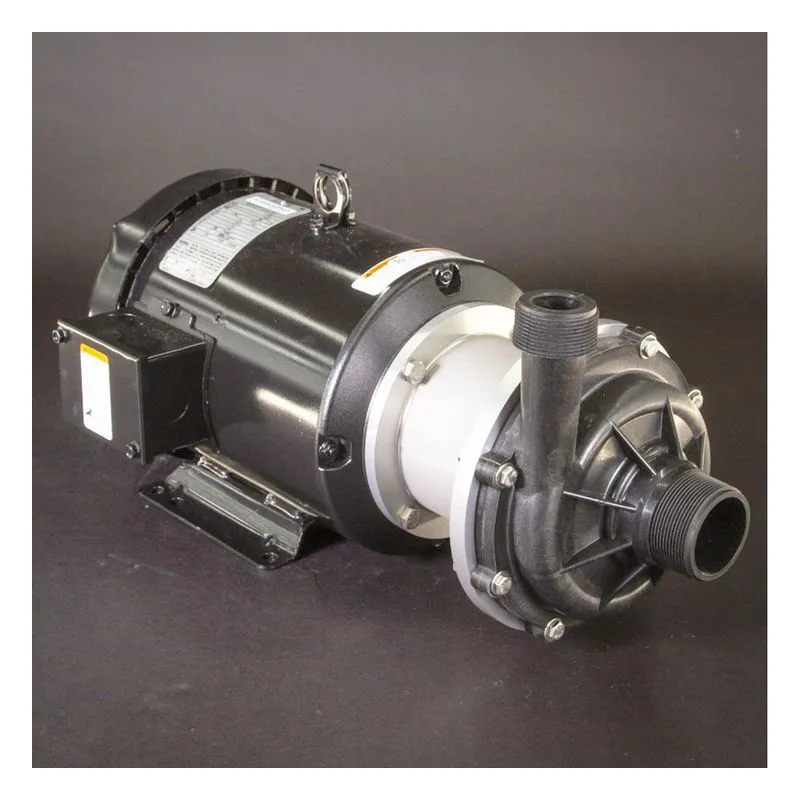

March Pumps 0156-0125-0100, Series 7.5 Sealless Centrifugal Magnetic Drive Chemical Pump, Model: TE-7.5P-MD. 2 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor. 2" MNPT Suction, 1-1/2" MNPT Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Plastic (Bracket).

$3,110.80

Best Price Guarantee!
621PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0156-0125-0100 | Model #: TE-7.5P-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0156-0125-0100

Discharge NPT (Inches)	1-1/2" MNPT
Engine	Weg
Heads To (Feet)	85 Feet
HP	2
Hz	60
Maximum Flow (GPM)	82 GPM / 310 LPM
Maximum Working Pressure (PSIG)	60 psi (413 kPa)

Model Number	TE-7.5P-MD
Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	3 Ph (Three Phase)
Quick Specs	TE-7.5P-MD 575V 3Ph 2HP PL Bkt
Suction NPT (Inches)	2" MNPT
Voltage	575

Series 7.5 Information

Features & Benefits
Max Flow: 82 GPM (268LPM 50HZ) Max Head: 85 Feet (18M 50HZ) Available in Polypropylene and Natural Kynar 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 82 GPM (268LPM 50HZ)
Max Head: 85 Feet (18M 50HZ)
Available in Polypropylene and Natural Kynar
1PH 115V/230V or 3PH 230V/460V

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March TE-7.5P-MD Series 7.5 Chemical Pump Manual (2022)		View

Repair Parts for 0156-0125-0100

	shipping	price
0153-0011-1000	Ships in	$0.85	Select item
0157-0023-1000	Ships in	$1.28	Select item
0156-0060-1000	Ships in	$207.40	Select item
0156-0010-1000	Ships in	$24.65	Select item
0156-0016-1000	Ships in	$12.75	Select item
0156-0007-1000	Ships in	$28.90	Select item
0156-0064-0200	Ships in	$1,147.50	Select item
0156-0061-1000	Ships in	$158.10	Select item
0156-0009-0100	Ships in	$714.00	Select item
0156-0053-1000	Ships in	$0.85	Select item
0155-0017-1000	Ships in	$2.55	Select item
0155-0019-1000	Ships in	$0.85	Select item
0156-0066-0100	Ships in	$1,494.30	Select item
