Image shown may not be actual product
0156-0115-0100

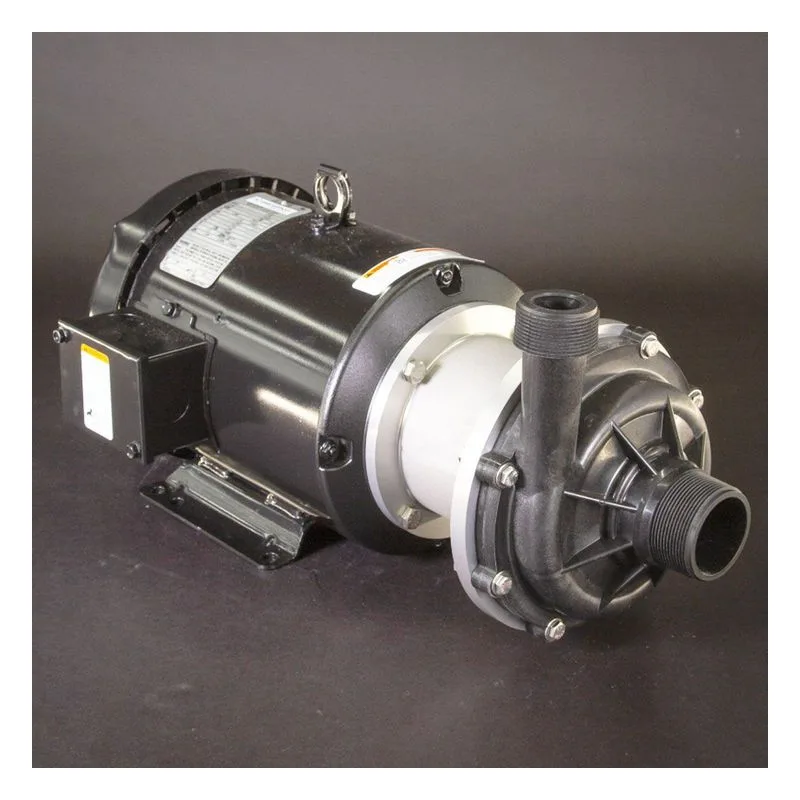

0156-0115-0100 March Pumps Series 7.5 Chemical Pump with Air Motor, Model: TE-7.5P-MD with Weg 3Ph 2HP Motor (AL Bkt). 2 HP, 208/230/460 Volts, 50/60 Hz, 3Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure. 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Aluminum (Bracket).
- Overview
- Series Info
- Reviews
0156-0115-0100
0156-0115-0100 March Pumps Series 7.5 Chemical Pump with Air Motor, Model: TE-7.5P-MD with Weg 3Ph 2HP Motor (AL Bkt). 2 HP, 208/230/460 Volts, 50/60 Hz, 3Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure. 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Aluminum (Bracket).
| Discharge NPT (Inches) | 1-1/2" MPT |
| Heads To (Feet) | 85 Feet |
| HP | 2 |
| Hz | 50/60 |
| Maximum Flow (GPM) | 82 GPM / 310.4 LPM |
| Maximum Working Pressure (PSIG) | 60 psi (413 kPa) |
| Model Number | TE-7.5P-MD |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Phase | 3Ph (Three Phase) |
| Quick Specs | TE-7.5P-MD with Weg 3Ph 2HP Motor (AL Bkt) |
| Suction NPT (Inches) | 2" MNPT |
| Voltage | 208/230/460 |
Series 7.5 Information
| Features & Benefits |
|---|
Max Flow: 82 GPM (268LPM 50HZ) |
