Image shown may not be actual product
0156-0001-0200

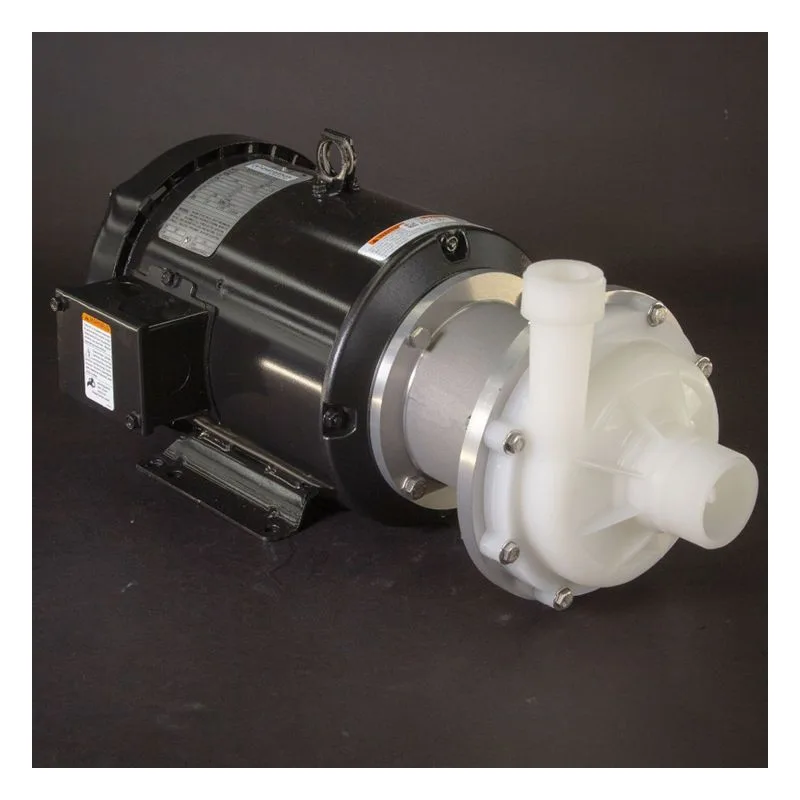

0156-0001-0200 March Pumps Series 7.5 Chemical Pump, Model TE-7.5K-MD 1PH 2HP. 2 HP, 115/208/230 Volts, 50/60 Hz, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure, 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing).
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
0156-0001-0200
0156-0001-0200 March Pumps Series 7.5 Chemical Pump, Model TE-7.5K-MD 1PH 2HP. 2 HP, 115/208/230 Volts, 50/60 Hz, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure, 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing).
| Discharge NPT (Inches) | 1-1/2" MPT |
| Heads To (Feet) | 85 Feet |
| HP | 2 |
| Hz | 50/60 |
| Maximum Flow (GPM) | 82 GPM / 310.4 LPM |
| Maximum Working Pressure (PSIG) | 60 psi (413 kPa) |
| Model Number | TE-7.5K-MD 1PH 2HP |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | TE-7.5K-MD |
| Suction NPT (Inches) | 2" MNPT |
| Voltage | 115/208/230 |
Series 7.5 Information
| Features & Benefits |
|---|
Max Flow: 82 GPM (268LPM 50HZ) |
Categories
Chemical Delivery / Processing
491 productsChemical Delivery / Transfer
530 productsCooling Water Systems
406 productsIndustrial Processes
369 productsMarine
422 productsRefrigeration & Air Conditioning
332 productsWashing / Cleaning Systems
181 productsWastewater Treatment
112 products
| Type | Title | Link | |
|---|---|---|---|
March Pump Series Manual | View | ||
Repair Parts for 0156-0001-0200
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 0153-0011-1000 | Ships in | $0.85 | ||
| 0157-0023-1000 | Ships in | $1.28 | ||
| 0156-0001-1000 | Ships in | $207.40 | ||
| 0156-0010-1000 | Ships in | $24.65 | ||
| 0156-0016-1000 | Ships in | $12.75 | ||
| 0156-0007-1000 | Ships in | $28.90 | ||
| 0156-0004-0200 | Ships in | $1,147.50 | ||
| 0156-0002-1000 | Ships in | $158.10 | ||
| 0156-0009-0100 | Ships in | $714.00 | ||
 | 0156-0123-0010 | Ships in | $314.50 | ||
| 0156-0053-1000 | Ships in | $0.85 | ||
| 0155-0017-1000 | Ships in | $2.55 | ||
| 0155-0019-1000 | Ships in | $0.85 | ||
| 0156-0022-1000 | Ships in | Call for pricing | ||
| 0156-0031-0100 | Ships in | $1,494.30 | ||
| 0156-0147-0100 | Ships in | $2,421.76 | ||
