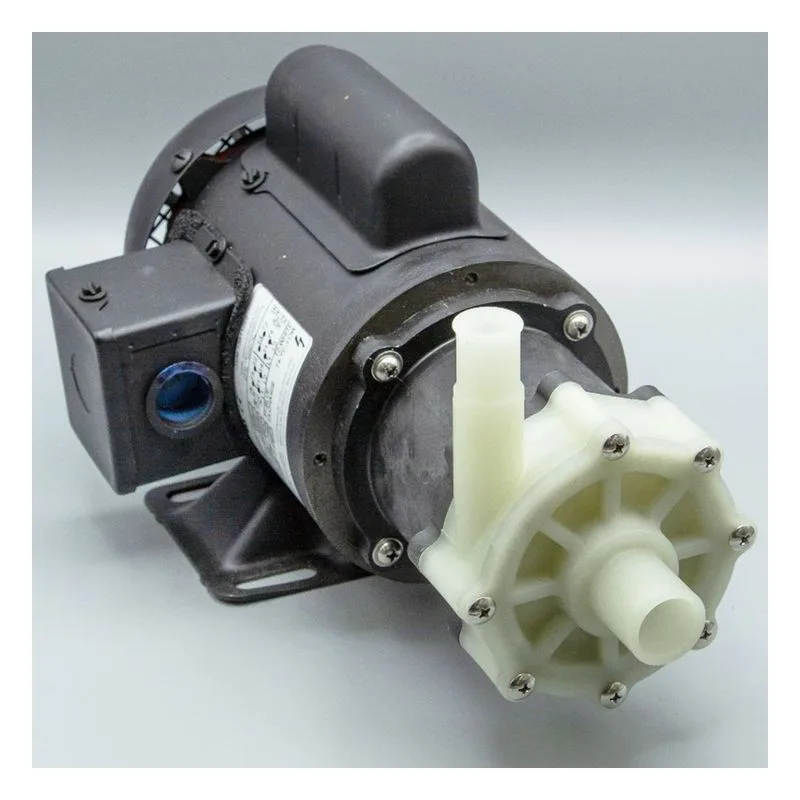

Image shown may not be actual product

0150-0214-0400

0 reviews

0150-0214-0400 March Pumps Series 5 Chemical Pump, Model TE-5A-MD 1PH 1/5HP Weg Mtr. 0.2 HP, 115/230 Volts, 50/60 Hz, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure, 1" OD Suction, 3/4" OD Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers).

$801.68

Best Price Guarantee!
160PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0150-0214-0400 | Model #: TE-5A-MD 1PH 1/5HP Weg Mtr

Overview
Reviews
Literature/Manuals
Repair Parts

0150-0214-0400

Discharge NPT (Inches)	3/4" OD
Engine Manufacturer	Weg
Heads To (Feet)	29' (8.84m)
HP	0.2
Hz	50/60
Maximum Flow (GPM)	18 GPM / 68.1 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)

Model Number	TE-5A-MD 1PH 1/5HP Weg Mtr
Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	1 Ph (Single Phase)
Quick Specs	TE-5A-MD
Suction NPT (Inches)	1" OD
Voltage	115/230

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March Pump Series Manual		View

Repair Parts for 0150-0214-0400

	shipping	price
0150-0021-1000	Ships in	$0.85	Select item
0150-0150-1000	Ships in	$20.40	Select item
0750-0986-1000	Ships in	$5.10	Select item
0130-0028-1000	Ships in	$3.82	Select item
0130-0024-1000	Ships in	$11.05	Select item
0150-0098-0200	Ships in	$57.80	Select item
0150-0159-0100	Ships in	$20.40	Select item
0150-0176-0300	Ships in	$115.60	Select item
0150-0050-1000	Ships in	$0.85	Select item
0150-0051-1000	Ships in	$0.85	Select item
0150-0070-0100	Ships in	$23.80	Select item
0150-0213-1000	Ships in	$535.50	Select item
