Image shown may not be actual product
0151-0156-0100
March Pumps 0151-0156-0100 Series 5.5 Chemical Pump, Model Number Flanged TE-6P-MD with Conduit Box. 0.33 HP (1/3 Horsepower), 115-208/230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, TEFC Motor. Wet End Materials: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), 1" ANSI Class 150 Flange Suction & 3/4" ANSI Class 150 Flange Discharge. 30 GPM (Gallons Per Minute) Max Flow, Heads to 41 ft., 75 PSI Max Pressure, and 200°F Liquid Temperature.
$1,806.64
- Best Price Guarantee!
- 361PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
0151-0156-0100
March Pumps 0151-0156-0100 Series 5.5 Chemical Pump, Model Number Flanged TE-6P-MD with Conduit Box. 0.33 HP (1/3 Horsepower), 115-208/230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, TEFC Motor. Wet End Materials: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), 1" ANSI Class 150 Flange Suction & 3/4" ANSI Class 150 Flange Discharge. 30 GPM (Gallons Per Minute) Max Flow, Heads to 41 ft., 75 PSI Max Pressure, and 200°F Liquid Temperature.
| Discharge NPT (Inches) | 3/4" ANSI Class 150 Flange |
| Flange | ANSI Class 150 |

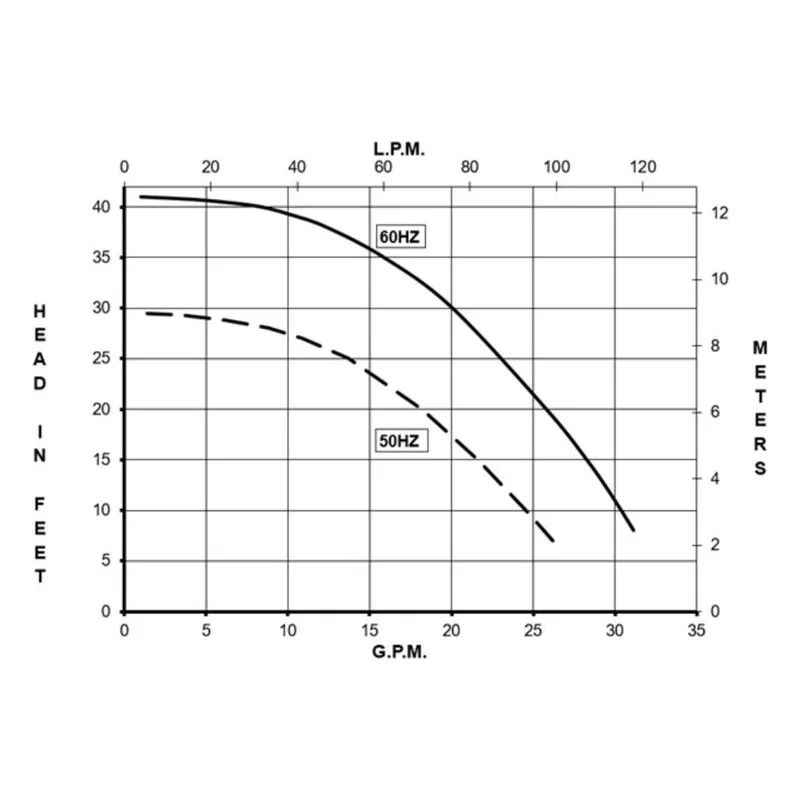

| Heads To (Feet) | 41 ft. (12.5 m) |
| Housing Material | Glass Filled Kynar |
| HP | 0.33 HP |
| Hz | 50/60 Hz |
| Impeller Material | Glass Filled Kynar |
| Includes | Conduit Box |
| KW | 0.25 kW |
| Liquid End Configuration | Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) |
| Liquid Temperature | 200°F (93°C) |
| Max Amps | 5.3-2.55/2.65 A |
| Maximum Flow (GPM) | 30 GPM (114 LPM) |
| Maximum Pressure (PSI) | 75 PSI (5.2 Bar) |
| Model Number | Flanged TE-5.5K-MD |
| Motor | 0151-0019-1000 |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Motor Shaft Material | Ceramic |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | Flanged TE-5.5K-MD 1Ph 1/3HP |
| Speed (RPM) | 3450 RPM |
| Suction NPT (Inches) | 1" ANSI Class 150 Flange |
| Valve / Seat / O-Ring | Viton O-Ring |
| Voltage | 115-208/230V |
Series 5.5 Information
| Features & Benefits |
|---|
Max Flow: 30 GPM (102LPM 50HZ) |
Categories
Chemical Delivery / Processing
491 productsChemical Delivery / Transfer
530 productsCooling Water Systems
406 productsIndustrial Processes
369 productsMarine
422 productsRecirculation
452 productsRefrigeration & Air Conditioning
332 productsWashing / Cleaning Systems
181 products
| Type | Title | Link | |
|---|---|---|---|
March Pumps Series 5.5 Chemical Pumps Manual | View | ||
Repair Parts for 0151-0156-0100
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 0135-0180-1000 | Ships in | $0.85 | ||
 | 0151-0067-0100 | Ships in | $738.65 | ||
| 0153-0015-1000 | Ships in | $6.80 | ||
| 0155-0009-1000 | Ships in | $7.65 | ||
| 0153-0007-1000 | Ships in | $21.25 | ||
| 0151-0046-0300 | Ships in | $209.10 | ||
| 0151-0045-0100 | Ships in | $84.15 | ||
| 0151-0061-0200 | Ships in | $213.35 | ||
| 0151-0090-0100 | Ships in | $80.75 | ||
| 0155-0017-1000 | Ships in | $2.55 | ||
| 0155-0019-1000 | Ships in | $0.85 | ||
 | 0151-0119-1000 | Ships in | $582.25 | ||
