0151-0114-0200

Home
March
Series 5.5
0151-0114-0200

Image shown may not be actual product

0151-0114-0200

0 reviews

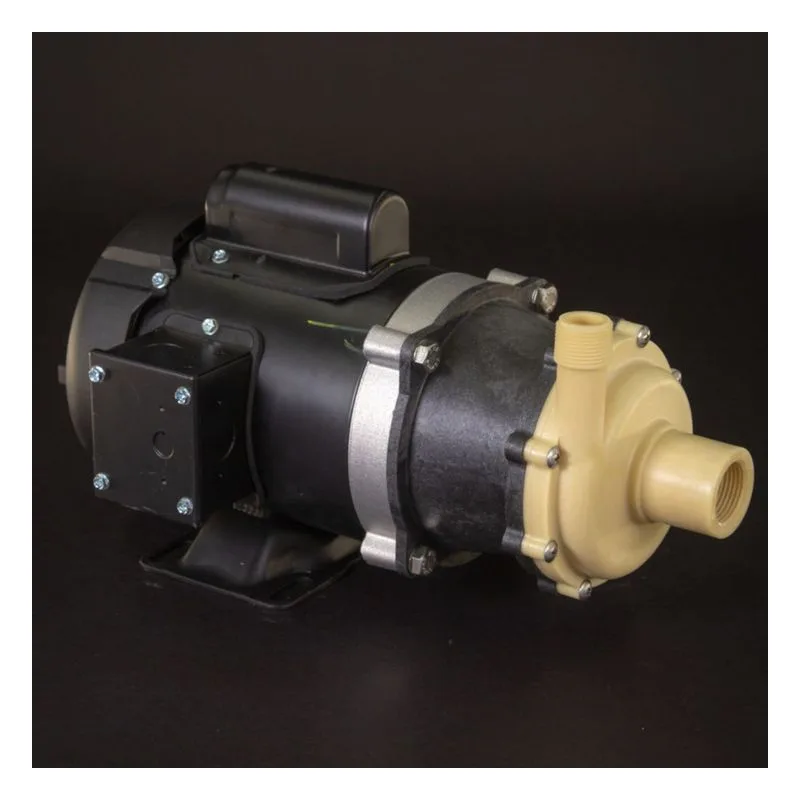

March Pumps 0151-0114-0200, Series 5.5 Sealless Centrifugal Magnetic Drive Chemical Pump, Model: TE-5.5K-MD. 1 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - Explosion Proof Motor. 1" FNPT Suction, 3/4" MNPT Discharge. Materials: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers).

$2,871.44

Best Price Guarantee!
574PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0151-0114-0200 | Model #: TE-5.5K-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0151-0114-0200

Discharge NPT (Inches)	3/4" MNPT
Explosion Proof	Yes
Heads To (Feet)	41 Feet
HP	1
Hz	60
Maximum Flow (GPM)	30 GPM / 114 LPM
Maximum Working Pressure (PSIG)	75 psi (517 kPa)

Model Number	TE-5.5K-MD
Motor Enclosure Type	XP - Explosion Proof
Phase	3 Ph (Three Phase)
Quick Specs	TE-5.5K-MD XP 3Ph 1HP
Suction NPT (Inches)	1" FNPT
Voltage	230/460

Series 5.5 Information

Features & Benefits
Max Flow: 30 GPM (102LPM 50HZ) Max Head: 41 Feet (9M 50HZ) Available in Polypropylene, Kynar, and Stainless Steel 1PH 115V/230V or 3PH 230V/260V

Features & Benefits

Max Flow: 30 GPM (102LPM 50HZ)
Max Head: 41 Feet (9M 50HZ)
Available in Polypropylene, Kynar,
and Stainless Steel
1PH 115V/230V or 3PH 230V/260V

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March TE-5.5K-MD Series 5.5 Chemical Pump Manual (2022)		View

Repair Parts for 0151-0114-0200

	shipping	price
0135-0180-1000	Ships in	$0.85	Select item
0151-0044-1000	Ships in	$84.15	Select item
0153-0015-1000	Ships in	$6.80	Select item
0155-0009-1000	Ships in	$7.65	Select item
0153-0007-1000	Ships in	$21.25	Select item
0151-0046-0300	Ships in	$209.10	Select item
0151-0045-0100	Ships in	$84.15	Select item
0151-0061-0200	Ships in	$213.35	Select item
0151-0090-0100	Ships in	$80.75	Select item
0155-0017-1000	Ships in	$2.55	Select item
0155-0019-1000	Ships in	$0.85	Select item
0151-0070-0100	Ships in	$459.00	Select item
