0130-0138-0200

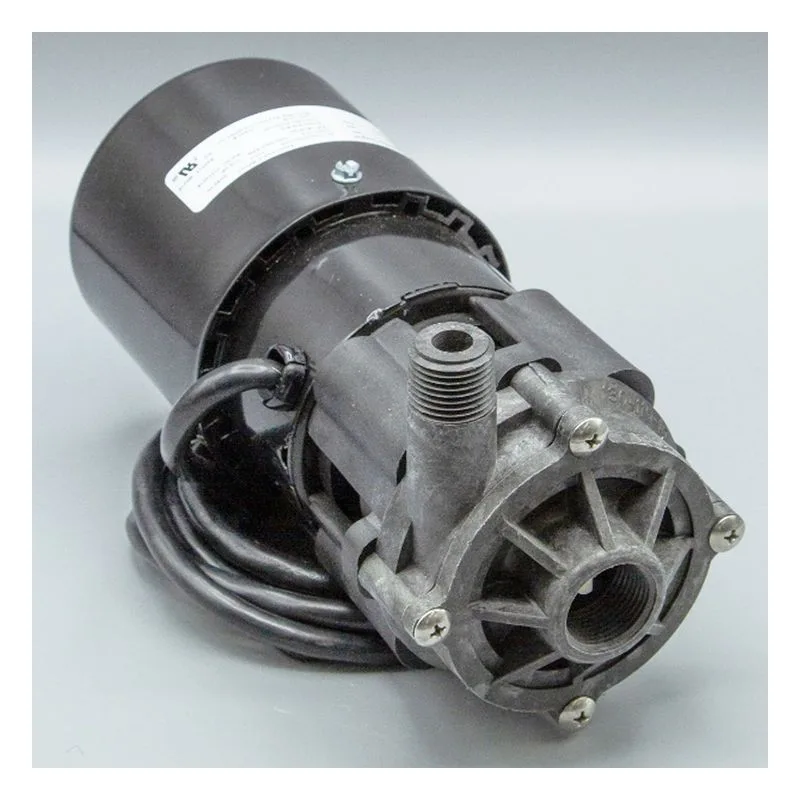

March Pump's industrial LC-3CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (or around 8PSI).  The LC-3CP-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Ceramic, and Ceramic Magnet.  When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).  The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-3CP-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-3CP-MD is suitable for your application, please contact March Pump.

• Max Flow 8.5 GPM 32.2 LPM 8.2 GPM 31 LPM
• Max Head 19 FT 5.8 M 14.1 FT 4.3 M
• Power .05 HP .037 KW .05 HP .037 KW
• Electrical 115V 50/60HZ or 230V 50/60HZ
• Submersible Yes
