0130-0103-0200
Image shown may not be actual product
0130-0103-0200

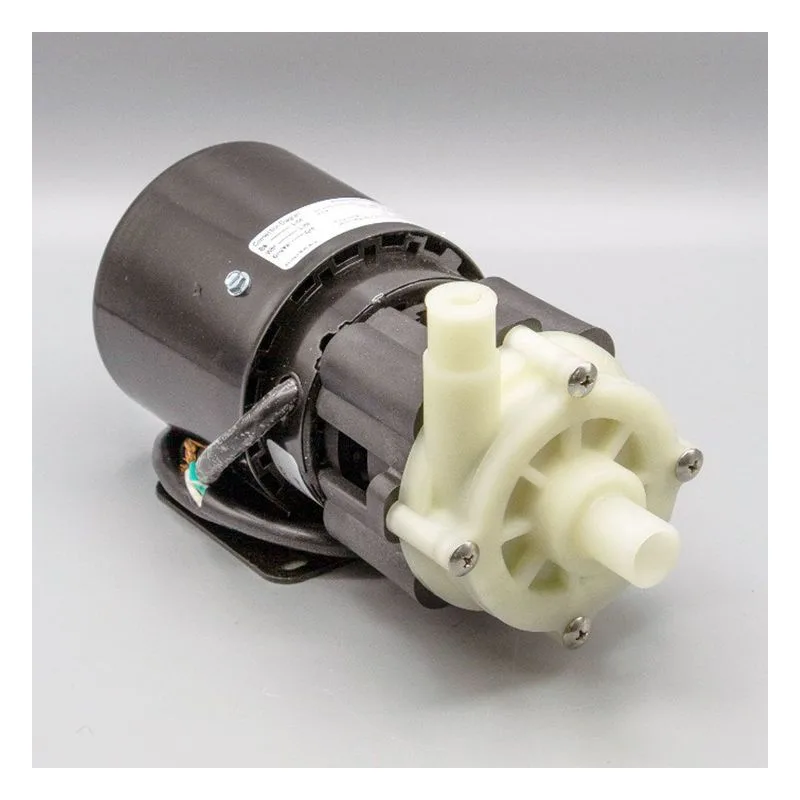

0130-0103-0200 March Pumps Series 3 Chemical Pump, Model AC-3AP-MD 230V. 0.06 HP, 230 Volts, 50/60 Hz, 1 Ph (Single Phase), Open Fan Cooled Motor Enclosure, 3/4" OD Suction, 1/2" OD Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet.
$647.68
- Best Price Guarantee!
- 129PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
0130-0103-0200
0130-0103-0200 March Pumps Series 3 Chemical Pump, Model AC-3AP-MD 230V. 0.06 HP, 230 Volts, 50/60 Hz, 1 Ph (Single Phase), Open Fan Cooled Motor Enclosure, 3/4" OD Suction, 1/2" OD Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet.
| Discharge NPT (Inches) | 1/2" OD |
| Heads To (Feet) | 20.5 Feet |
| HP | 0.06 |
| Hz | 50/60 |
| Maximum Flow (GPM) | 10 GPM / 37.9 LPM |
| Maximum Working Pressure (PSIG) | 50 psi (344 kPa) |
| Model Number | AC-3AP-MD 230V |
| Motor Enclosure Type | Open Fan Cooled |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | AC-3AP-MD |
| Suction NPT (Inches) | 3/4" OD |
| Voltage | 230 |
Series 3 Information
| General Description |
|---|
March Pump's industrial LC-3CP-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (or around 8PSI). The LC-3CP-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-3CP-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-3CP-MD is suitable for your application, please contact March Pump. |
| Features & Benefits |
|
| Type | Title | Link | |
|---|---|---|---|
March Pump Series Manual | View | ||
