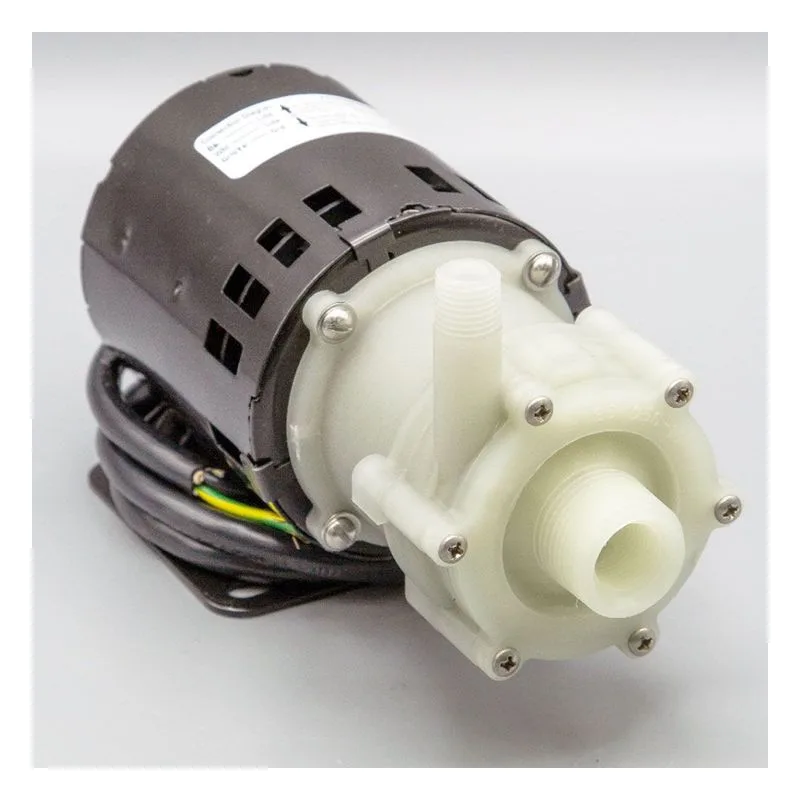

0125-0069-0100 March Pumps Series 2 Chemical Pump, Model AC-2CP-MD 115V. 0.025 HP, 115 Volts, 50/60 Hz, 1 Ph (Single Phase), Open Fan Cooled Motor Enclosure, 3/8" FPT & 3/4" MPT Suction, 1/4" MPT Discharge. Materials: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet.

$263.12

Best Price Guarantee!
52PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0125-0069-0100 | Model #: AC-2CP-MD 115V

Overview
Series Info
Reviews
Literature/Manuals

0125-0069-0100

Discharge NPT (Inches)	1/4" MPT
Heads To (Feet)	13 Feet
HP	0.025
Hz	50/60
Maximum Flow (GPM)	5.0 GPM / 18.9 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)
Model Number	AC-2CP-MD 115V

Motor Enclosure Type	Open Fan Cooled
Phase	1 Ph (Single Phase)
Quick Specs	AC-2CP-MD
Suction NPT (Inches)	3/8" FPT & 3/4" MPT
Voltage	115

Series 2 Information

Features & Benefits
Max Flow: 5 GPM (18.5 LPM 50HZ) Max Head: 13 Feet (2.7M 50HZ) 115 or 230V and DC Brushtype or DC Brushless Non-Submersible or Submersible 1PH 115V or 230V

Features & Benefits

Max Flow: 5 GPM (18.5 LPM 50HZ)
Max Head: 13 Feet (2.7M 50HZ)
115 or 230V and DC Brushtype or DC Brushless
Non-Submersible or Submersible
1PH 115V or 230V
