0115-0007-0100

0 reviews

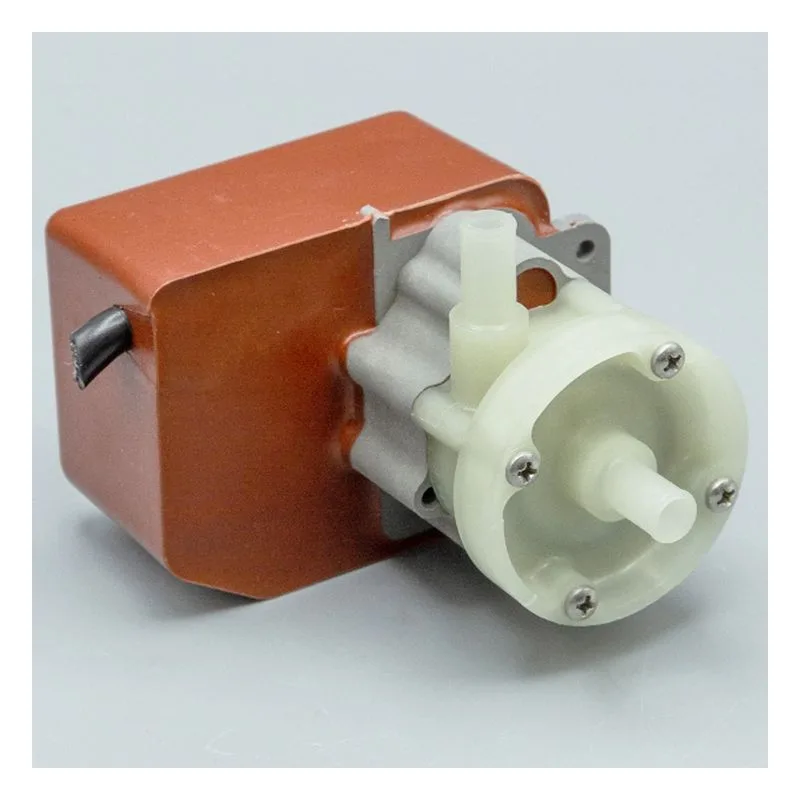

0115-0007-0100 March Pumps Series 1 Chemical Pump, Model 1A-MD-3/8 115V. 0.005 HP, 115 Volts, 50/60 Hz, 1 Ph (Single Phase), Open Air or Submersible. 3/8" OD Suction, 3/8" OD Discharge. Materials: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft).

$278.80

Best Price Guarantee!
55PumpPoints

Item: 0115-0007-0100 | Model #: 1A-MD-3/8 115V

Overview
Series Info
Reviews
Literature/Manuals

0115-0007-0100

Discharge NPT (Inches)	3/8" OD
Heads To (Feet)	4.6 Feet
HP	0.005
Hz	50/60
Maximum Flow (GPM)	2.3 GPM / 8.7 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)
Model Number	1A-MD-3/8 115V

Phase	1 Ph (Single Phase)
Product Notes	Open Air or Submersible
Quick Specs	1A-MD-3/8
Suction NPT (Inches)	3/8" OD
Voltage	115

Series 1 Information

Features & Benefits
Max Flow: 3GPM (8.7LPM 50HZ) Max Head: 4.6 Feet (1M 50HZ) Non-Submersible or Submersible 1PH 115V or 230V
Series 1 Chemical Pumps
1A-MD-3/8 Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 2.3 GPM 7.5 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 50/60HZ or 230V 50/60HZ Submersible: Yes 1A-MD-1/2 Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 3.0 GPM 9.0 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 50/60HZ or 230V 50/60HZ Submersible: Yes 1C-MD Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 3.0 GPM 9.0 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 50/60HZ or 230V 50/60HZ Submersible: Yes 1U-MD Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 3.0 GPM 9.0 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 50/60HZ or 230V 50/60HZ Submersible: Yes AC-1A-MD-3/8 Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 2.3 GPM 7.5 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 60HZ or 230V 50/60HZ AC-1A-MD-1/2 Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow : 3.0 GPM 9.0 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 60HZ or 230V 50/60HZ AC-1C-MD Mag Drive Pump Unit System: 60Hz / 50Hz Max Flow: 3.0 GPM 9.0 LPM Max Head: 4.6 FT 1.0 M Power: 0.005 HP 0.003 KW Electrical: 115V 60HZ or 230V 50/60H

Features & Benefits

Max Flow: 3GPM (8.7LPM 50HZ)
Max Head: 4.6 Feet (1M 50HZ)
Non-Submersible or Submersible
1PH 115V or 230V

Series 1 Chemical Pumps

1A-MD-3/8 Mag Drive Pump
Unit System:	60Hz / 50Hz
Max Flow: 2.3 GPM 7.5 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1A-MD-1/2 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1C-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

1U-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 50/60HZ or 230V 50/60HZ
Submersible: Yes

AC-1A-MD-3/8 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 2.3 GPM 7.5 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60HZ

AC-1A-MD-1/2 Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow	: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60HZ

AC-1C-MD Mag Drive Pump
Unit System: 60Hz / 50Hz
Max Flow: 3.0 GPM 9.0 LPM
Max Head: 4.6 FT 1.0 M
Power: 0.005 HP 0.003 KW
Electrical: 115V 60HZ or 230V 50/60H
