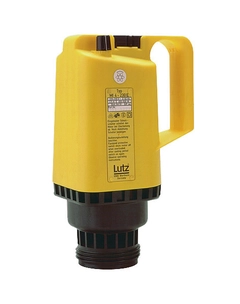

Lutz 0030-002 Drum Pump Motor B36

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0030-002

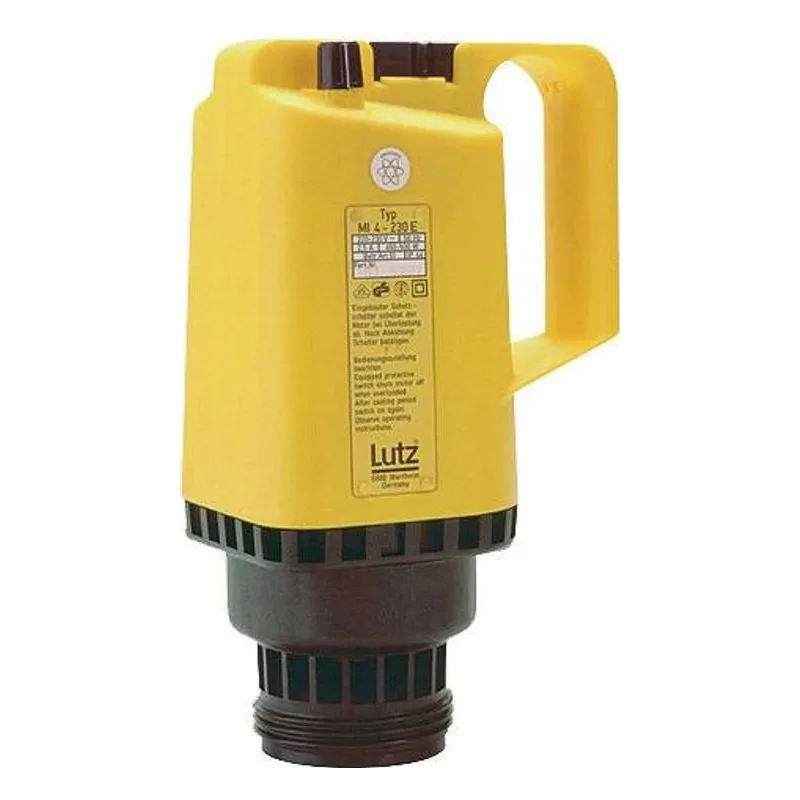

Lutz Drum Pump Motor 0030-002, B36 MI4 110V Open Drip Proof

HP	0.85
Hz	60
Motor	Universal motor
Motor Enclosure Type	ODP - Open Drip Proof

Quick Specs	B36 MI4 110V
Voltage	120

Pump Motors Information

Features & Benefits
Lutz Drum Pump Motors B28 Universal Motor Power - 800 watt/1.07 HP Voltage - 120V Frequency - 860 Hz Enclosure - open drip proof, 16' cord and plug B36 /MI 4 \| B36-SC / MI 4E Speed Control, Universal Motor Power - 640 watt/0.85 HP Voltage - 120V (230V available) Frequency - 60 Hz Enclosure - open drip proof, 16' cord and plug B 55-T-5 /MA II 5 \| B55-T-7 / MA II 7, Universal Motor Power - 510 watt/0.68 HP \| 700 watt/0.93 HP Voltage - 120V (230V available) Frequency - 60 Hz Enclosure - TEFC, 16' cord and plug MD-1 (Ex) / MD-2 (Ex), Compressed Air Motors (EN 50 014) Power - 400 watt / 0.54 HP Operating Pressure - 87 PSI Air Consumption - 32 CFM 4GT (Non-Ex), Compressed Air Motor Power - 220 watt / 0.3 HP Operating Pressure - 87 PSI Air Consumption - 14 CFM Silver Star ME I 6 (Ex), Universal Motor Power - 0.5 HP Voltage - 120V Frequency - 60 Hz MA II 3-12V, Universal Motor Power - 260 watt / 0.35 HP Voltage - 12V DC Enclosure - TEFC, 10' cord with alligator clamps B4 / GT, Continuous Duty, Three Phase Gear Motor Power - 750 watt / 1.0 HP Voltage - 230/440V Frequency - 60 Hz Enclosure - TEFC or EX

Features & Benefits

Lutz Drum Pump Motors

B28 Universal Motor
Power - 800 watt/1.07 HP
Voltage - 120V
Frequency - 860 Hz
Enclosure - open drip proof, 16' cord and plug

B36 /MI 4 | B36-SC / MI 4E Speed Control, Universal Motor
Power - 640 watt/0.85 HP
Voltage - 120V (230V available)
Frequency - 60 Hz
Enclosure - open drip proof, 16' cord and plug

B 55-T-5 /MA II 5 | B55-T-7 / MA II 7, Universal Motor
Power - 510 watt/0.68 HP | 700 watt/0.93 HP
Voltage - 120V (230V available)
Frequency - 60 Hz
Enclosure - TEFC, 16' cord and plug

MD-1 (Ex) / MD-2 (Ex), Compressed Air Motors (EN 50 014)
Power - 400 watt / 0.54 HP
Operating Pressure - 87 PSI
Air Consumption - 32 CFM

4GT (Non-Ex), Compressed Air Motor
Power - 220 watt / 0.3 HP
Operating Pressure - 87 PSI
Air Consumption - 14 CFM

Silver Star ME I 6 (Ex), Universal Motor
Power - 0.5 HP
Voltage - 120V
Frequency - 60 Hz

MA II 3-12V, Universal Motor
Power - 260 watt / 0.35 HP
Voltage - 12V DC
Enclosure - TEFC, 10' cord with alligator clamps

B4 / GT, Continuous Duty, Three Phase Gear Motor
Power - 750 watt / 1.0 HP
Voltage - 230/440V
Frequency - 60 Hz
Enclosure - TEFC or EX
