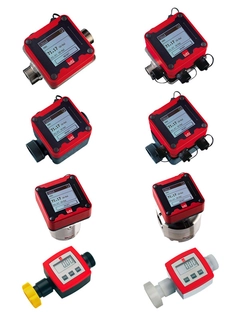

Lutz Flow Meters - TR90 PVDF FLOW METER.

Call for Pricing

Best Price Guarantee!

Item: 0213-042

Overview
Series Info
Reviews
Literature/Manuals

0213-042

Lutz Flow Meters - TR90 PVDF FLOW METER.

Quick Specs

TR90 PVDF FLOW METER

Flow Meters Information

Features & Benefits
Lutz Flow Meter Series TR Easy handling, compact built and a quick assemble to all drum and container pumps: The Lutz flow meter TR in PP or PVDF. A manageable meter which you can count on in all situations. The flow meter TR measures thin-bodied, non-inflammable liquids accurately, fast and efficiently. Proven radial turbine technology, Can be combined with all drum and container pumps, Wide measuring range, Also for low flow rates, For thin-bodied, non-inflammable liquids, Display of partial and total volumes, Sub-total can be reset, Durable lithium battery, Easy calibration, Available in Polypropylene (PP) and Polyvinylidenfluoride (PVDF). Flow meter TR 90 for non-flammable liquids Liquid examples: Glycol, ferric (III) chloride, hydrochloric acid, phosphoric acid, chlorine solution, nitric acid, sulfuric acid, etc.. Features: For measurement of neutral liquids, acids and alkalis and many other non-flammable fluids, Turbine wheel principle, For thin-bodied liquids, Display of partial and total volumes, Suitable for flow rates from 1.3 GPM up to 23.8 GPM (5 l/min up to 90 l/min), Mobile installed on a drum pump or with nozzle connection Types: TR 90 PP for neutral and corrosive liquids \| TR 90 PVDF for highly aggressive liquids Lutz Flow Meter Series TS The first mobile flow meter with touch screen display will convince you with its simple requirements-oriented display and usability, multilingual interface and compact design. With plain-text instructions, system reports and help texts, as well as monitoring functions, its user controls practically eliminate errors. Manual operation is just as possible as external control. Nutating disc principle, Optionally with or without volume preselection, Touch-screen display with multi-lingual operating menu, Comprehensive monitoring and safety functions, Unmistakeable plug-type connectors, Communication module for external control / data evaluation via standard interfaces, Available in plastic (PPO, PPS) or metal (SS, HC). Flow meter TS with volume preselection for non-flammable liquids Liquid examples: Water, diesel, fuel oil, hydraulic oil, hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, etc. Features: Suitable for neutral liquids, acids and alkalis and many other non-flammable fluids, Nutating disc principle, Mobile on a drum pump or in stationary process applications, For thin-bodied and viscous liquids, Touch-screen display with multi-lingual operating menu, Suitable for flow rates from 2.6 GMP up to 31.7 GPM (10 l/min up to 120 l/min), Available in plastic (PPO) or metal (SS, HC), Unmistakeable plug-type connectors. Lutz Flow Meter Series HDO Well-tried and recognised: The modular flow meter system HDO is particularly suited for industrial measurement of flow volumes of aqueous to highly viscous liquids – even at high pressures and temperatures. A significant feature of this series is the large measuring range at an almost constant measurement error limit. In addition, the flow meters operate independently of turbulences, vortexes and other disturbances in the flow profile. Proven and reliable oval gear principle, For high flow volumes, temperatures and pressures, For thin bodied to highly viscous liquids, Optionally with or without volume preselection, Touch-screen display with multi-lingual operating menu, High accuracy, Low frictional resistance, Comprehensive monitoring and safety functions, Available in plastic (PPS) or metal (Aluminium, Stainless steel).

Features & Benefits

Lutz Flow Meter Series TR
Easy handling, compact built and a quick assemble to all drum and container pumps: The Lutz flow meter TR in PP or PVDF. A manageable meter which you can count on in all situations. The flow meter TR measures thin-bodied, non-inflammable liquids accurately, fast and efficiently. Proven radial turbine technology, Can be combined with all drum and container pumps, Wide measuring range, Also for low flow rates, For thin-bodied, non-inflammable liquids, Display of partial and total volumes, Sub-total can be reset, Durable lithium battery, Easy calibration, Available in Polypropylene (PP) and Polyvinylidenfluoride (PVDF).

Flow meter TR 90 for non-flammable liquids
Liquid examples: Glycol, ferric (III) chloride, hydrochloric acid, phosphoric acid, chlorine solution, nitric acid, sulfuric acid, etc..
Features: For measurement of neutral liquids, acids and alkalis and many other non-flammable fluids, Turbine wheel principle, For thin-bodied liquids, Display of partial and total volumes, Suitable for flow rates from 1.3 GPM up to 23.8 GPM (5 l/min up to 90 l/min), Mobile installed on a drum pump or with nozzle connection

Types: TR 90 PP for neutral and corrosive liquids | TR 90 PVDF for highly aggressive liquids

Lutz Flow Meter Series TS
The first mobile flow meter with touch screen display will convince you with its simple requirements-oriented display and usability, multilingual interface and compact design. With plain-text instructions, system reports and help texts, as well as monitoring functions, its user controls practically eliminate errors. Manual operation is just as possible as external control. Nutating disc principle, Optionally with or without volume preselection, Touch-screen display with multi-lingual operating menu, Comprehensive monitoring and safety functions, Unmistakeable plug-type connectors, Communication module for external control / data evaluation via standard interfaces, Available in plastic (PPO, PPS) or metal (SS, HC).

Flow meter TS with volume preselection for non-flammable liquids
Liquid examples: Water, diesel, fuel oil, hydraulic oil, hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, etc.
Features: Suitable for neutral liquids, acids and alkalis and many other non-flammable fluids, Nutating disc principle, Mobile on a drum pump or in stationary process applications, For thin-bodied and viscous liquids, Touch-screen display with multi-lingual operating menu, Suitable for flow rates from 2.6 GMP up to 31.7 GPM (10 l/min up to 120 l/min), Available in plastic (PPO) or metal (SS, HC), Unmistakeable plug-type connectors.

Lutz Flow Meter Series HDO
Well-tried and recognised: The modular flow meter system HDO is particularly suited for industrial measurement of flow volumes of aqueous to highly viscous liquids – even at high pressures and temperatures. A significant feature of this series is the large measuring range at an almost constant measurement error limit. In addition, the flow meters operate independently of turbulences, vortexes and other disturbances in the flow profile. Proven and reliable oval gear principle, For high flow volumes, temperatures and pressures, For thin bodied to highly viscous liquids, Optionally with or without volume preselection, Touch-screen display with multi-lingual operating menu, High accuracy, Low frictional resistance, Comprehensive monitoring and safety functions, Available in plastic (PPS) or metal (Aluminium, Stainless steel).
