LJCGI-C3/8

Image shown may not be actual product

LJCGI-C3/8

0 reviews

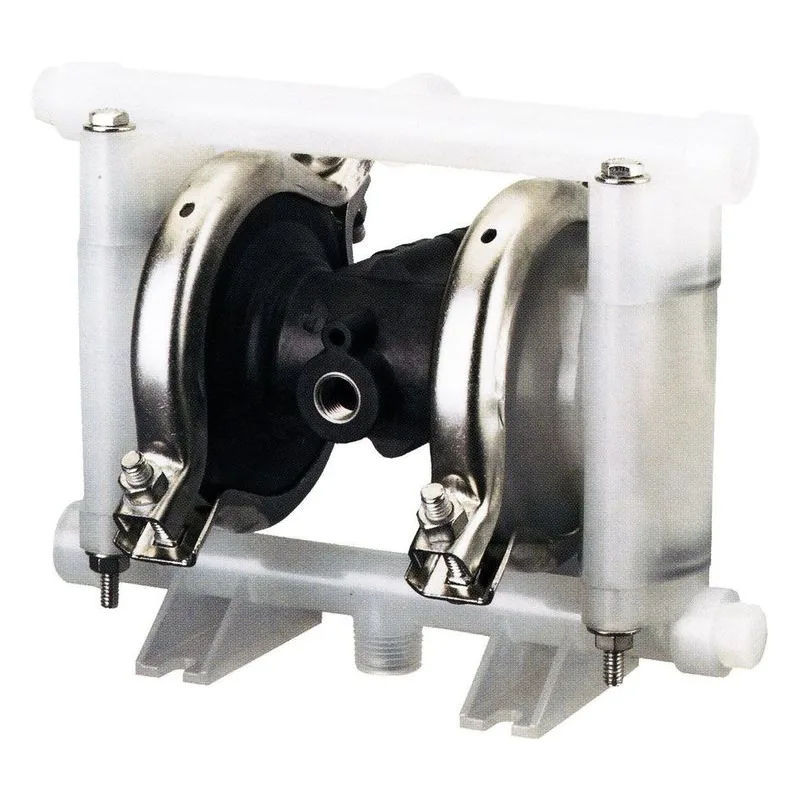

Lutz-Jesco LJCGI-C3/8 3/8" Plastic Clamped AIRTRAN Air Operated Double Diaphragm AODD Pump. Conductive Nylon Fluid Chambers, Nitrile O-Rings & Valve/Balls, Geolast Diaphragms. 3/8" NPT Connections, 0 - 9 GPM, passes up to 1/16" (1.6mm) solids.

$856.00

Best Price Guarantee!
171PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: LJCGI-C3/8

Overview
Series Info
Reviews
Literature/Manuals

LJCGI-C3/8

Air Inlet	1/4" FNPT
Build	Clamped
Configuration	^
Connection Type	NPT
Diaphragm	Geolast
Discharge NPT (Inches)	3/8"
Flow Range	0 - 9 GPM
Material	Conductive Nylon Fluid Chambers
Max Suction Lift	10 Feet Dry Lift
Model Series	3/8" Plastic Clamped

Other Factors	SS Fasteners
Product Notes	Chemical recirculation and feed, liquids with solid particles, e.g. paints and lacquers, electroplating, etc.
Quick Specs	Conductive Nylon/Geolast/Nitrile
Size	3/8"
Solids (Inches)	1/16" (1.6mm)
Suction NPT (Inches)	3/8"
Type	Plastic
Valve Balls	Nitrile
Valve / Seat / O-Ring	Nitrile O-Rings

Lutz JESCO AIRTRAN Diaphragm Pumps Information

LJ 1/4”
For the laboratory sector, small plants, requirements with small delivery volume at relatively high pressure.
Delivery rate: up to 4.3 GPM
Delivery head: up to 100 PSI
Materials: PP, PVDF, Nylon

LJ 3/8”
Ideal for inks, paints, adhesives, waste oil, coolant recycling, and other specialized applications.
Delivery rate: up to 9 GPM
Delivery head: up to 120 PSI Materials: PP, PVDF, Nylon

LJ 1/2”
200-l-drum pumping, ink recirculation and feed, chemicals, solvents, acids, soap dispensing.
Delivery rate: up to 14 GPM Delivery head:  up to 120 PSI
Materials:  PP, PVDF, Nylon, Aluminum, Stainless Steel

LJ 1”
Drum and small tank transfer, pickling solutions, chemical feed.
Delivery rate: up to 48 GPM - metallic up to 41 GPM - plastic
Delivery head: up to 120 PSI
Materials: PP, PVDF, Nylon, Aluminum, Stainless Steel

LJ 1 1/2”
Filter press, tank cleaning systems, pigments and resins.
Delivery rate: up to 115 GPM - metallic up to 130 GPM - plastic
Delivery head: up to 120 PSI
Materials: PP, PVDF, Aluminum, Stainless Steel Size

LJ 2”
Paint, latex, ceramic slip, slurries, polymers, tank car fill and empty, foods.
Delivery rate: up to 190 GPM - metallic up to 180 GPM - plastic
Delivery head: up to 120 PSI
Materials: PP, PVDF, Aluminum, Stainless Steel

LJ 3”
Paint, latex, ceramic slip, slurries, polymers, tank car fill and empty.
Delivery rate: up to 255 GPM
Delivery head: up to 120 PSI
Materials: Aluminum
