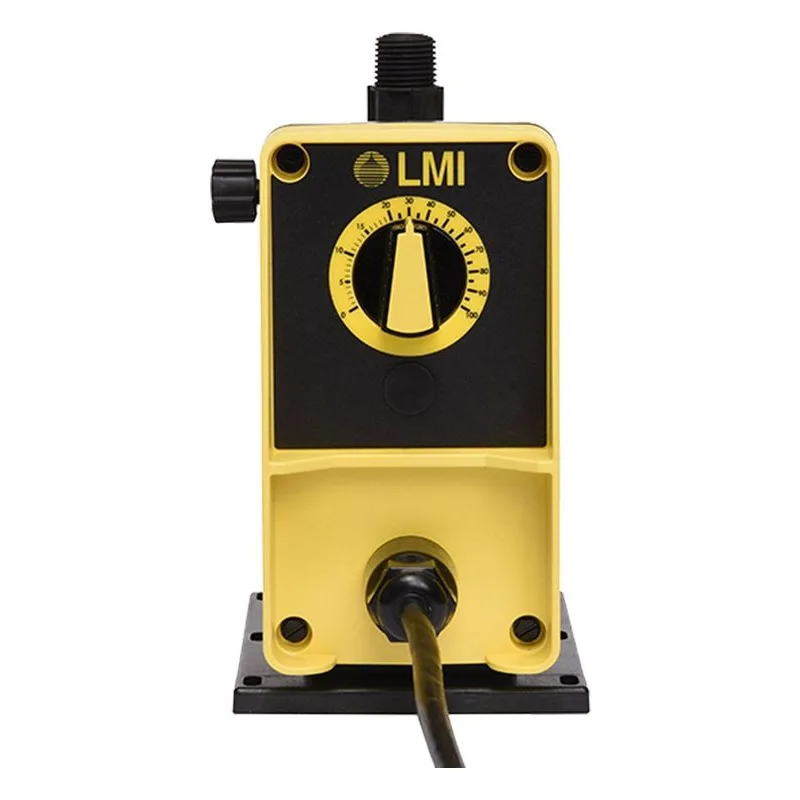

Image shown may not be actual product

PD043-822SP

0 reviews

LMI Pumps PD043-822SP Series PD Solenoid Chemical Metering Pump. 0.68 GPH, 250 PSI (17.0 Bar) Maximum Pressure, 50/60 Hz, 115/230V, DIN Plug, CE. Manual Control, FastPrime™ Molded PVDF/PVDF Head & Fittings, Ceramic Valve Balls, Polyprel® Valve Seat & O-Ring. Double-Ball Check Valve, PE 1/4" OD Suction/Discharge Connections, an Ingersoll Rand Brand.

$1,007.00

Best Price Guarantee!
201PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD043-822SP

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD043-822SP

Base Model Number	PDx4
Connections / Discharge (Inches)	PE 1/4" OD
Enclusure Rating	NEMA 4X/IP-65
Flow Control	Manual Control
Head / Fittings	PVDF/PVDF
Head/Valve Type	FastPrime™ Molded
Hz	50/60 Hz
Includes	Tube Connection Hardware, Quick Start Guide, Suction/Discharge Tubing, Injection Check Valve, Foot Valve, Ceramic Weight
Liquid Temperature	14°F to 122°F (-10°C to 50°C)
Maximum Flow (GPD)	16.32 GPD
Maximum Flow (GPH)	0.68 GPH
Maximum Pressure (PSI)	250 PSI (17.0 Bar)
Maximum Strokes Per Minute	160 SPM

Model Series	PD04
Notes	Double-Ball Check Valve
Plug-In	DIN Plug, CE
Size	2
Temperature Range	14°F to 122°F (-10°C to 50°C)
Turn Down Ratio	200:1
Valve Balls	Ceramic
Valve / Seat / O-Ring	Polyprel® Valve Seat & O-Ring
Valve Type	4 Function Valve
Voltage	115/230V
Wet End Code	822SP

PD Series Information

Introducing the LMI PD Series Chemical Metering Pump
Designed to Last! The new standard in water treatment. This upgrade to LMI’s most popular pump series includes an improved drive design, all new electronics, and proven FASTPRIME™ liquid ends. Available in Manual or Enhanced control models, the PD Series pump fits seamlessly into your process control application. Trusted by water treatment professionals for more than a generation, the PD Series chemical metering pump will continue to earn your trust for years to come.
Manual Mode (PD0)
The Manual model offers straightforward control without the need for tedious calculations. Its split-scale dial ensures precision, even at lower flow rates. The Enhanced model offers external control and a large graphical display to provide intuitive access to advanced features such as calibration assist, system and user totalizers, the new STAYPRIME™ degassing technology, and more
Features & Benefits
Shared drive platform with universal 115-230V, 50/60 Hz power supply. Flows from 2 GPH (7.57 LPH) up to 450 PSI (30.6 BAR). Simplified capacity control with constant stroke length to main calibration across the adjustable range. Advanced electronics with dynamic compensation for temperat voltage conditions. FastPrime™ liquid ends (standard) that allow fast and easy priming with integrated bleed valve. AutoPrime™ liquid ends (optional), designed specifically for off liquids (See page 4 for performance specifications). Rugged construction with NEMA 4X/IP 65 housing for the harshest environments and outdoor use. Compact footprint for efficient use of space in process applica OEM configuration. Agency certifications - NSF 61 and 50 (pending), ETL, CE. Built on decades of experience and fully backed by LMI’s two warranty.
Enhanced Functionality (PD7)
2.4” Color LCD - Intuitive navigation allows you to configure and operate with ease – view status and alerts from a distance to confirm safe operation. External Control Inputs - Automate your process with pulse pacing, remote start/stop, and tank level indication – ideal for proportional dosing. Calibration Assist - Simply draw from a column and adjust the estimated value on-screen to the measured actual – calibration is that easy. System & User Totalizers - An odometer for your pump that logs pump strokes, estimated volume, and power cycles – confirm pump operation between visits. StayPrime™ Degassing Technology - Automates the priming cycle after a period of idle pump time to ensure prime.
