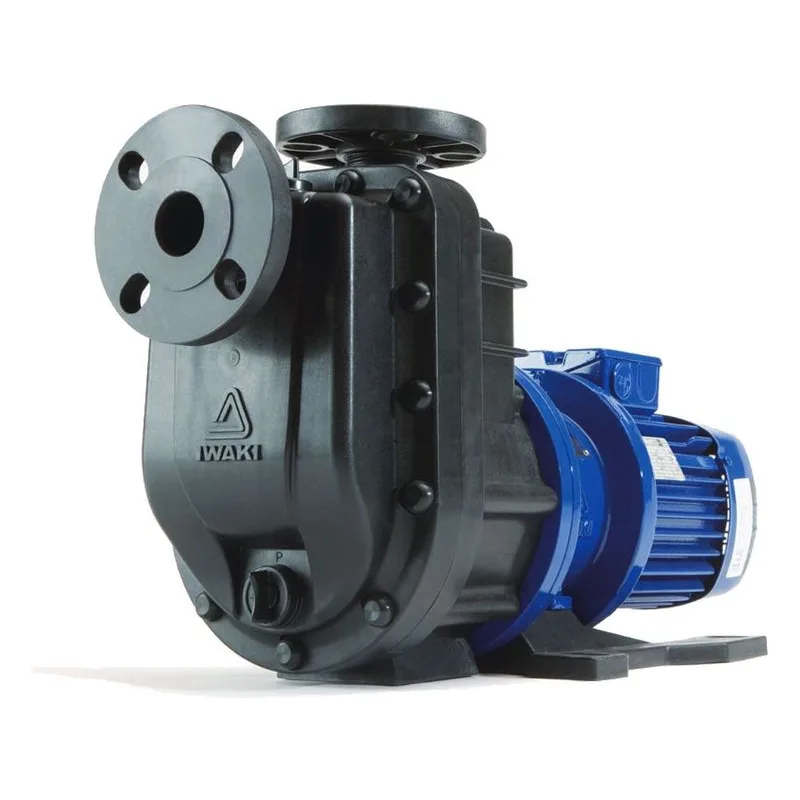

Image shown may not be actual product
SMX-545CAEXU
Iwaki America SMX-545CAEXU SMX Series Self-Priming Magnetic Drive Pump. GFR-PP (Glass-Fiber Reinforced polypropylene) Casing & 60Hz Impeller, Carbon Bearing, High Purity Alumina Ceramic Liner Ring & Spindle, EPDM O-Rings, EPDM Gasket. 2" Suction, 1-1/2" Discharge Flanged Connections, 184TC NEMA C-Face Flange Mount, Less Motor.
$2,738.19
- Best Price Guarantee!
- 547PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
SMX-545CAEXU
Iwaki America SMX-545CAEXU SMX Series Self-Priming Magnetic Drive Pump. GFR-PP (Glass-Fiber Reinforced polypropylene) Casing & 60Hz Impeller, Carbon Bearing, High Purity Alumina Ceramic Liner Ring & Spindle, EPDM O-Rings, EPDM Gasket. 2" Suction, 1-1/2" Discharge Flanged Connections, 184TC NEMA C-Face Flange Mount, Less Motor.
| Bearing Material | Carbon |
| Casing Material | GFR-PP (Glass-Fiber Reinforced polypropylene) |
| Connection Type | Flanged |
| Discharge NPT (Inches) | 1-1/2" |
| Gasket Material | EPDM |
| Heads To (Feet) | 119 Feet |
| HP | 5 |
| Impeller Code | X |
| Impeller Material | GFR-PP (Glass-Fiber Reinforced polypropylene) |
| Impeller Style | 60Hz |
| Material | GFR-PP (Glass-Fiber Reinforced polypropylene) |
| Maximum Flow (GPM) | 132 GPM |
| Maximum Pressure (PSI) | 62.37 psi |
| Model Series | SMX-54 |
| Motor | No Motor |
| Motor Enclosure Type | N/A |
| Motor Frame Size | 184TC |
| Motor Type | Less Motor |
| Other Factors | NEMA C-Face Flange Mount |
| Speed (RPM) | 3500 |
| Spindle Material | High Purity Alumina Ceramic |
| Suction NPT (Inches) | 2" |
| Temperature Range | 32-176 °F (0-80 °C) |
| Thrust Ring | High Purity Alumina Ceramic |
| Valve / Seat / O-Ring | EPDM |
