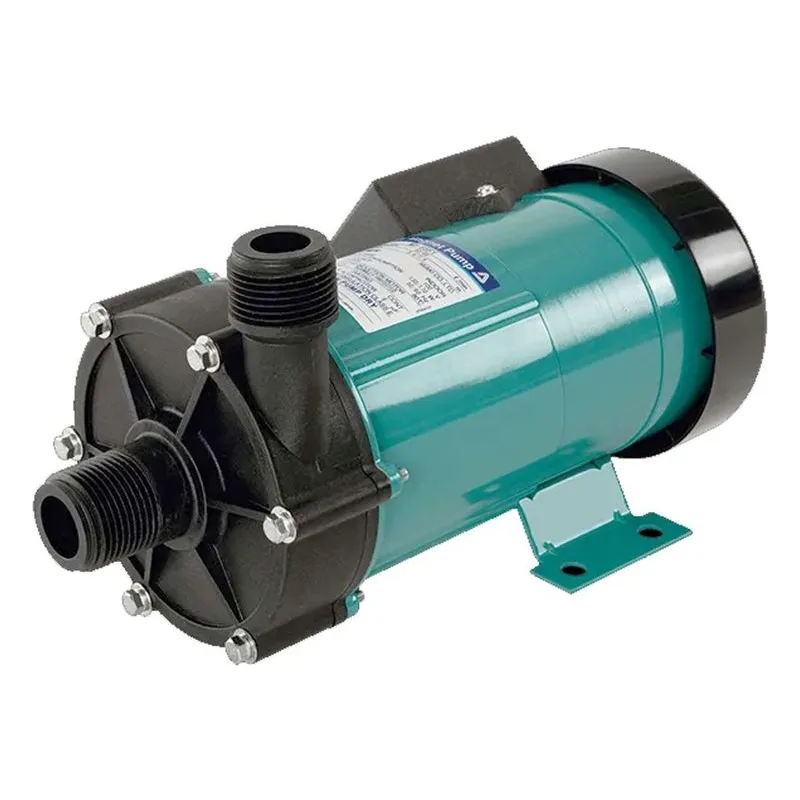

Image shown may not be actual product
MD-55FY-220
Iwaki America MD-55FY-220 MD-F Series Magnetic Drive Centrifugal Pump. CFR-ETFE (Carbon-Fiber Reinforced ETFE) Casing & Standard Flow Impeller, Silicon Carbide Bearing, Silicon Carbide Thrust Ring & Spindle, 1" NPT Connections. 1/8 HP, 220/240 Volt, 50/60 Hz, 3300 RPM, TEFC - Totally Enclosed Fan Cooled Iwaki Motor.
$1,088.14
- Best Price Guarantee!
- 217PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
MD-55FY-220
Iwaki America MD-55FY-220 MD-F Series Magnetic Drive Centrifugal Pump. CFR-ETFE (Carbon-Fiber Reinforced ETFE) Casing & Standard Flow Impeller, Silicon Carbide Bearing, Silicon Carbide Thrust Ring & Spindle, 1" NPT Connections. 1/8 HP, 220/240 Volt, 50/60 Hz, 3300 RPM, TEFC - Totally Enclosed Fan Cooled Iwaki Motor.
| Bearing Material | Silicon Carbide |
| Casing Material | CFR-ETFE (Carbon-Fiber Reinforced ETFE) |
| Connection Size | 1" |
| Connection Type | NPT |
| Heads To (Feet) | 25.6 Feet |
| HP | 1/8 |
| Hz | 50/60 |
| Impeller Code | Y |
| Impeller Material | CFR-ETFE (Carbon-Fiber Reinforced ETFE) |
| Impeller Style | Standard Flow |
| Material | ETFE |
| Maximum Flow (GPM) | 17.1 GPM |
| Maximum Pressure (PSI) | 21.3 psi |
| Model Series | MD-55FY |
| Motor | Iwaki Motor |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Spec. Gravity | 1.3 |
| Speed (RPM) | 3300 |
| Spindle Material | Silicon Carbide |
| Thrust Ring | Silicon Carbide |
| Valve / Seat / O-Ring | FKM |
| Voltage | 220/240 |
| Wet End Code | F |
