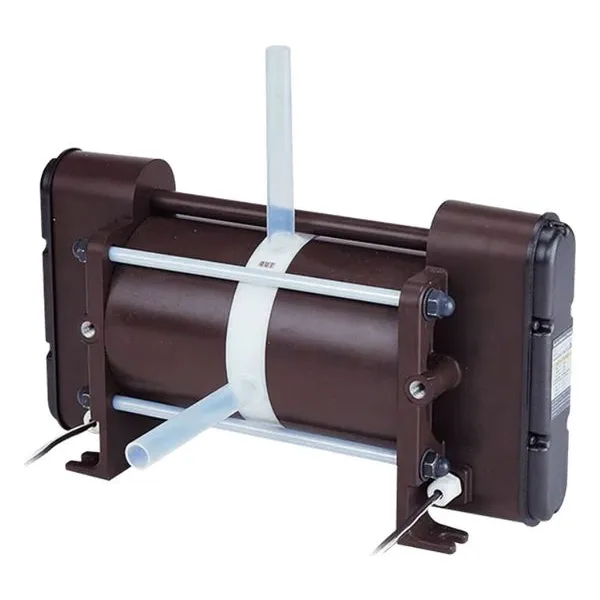

FF / FF-H Pneumatic Drive Bellows Pumps
Iwaki America’s FF Series pumps provide economical solutions for liquid applications at low to medium temperatures (5 to 100°C). The PTFE bellows and liquid end share the same proven design and manufacturing quality as the rest of the F Series family, ensuring high purity and long service life. All metal parts are fully encapsulated.
The FF-10/20CT1 model features a PVC housing coated with fluoroplastic, suitable for liquids up to 50°C, while the FF-10/20BT1 model, with its fluoroplastic encapsulated housing, can handle fluids up to 100°C. Integral PFA tube connections eliminate crevices or seams where particles could accumulate, and a wide variety of fittings can be easily attached.
Intelligent sensor technology is a standard feature of the FF series, optimizing pressure, stroke, and speed to maintain accurate chemical delivery and extend pump life. Leak detection ensures an immediate response to hazards.
Iwaki America’s renowned FF-H Series bellows pumps cover a full temperature range (20 to 180°C) and come in three sizes, meeting most wet bench recirculation pump needs. These pumps are designed for high purity and exceptional performance, manufactured in a class 10,000 clean room environment. The PTFE bellows, PFA valves, and welded tubing ensure maximum resistance to contamination. The intake and output fittings are integral to the fluid path, eliminating ridges where particulates could accumulate.
These sensor-driven pumps optimize pressure, stroke, and speed for unmatched reliability and service life. With no internal parts to maintain—no o-rings or gaskets requiring downtime and rebuilding—there is no scheduled maintenance. Plus, they come with a full two-year warranty!
Maximum Capacity: Up to 11.6 Gallons Per Minute (GPM)
The FF-10/20CT1 features a PVC housing coated with fluoroplastic, making it suitable for liquids up to 50°C. In contrast, the FF-10/20BT1, with its fluoroplastic encapsulated housing, can handle fluids up to 100°C. The liquid end parts are entirely made from fluororesin, avoiding contamination by not using rubber or metal. The bellows in the FF-H series are fully welded to the body, preventing leakage due to heat cycles.
All liquid ends are constructed from fluoropolymers, ensuring purity and corrosion resistance. The PTFE bellows are robust, designed for long-term continuous operation and superior high-pressure resistance. Integral PFA tube connections eliminate crevices or seams where particles could accumulate, and a variety of fittings can be easily attached.
Intelligent sensor technology is a standard feature in the FF series, optimizing pressure, stroke, and speed to maintain accurate chemical delivery and extend pump life. Leak detection ensures an immediate response to hazards, enhancing the reliability and safety of these pneumatic pumps.
High purity and exceptional performance are central to the design of the FF-H pumps. The PTFE bellows, PFA valves, and welded tubing provide maximum resistance to contamination.
FF / FF-H Pneumatic Drive Bellows Pumps Applications:
- Chemical
