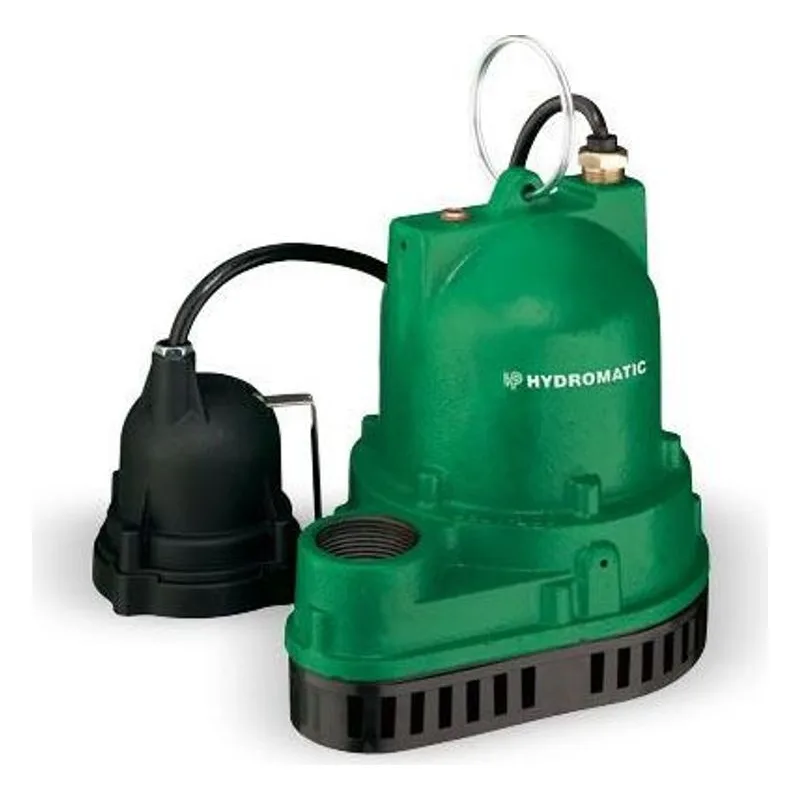

Hydromatic DA1 10 Submersible Sump Pump, 1-1/2" Discharge, 3/10 HP, 115 Volts, 1 Phase, 1550 RPM, 1/2" Solids Handling

Item: DA1 10 | Part #: 522480007

Hydromatic DA1 10 Submersible Sump Pump, 1-1/2" Discharge, 3/10 HP, 115 Volts, 1 Phase, 1550 RPM, 1/2" Solids Handling

Actual Weight	25
Built in Overload Protection	Yes
Connections / Discharge (Inches)	1-1/2"
Cord Length	10'
Float Switch Style	Diaphragm
HP	0.3
Material	Cast Iron
Part Number	522480007
Phase	1

Features & Benefits
WA DA VA Cast Iron Sump Pumps Key Features: Uses Carbon-Ceramic mechanical Shaft Seal, Single-row Ball-bearing Construction, Oil-Filled Motor with Automatic Reset Thermal Overload Protection, Piggyback Electrical Plug for Easy Maintenance and Replacement
General Description
WA DA VA Cast Iron Sump Pump General Specifications: HORSEPOWER: 3/10 HP MAXIMUM HEAD: 25' MAXIMUM CAPACITY: 48 GPM FLOW at 10' LIFT: 38 GPM SWITCH TYPE: Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch MIMINUM SUMP DIAMETER: 12" for Diaphragm or Vertical Switch Models; 18" for Tethered Switch Model DISCHARGE PIPE SIZE: 1-1⁄2” NPT MAXIMUM SOLIDS HANDLING SIZE: 1/2" AMP DRAW (full load): 8 Amps CORD LENGTH: 10' (20' Optional) VOLTAGE: 115v AC, 60 Hz MAXIMUM WATER TEMPERATURE: 120 degrees F (49 degrees C) MOTOR: 3/10 HP / Shaded Pole / 115v / 8 full-load amps
