• Hydromatic Submersible Pump VS50A1 10 Solids Handling Pumps

Image shown may not be actual product

Hydromatic

VS50A1 10

0 reviews

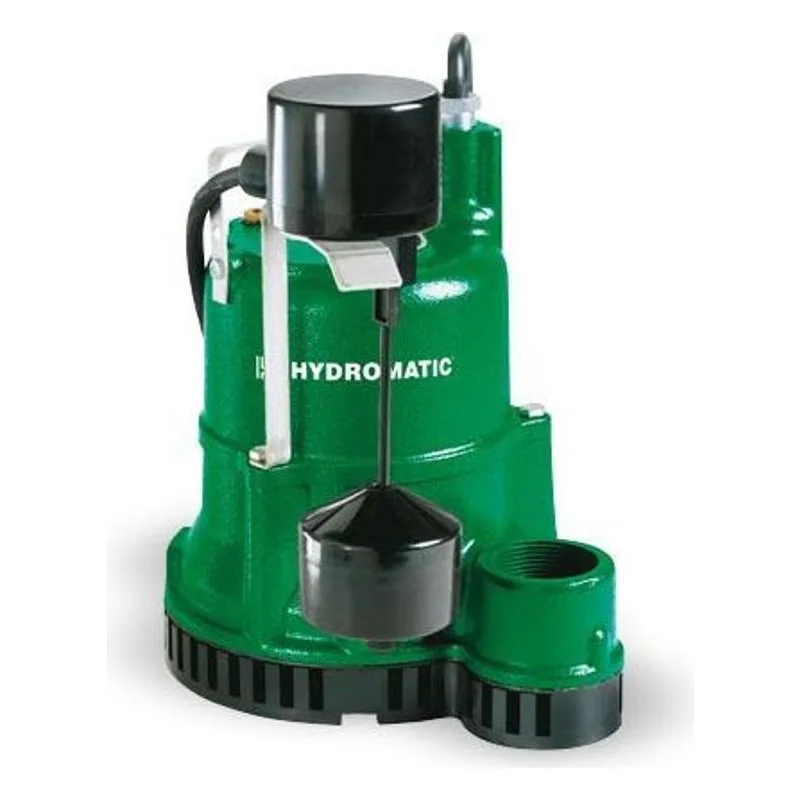

Hydromatic VS50A1 10 Submersible Sump Pump, 1-1/2" Discharge, 1/2 HP, 115 Volts, 1 Phase, 1550 RPM, 3/4" Solids Handling

Item: VS50A1 10 | Part #: 527070067
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals

VS50A1 10

Hydromatic VS50A1 10 Submersible Sump Pump, 1-1/2" Discharge, 1/2 HP, 115 Volts, 1 Phase, 1550 RPM, 3/4" Solids Handling

Actual Weight32
Built in Overload ProtectionYes
Connections / Discharge (Inches)1-1/2"
Cord Length10’
Float Switch StyleVertical Float
HP1/2
MaterialCast Iron
Part Number527070067
Phase1
Plug-InYes
Solids (Inches)3/4"
Speed (RPM)1550
Switch Turn Off4
Switch Turn On7-1/2
Voltage115
Wire/Cord Size16/3

SW SD VS Cast Iron Sump Pumps Information

Features & Benefits
SW SD VS Cast Iron Sump Pump Key Features: Carbon-Ceramic Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset Thermal Overload, Uses Single-Row Ball Bearing Construction, Piggyback Plug for Easy Maintenance and Replacement
General Description
SW SD VS Cast Iron Sump Pump General Specifications:
BODY CONSTRUCTION: Cast Iron & Engineered Thermoplastic
HORSEPOWER: Available in 1/3 or 1/2 HP
MAXIMUM HEAD: S_33: 26 ft. (7.9 m) / S_50: 29 ft. (8.8 m)
MAXIMUM CAPACITY: S_33: 48 GPM (3.0 LPS) / S_50: 65 GPM (4.1 LPS)
FLOW at 10' LIFT: S_33: 40 GPM / S_50: 54 GPM
SWITCH TYPE: Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
MINIMUM SUMP DIAMETER: S_33: 18" (457.2 mm) / S_50: 18" (457.2 mm)
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE: S_33: 3/8" (9.5mm) / 3/4" (19.1 mm)
AMP DRAW (full load): S_33: 10 Amps / S_50: 12 Amps
CORD LENGTH: 10', SJTW (20' optional)
VOLTAGE: 115v AC, 60 Hz
MAXIMUM WATER TEMPERATURE: 120°F (49°C)
IMPELLER CONSTRUCTION: Thermoplastic
