Image shown may not be actual product

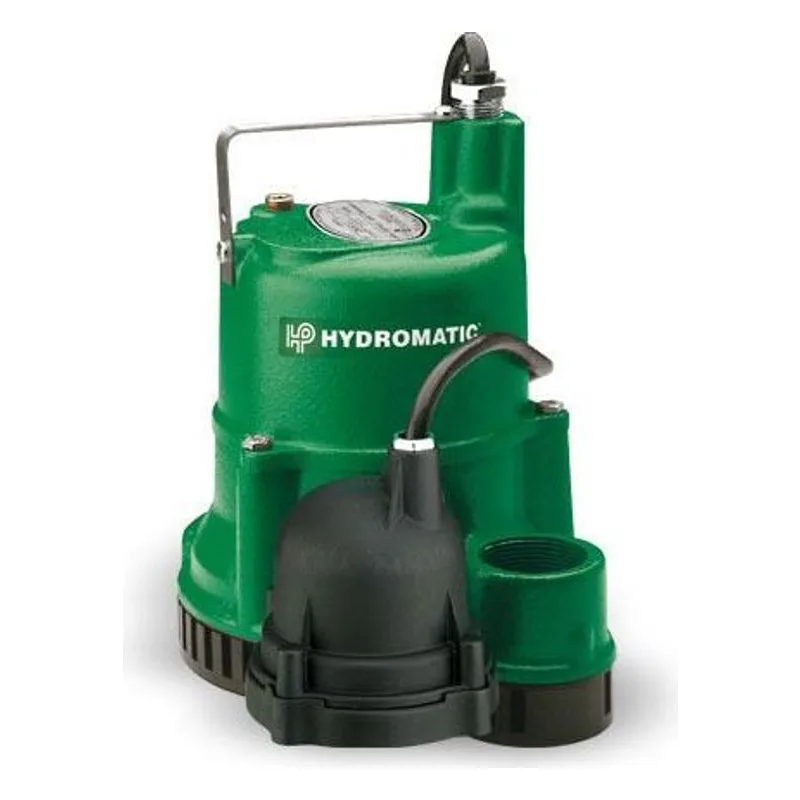

Hydromatic SD33A1 20 Submersible Sump Pump, 1-1/2" Discharge, 1/3 HP, 115 Volts, 1 Phase, 1550 RPM, 3/8" Solids Handling
Hydromatic SD33A1 20 Submersible Sump Pump, 1-1/2" Discharge, 1/3 HP, 115 Volts, 1 Phase, 1550 RPM, 3/8" Solids Handling
Actual Weight | 30 |
Built in Overload Protection | Yes |
Connections / Discharge (Inches) | 1-1/2" |
Cord Length | 20' |
Float Switch Style | Piggy Back Diaphragm |
HP | 0.33 |
Material | Cast Iron |
Part Number | 518100017 |
Phase | 1 |
Plug-In | Yes |
Solids (Inches) | 3/8" dia. (9.5 mm) |
Speed (RPM) | 1550 |
Switch Turn Off | 3-7/8 |
Switch Turn On | 7-3/8 |
Voltage | 115 |
Wire/Cord Size | 16/3 |
Features & Benefits |
---|
SW SD VS Cast Iron Sump Pump Key Features: Carbon-Ceramic Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset Thermal Overload, Uses Single-Row Ball Bearing Construction, Piggyback Plug for Easy Maintenance and Replacement |
General Description |
SW SD VS Cast Iron Sump Pump General Specifications: BODY CONSTRUCTION: Cast Iron & Engineered Thermoplastic HORSEPOWER: Available in 1/3 or 1/2 HP MAXIMUM HEAD: S_33: 26 ft. (7.9 m) / S_50: 29 ft. (8.8 m) MAXIMUM CAPACITY: S_33: 48 GPM (3.0 LPS) / S_50: 65 GPM (4.1 LPS) FLOW at 10' LIFT: S_33: 40 GPM / S_50: 54 GPM SWITCH TYPE: Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch MINIMUM SUMP DIAMETER: S_33: 18" (457.2 mm) / S_50: 18" (457.2 mm) DISCHARGE PIPE SIZE: 1-1/2" NPT MAXIMUM SOLIDS HANDLING SIZE: S_33: 3/8" (9.5mm) / 3/4" (19.1 mm) AMP DRAW (full load): S_33: 10 Amps / S_50: 12 Amps CORD LENGTH: 10', SJTW (20' optional) VOLTAGE: 115v AC, 60 Hz MAXIMUM WATER TEMPERATURE: 120°F (49°C) IMPELLER CONSTRUCTION: Thermoplastic |
