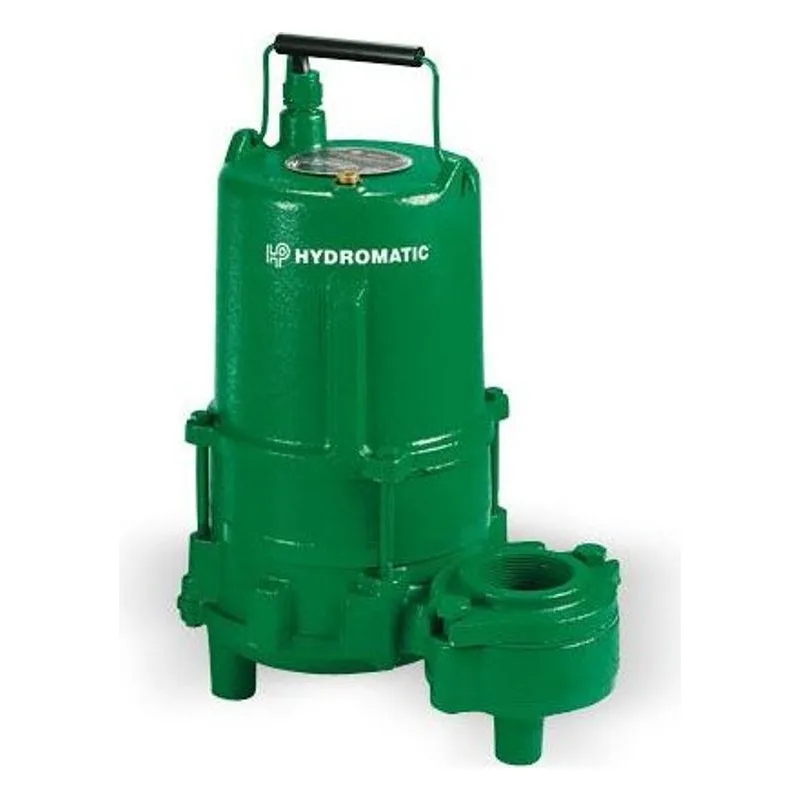

Image shown may not be actual product

SPD100MH2-2

0 reviews

Hydromatic SPD100MH2-2 SHEF Series Sump / Effluent Pump, 2" Discharge, 1 HP, 230 Volts, 1 Phase, 3450 RPM, 3/4" Solids Handling. Replaced by Identical Myers Pump Model MESPD100MH2-2, Engineering Number 28215D113. Manufactured by the same parent company, Pentair.

Call for Pricing

Best Price Guarantee!

Item: SPD100MH2-2 | Part #: 517490147

Overview
Series Info
Reviews
Literature/Manuals

SPD100MH2-2

Actual Weight	73
Built in Overload Protection	Yes
Connections / Discharge (Inches)	2"
Cord Length	20'
Float Switch Style	No
HP	1
Manufacturer	Pentiar
Material	Cast Iron
Model Number	MESPD100MH2-2
Part Number	517490147

Phase	1
Plug-In	No
Solids (Inches)	3/4" Max
Speed (RPM)	3450
Switch Turn Off	Manual
Switch Turn On	Manual
Voltage	230
Wire/Cord Size	16/4

SPD High Head Sump Effluent Pumps Information

Features & Benefits
SPD High Head Sump Effluent Pumps Key Features: Two (2) Carbon/Ceramic Type 21 Mechanical Seals Mounted in Tandem, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single-phase models), Upper & Lower Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement, Optional Seal Failure Probe Warns of Seal Leak, Capacitor Start for Increased Starting Torque (single-phase models)
General Description
SPD High Head Sump Effluent Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: 1/2 HP MAXIMUM HEAD: 50 ft. (15.2 m) MAXIMUM CAPACITY: 112 GPM (7.1 LPS) FLOW at 10' LIFT: 104 GPM SWITCH TYPE: Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 36" DISCHARGE PIPE SIZE: 2" NPT (3" NPT optional) MAXIMUM SOLIDS HANDLING SIZE: 3/4" AMP DRAW (full load): 14 amps on 115v / 7 amps on 230v 1-phase / 3.6 amps on 208v / 3.5 amps on 230v 3-phase / 1.8 amps on 460v / 1.9 amps on 575v CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: Available in 115v or 208v 1-phase, OR 230v, 460v, or 575v 3-phase 60 Hz MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) IMPELLER CONSTRUCTION: Class 30 Cast Iron, 2-vane
