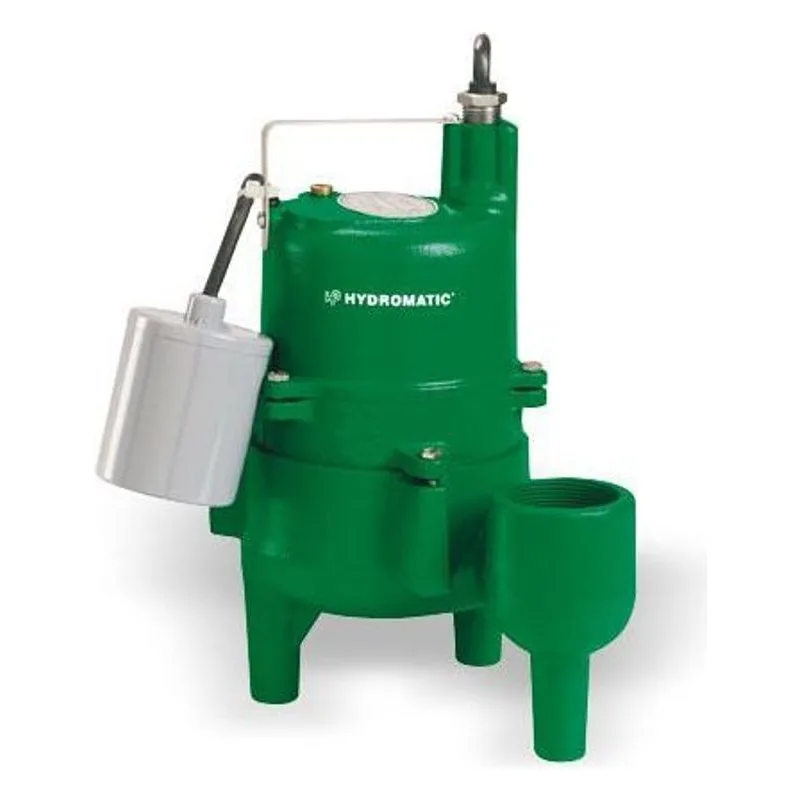

Hydromatic SKV40AW2 20 SKV Series Cast Iron Sewage Pump, 2" Discharge, 4/10 HP, 230 Volts, 1 Phase, 1750 RPM, 2" Solids Handling
Hydromatic SKV40AW2 20 SKV Series Cast Iron Sewage Pump, 2" Discharge, 4/10 HP, 230 Volts, 1 Phase, 1750 RPM, 2" Solids Handling
Actual Weight | 32 |
Built in Overload Protection | Yes |
Connections / Discharge (Inches) | 2" |
Cord Length | 20' |
Float Switch Style | Wide Angle |
HP | 0.4 |
Material | Cast Iron |
Part Number | 526111037 |
Phase | 1 |
Plug-In | Yes |
Solids (Inches) | 2" (50 mm) |
Speed (RPM) | 1750 |
Switch Turn Off | 6-1/2 |
Switch Turn On | 12-1/2 |
Voltage | 230 |
Wire/Cord Size | 16/3 |
Features & Benefits |
---|
SKV Sewage Pumps Key Features: Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset Thermal Overload Protection, Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement |
General Description |
SKV Sewage Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast iron HORSEPOWER: Available in 4/10 or 1/2 HP MAXIMUM HEAD: 22' MAXIMUM CAPACITY: 80 GPM FLOW at 10' LIFT: 80 GPM (Use with less than 10' of head not recommended) SWITCH TYPE: Wide-Angle Tethered Float or Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: Simplex: 18" / Duplex: 30" DISCHARGE PIPE SIZE: 2" NPT MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): SKV40: 12.6 amps on 115v / 6.4 amps on 230v / SKV50: 12 amps on 115v / 6 amps on 230v CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: available in 115v or 230v AC, 60 Hz MAXIMUM LIQUID TEMPERATURE: 140 F (60 C) MOTOR: 4/10 or 1/2 HP PSC with Thermal Overload Protection IMPELLER CONSTRUCTION: Thermoplastic Recessed |
