SKHD150M2-2

Image shown may not be actual product

0 reviews

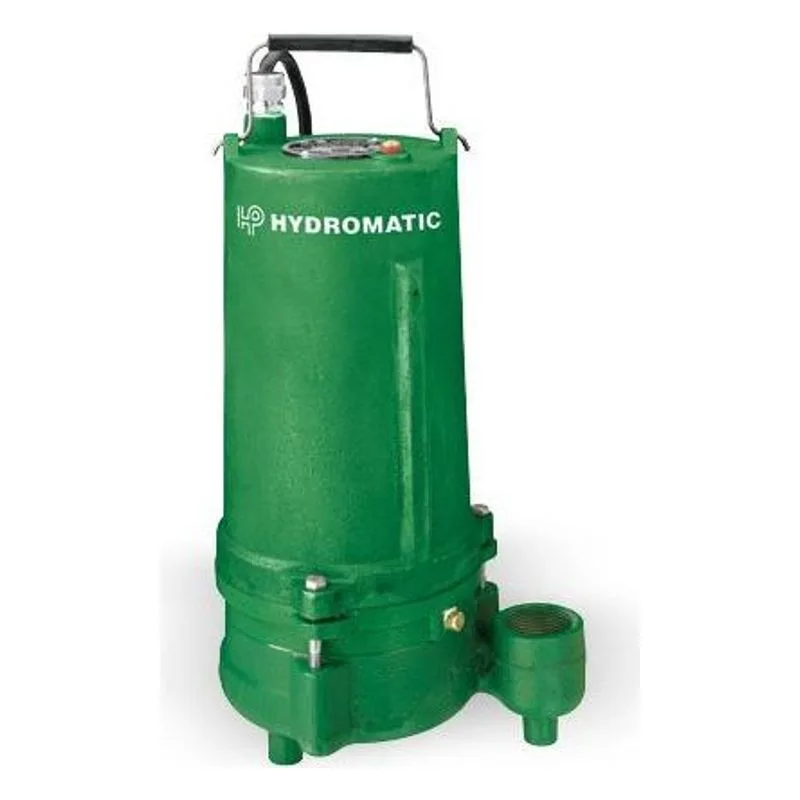

Hydromatic SKHD150M2-2 SKHD Sump / Effluent Pump, 1-1/2" Discharge, 1-1/2 HP, 230 Volts, 1 Phase, 3450 RPM, 3/4" Solids Handling

Item: SKHD150M2-2 | Part #: 517500137

Hydromatic SKHD150M2-2 SKHD Sump / Effluent Pump, 1-1/2" Discharge, 1-1/2 HP, 230 Volts, 1 Phase, 3450 RPM, 3/4" Solids Handling

Actual Weight	77
Built in Overload Protection	Yes
Connections / Discharge (Inches)	1-1/2"
Cord Length	20'
Float Switch Style	No
HP	1.5
Material	Cast Iron
Part Number	517500137
Phase	1

Features & Benefits
SKHD150 High Head Effluent Pumps Key Features: Two (2) Carbon/Ceramic Type 21 Mechanical Seals Mounted in Tandem, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single-phase models), Upper & Lower Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement, Optional Seal Failure Probe Warns of Seal Leak, Capacitor Start for Increased Starting Torque (single-phase models)
General Description
SKHD150 High Head Effluent Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: 1-1/2 HP MAXIMUM HEAD: 127' MAXIMUM CAPACITY: 55 GPM (3.5 LPS) FLOW at 10' LIFT: 55 GPM (3.5 LPS) SWITCH TYPE: standard is no switch. Optional wide-angle tethered Float Available for 1-Phase Models MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 36" DISCHARGE PIPE SIZE: 1-1/2" NPT MAXIMUM SOLIDS HANDLING SIZE: 3/4" AMP DRAW (full load): 6.1 amps on 208v, 3phase / 12 amps on 230v, 1phase / 6 amps on 230v, 3phase / 2.5 amps on 460v / 2 amps on 575v CORD LENGTH: 20' STW-A VOLTAGE: 230v 1-phase OR 208v, 230v, 460v, or 560v 3-phase, 60 Hz MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) IMPELLER CONSTRUCTION: Thermoplastic semi-open
