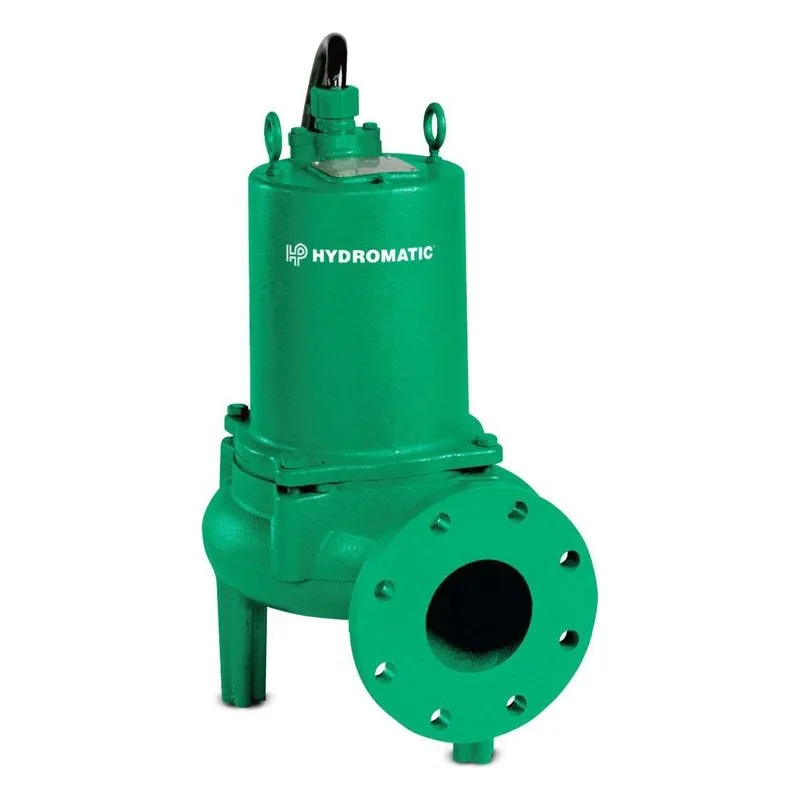

Pentair Hydromatic 518500077 S4S Submersible Sewage Ejector Pump, Model S4S500M5-4. 5 HP, 575 Volts, 3 Ph (Three Phase), 1750 RPM, Enclosed, Oil cooled induction, VFD suitable Motor. 4" 125# Flange Horizontal Discharge, 14-4 Cord.
$6,838.20
- Best Price Guarantee!
- 1367PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
518500077
Pentair Hydromatic 518500077 S4S Submersible Sewage Ejector Pump, Model S4S500M5-4. 5 HP, 575 Volts, 3 Ph (Three Phase), 1750 RPM, Enclosed, Oil cooled induction, VFD suitable Motor. 4" 125# Flange Horizontal Discharge, 14-4 Cord.
| Accessories | Rail Systems, Controls & Accessories available separately |
| Configuration | Horizontal Discharge |
| Connections / Discharge (Inches) | 4" 125# Flange |
| HP | 5 |
| Insulation Class | Class F |
| Model Number | S4S500M5-4 |
| Model Series | S4S |
| Motor Type | Enclosed, Oil cooled induction, VFD suitable |
| Phase | 3 Ph (Three Phase) |
| Speed (RPM) | 1750 |
| Type | Submersible Sewage Ejector Pump |
| Voltage | 575 |
| Wire/Cord Size | 14-4 |
S4S SB4S Sewage Ejector Pumps Information
| Features & Benefits |
|---|
| S4S SB4S Sewage Ejector Pumps Key Features: Carbon/Ceramic Type 21 Mechanical Seal, Oil-Filled Motor, Upper and Lower Single-Row Ball Bearing Construction, Submersible, Two-vane, Semi-Open Cast Iron Impeller |
| General Description |
| S4S SB4S Sewage Ejector Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: Available in 1/2 thru 3 HP MAXIMUM HEAD: 55' SWITCH: Control Panel Required MINIMUM SUMP DIAMETER: 30" for simplex DISCHARGE SIZE: 4" NPT vertical (4" flanged horizontal optional) SOLIDS HANDLING: 3.5" CORD LENGTH: 35' STW cable VOLTAGE: 208-230v OR 460-575v MAXIMUM (intermittent) LIQUID TEMP: 140 degrees F (60 degrees C) PHASE: 1-phase or 3-phas (voltage dependent) IMPELLER: Class 30 Cast Iron Non-Clog |
Categories
Wastewater / Trash / Sewage
2334 products
| Type | Title | Link | |
|---|---|---|---|
S3S S4S SB3S SB4S Brochure | View | ||
S4S, S4SD, SB4S, SB4SD 1750 Specifications | View | ||
S4S Specifications | View | ||
SB4S Specifications | View | ||
S4S, SB4S Specifications | View | ||
S3S, SB3S, S4S, SB4S Specifications | View | ||
S3S SB3S S4S SB4S Electrical Datasheet | View | ||
S4S Dimensional Datasheet | View | ||
S3SD, S4SD, SB3SD, SB4SD Manual | View | ||
S4S Installation & Service Manual | View | ||
