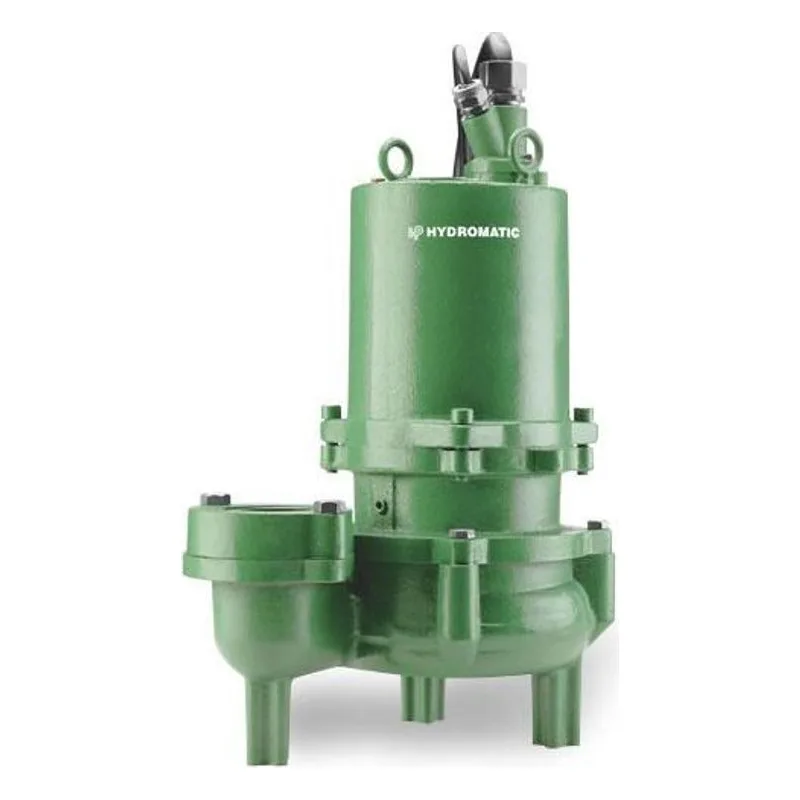

Hydromatic SB3SD150M2-4 SB3SD Series Double Seal Sewage Ejector Pump, 3" Discharge, 1.5 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling
Hydromatic SB3SD150M2-4 SB3SD Series Double Seal Sewage Ejector Pump, 3" Discharge, 1.5 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling
Actual Weight | 180 |
Connections / Discharge (Inches) | 3" |
Cord Length | 35' |
Float Switch Style | Control Panel Required |
HP | 1.5 |
Impeller Size (Inches) | 5.25" (5 1/4") |
Material | Cast Iron |
Part Number | 518462517 |
Phase | 1 |
Plug-In | No |
Solids (Inches) | 2-1/2" |
Speed (RPM) | 1750 |
Voltage | 230 |
Wire/Cord Size | 12-4 |
Features & Benefits |
---|
S3SD SB3SD Sewage Ejector Pumps Key Features: Available configurations, rails and accessories: Rail Systems Available, Controls and Accessories Available |
General Description |
S3SD SB3SD Sewage Ejector Pump General Specifications: HORSEPOWER: 1150 rpm: 1–2 HP / 1750 RPM: 1.5–7.5 HP MATERIALS OF CONSTRUCTION: Class 30 cast iron; ASTM A-48 MAXIMUM HEAD: up to 44 ft. (13.4 m) MAXIMUM CAPACITY: up to 385 GPM (24.3 LPS) SWITCH TYPE: Control panel requiredMaterials of Construction Class 30 cast iron; ASTM MINIMUM SUMP DIAMETER: Simplex = 30" (762 mm) DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm) CORD LENGTH: 35' STW cable VOLTAGE: 1ø, 230V, 60Hz;1.5–7.5 HP / 3ø, 200V/230V/460V/575V, 60Hz MAXIMUM WATER TEMPERATURE: 140°F (60°C) MOTOR: Enclosed, oil cooled induction IMPELLER CONSTRUCTION: Ductile iron; ASTM 536 |
