Image shown may not be actual product
SB3S150M2-4

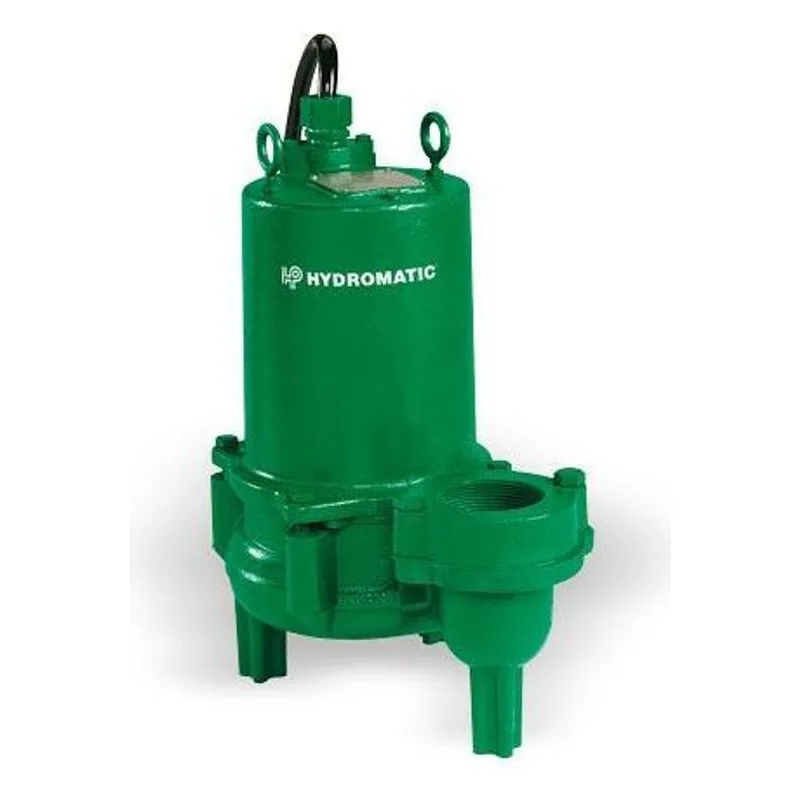

Hydromatic SB3S150M2-4 SB3S Series Single Seal Sewage Ejector Pump, 3" Discharge, 1-1/2 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling - PRODUCT NO LONGER AVAILABLE
Item: SB3S150M2-4 | Part #: 518461017
- Overview
- Series Info
- Reviews
- Literature/Manuals
SB3S150M2-4
Hydromatic SB3S150M2-4 SB3S Series Single Seal Sewage Ejector Pump, 3" Discharge, 1-1/2 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling - PRODUCT NO LONGER AVAILABLE
| Actual Weight | 160 |
| Connections / Discharge (Inches) | 3" |
| Cord Length | 35' |
| Float Switch Style | Control Panel Required |
| HP | 1.5 |
| Impeller Size (Inches) | 5.25" (5 1/4") |
| Material | Cast Iron |
| Part Number | 518461017 |
| Phase | 1 |
| Plug-In | No |
| Solids (Inches) | 2-1/2" |
| Speed (RPM) | 1750 |
| Voltage | 230 |
| Wire/Cord Size | 12-4 |
S3S SB3S Sewage Ejector Pumps Information
| Features & Benefits |
|---|
| S3S SB3S Sewage Ejector Pumps Key Features: Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor, Upper and Lower Single Row Ball Bearing Construction, Submersible, Two-Vane, Semi-Open Cast Iron Impeller |
| General Description |
| S3S SB3S Sewage Ejector Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: Available in 1-1/2, 2, OR 3 HP MAXIMUM HEAD: 40' MAXIMUM CAPACITY: 335 GPM (21.1 LPS) (3 HP) FLOW at 10' LIFT: 300 GPM (using 2 HP as average) SWITCH TYPE: Control Panel Required MINIMUM SUMP DIAMETER: Simplex: 24" (609.6 mm) DISCHARGE PIPE SIZE: 3" NPT vertical OR 3" flanged horizontal optional) MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm) AMP DRAW (full load): HP and Voltage Dependent -- See Spec Sheets for Details CORD LENGTH: 35' STW VOLTAGE: Available in 208-230V -phase OR 208-230V/460-575V 3-phase MAXIMUM LIQUID TEMPERATURE: 140 F (60 C) PHASE: 1-phase or 3-phase (voltage dependent) IMPELLER: Class 30 Cast Iron |
