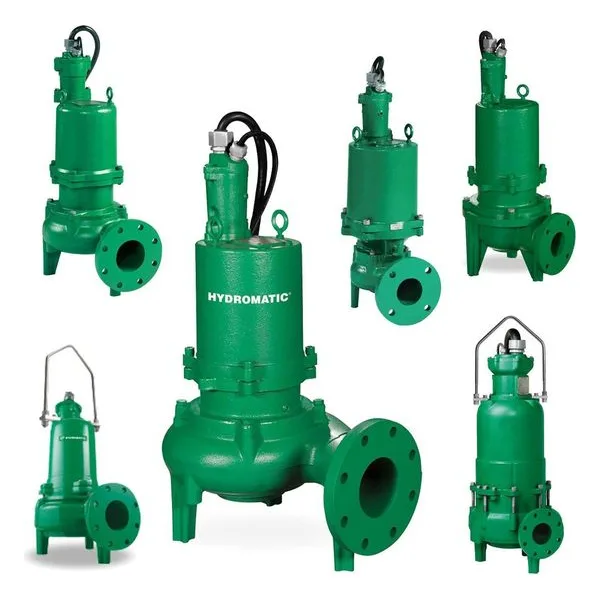

Hydromatic Solids Handling Pumps

Pentair Solids Handling Pump Models:

H3H, H4H, H4Q, S3H, S3HRC, S3HVX, S3HX, S3N, S3NX, S3R, S3RX, S4B, S4H, S4HRC, S4HX, S4K, S4L, S4LRC, S4M, S4MRC, S4N, S4NRC, S4NVX, S4NX, S4P, S6A, S6L, S8F

Reliable Submersible Solids Handling Pumps

Continuing our tradition of excellence, Hydromatic has developed the H Series line of submersible pumps. These pumps offer enhanced performance due to the improved mono-vane impeller geometry, which helps eliminate clogs without compromising performance. The H Series pumps deliver steeper, non-overloading performance curves and improved efficiencies.

As one of the oldest manufacturers of submersible pumps in the world, Hydromatic has built a strong reputation through years of engineering advancements, real-world applications, and extensive experience. Today, Hydromatic stands as a premier brand, with dependable pumps that provide years of reliable service.

Hydromatic S3HRC/S3HVX 3" Discharge Submersible Solids Handling Pumps

Key Features:

• The recessed impeller design allows for a completely open passage in the volute.

• Vortex pumping action reduces the risk of solids getting trapped in the impeller volute.

• Operates smoothly without vibration or cavitation across the entire performance curve.

• The recessed impeller significantly extends bearing life by reducing radial load.

• Oil-filled motor ensures maximum heat dissipation and continuous bearing lubrication.

• Heat sensor thermostats embedded in the windings protect the motor from overheating.

• Seal leak probes alert to moisture entry, preventing costly motor burnout.

• Available configurations include rail systems and accessories.

Available Options:

• Rail Systems

• Controls and Accessories

Hydromatic H4H/H4HX 4" Discharge Submersible Solids Handling Pumps

Key Features:

• Capable of passing a full 3" diameter non-deformable spherical solid in compliance with the Ten States Standards.

• Performance includes a steep non-overloading curve.

• Capable of flows up to 850 GPM and heads up to 105 ft.

• Highly efficient design aimed at reducing clogs.

• Features a streamlined impeller vane at the inlet and a smooth flow path.

• H4H wet end can be retrofitted to the Hydromatic S4P motor end.

• Oil-filled motors provide cooler operation compared to air-filled motors and ensure continuous lubrication of the bearings for extended life.

• Slip-fit stators for ease of service.

• Seal cord entrance with triple seal protection prevents moisture entry, extending the life of the pump.
