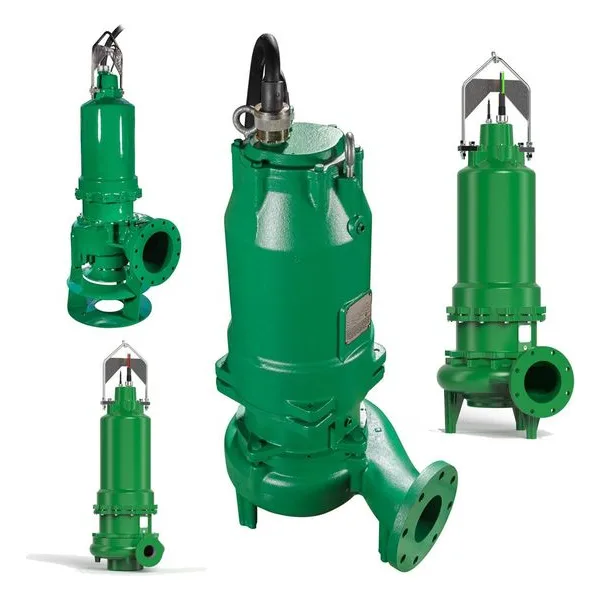

Hydromatic HPE Series

Pentiar Premium Efficient Solids Handling Pumps

Designed to minimize lifecycle costs, enhance serviceability, and extend pump life, the Hydromatic HPE Series provides a cost-effective solution with its premium efficient oil-filled motor.

Key Features

• NEMA Premium Efficient Motors

• Optional Shaft Grounding Ring (SGR) Technology

• Standard Double-Row Self-Lubricating Thrust Bearings

• Terminal Block: Eliminates the need for wire nuts and crimp connectors.* *Terminal block featured on 210 frame pumps, and select 460 volt and 575 volt pumps 250 frame and larger.

You're already handling a lot to keep your wastewater systems running smoothly, efficiently, and continuously. The Hydromatic HPE Series Pumps are here to relieve that burden.

Hydromatic HPE Series Pumps operate 40°C cooler than other solids-handling pumps, even under pressure. These lower running temperatures translate to higher efficiency, reduced operating costs, extended pump life, and less maintenance—giving you one less thing to worry about.

Lower Cost of Ownership

• Superior wire-to-water efficiencies

Ease of Installation and Maintenance

• Simple terminal block provides secure connections—no boxes, nuts, or crimps needed

• Permanently lubricated bearings that require no regular maintenance

• Seal replacements do not void FM®/CSA® certification

Maximum Liquid Temperature:

• 104°F Labeled

• 140°F Unlabeled

Motor:

• Premium Efficient

• NEMA MG1, IEC 60034 -30 Level IE3

Motor Housing:

• Cast Iron

• ASTM, A-48, Class 30

Pump Casing:

• Cast Iron

• ASTM, A-48, Class 30

Impeller:

• Ductile Iron

• ASTM, A-536, Class 65

Casing Wear Ring:

• Bronze

• ASTM, B-584-836, Alloy 115

Motor Shaft: 416 Stainless Steel

Hardware: 300 Series Stainless Steel

Body O-Rings: Nitrile

Mechanical Seal (Standard):

• Upper: SiC Type 2100

• Lower: SiC Type 2

Upper Bearing (Radial): Single Row Ball

Lower Bearing (Thrust): Double Row, Angular Contact Ball
