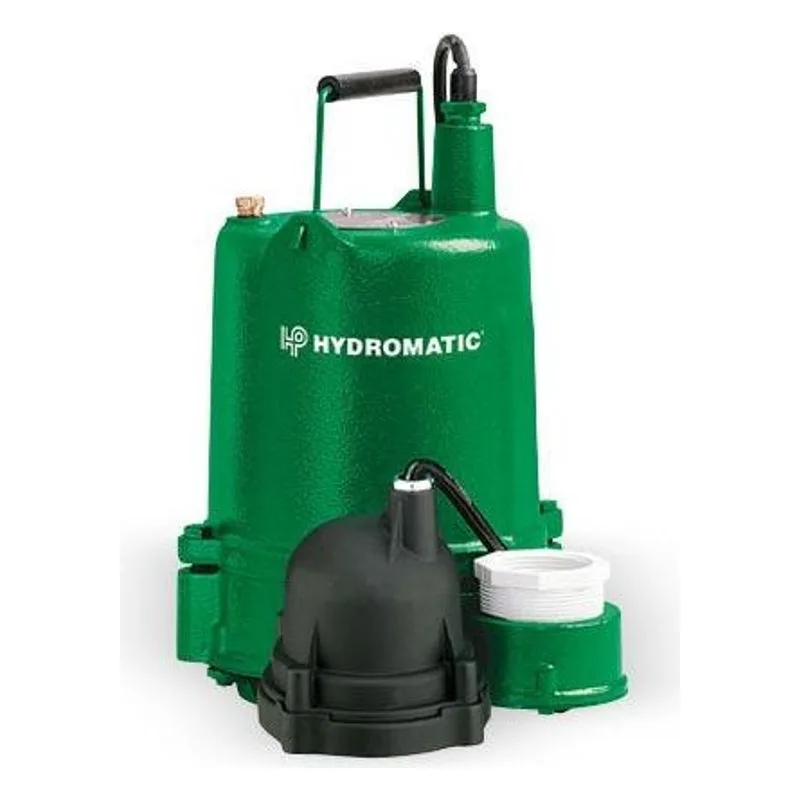

Image shown may not be actual product

OSP50M2 20

0 reviews

Hydromatic OSP50M2 20 OSP Series Effluent Pump, 1-1/2" /2 Discharge, 1/2 HP, 230 Volts, 1 Phase, 1750 RPM, 5/8" Solids Handling. Replaced by Identical Myers Pump Model MEOSP50M2 20, Engineering Number 28214D012. Manufactured by the same parent company, Pentair.

Call for Pricing

Best Price Guarantee!

Item: OSP50M2 20 | Part #: 517940007

Overview
Series Info
Reviews
Literature/Manuals

OSP50M2 20

Actual Weight	48
Built in Overload Protection	Yes
Connections / Discharge (Inches)	1-1/2" /2
Cord Length	20'
Float Switch Style	No
HP	0.5
Manufacturer	Pentiar
Material	Cast Iron
Model Number	MEOSP50M2 20
Part Number	517940007

Phase	1
Plug-In	Yes
Solids (Inches)	5/8"
Speed (RPM)	1750
Switch Turn Off	Manual
Switch Turn On	Manual
Voltage	230
Wire/Cord Size	16/3

OSP Effluent Pumps Information

Features & Benefits
OSP Effluent Pumps Key Features: Continuous Duty Rated, Naval Bronze model Aailable for Corrosion Resistance, Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-filled Motor with Automatic Thermal Overload for Maximum Protection, Upper and Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Replacement
General Description
OSP Effluent Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron OR Naval Bronze HORSEPOWER: 1/2 HP MAXIMUM HEAD: 25 ft. (7.6 m) MAXIMUM CAPACITY: 60 GPM (3.8 LPS) FLOW at 10' LIFT: 52 GPM SWITCH TYPE: Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30" DISCHARGE PIPE SIZE: 1-1/2" NPT (38.1 mm) OR 2" NPT (50.8 mm) MAXIMUM SOLIDS HANDLING SIZE: 5/8" AMP DRAW (full load): 9.5 on 115v / 5.2 on 230v CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: Available in 115v or 230v AC, 60 Hz (Naval Bronze models in 115v only) MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) MOTOR: 1/2 HP split-phase with Thermal Overload IMPELLER OPTIONS: Open vane Naval Bronze or Thermoplastic Vortex
