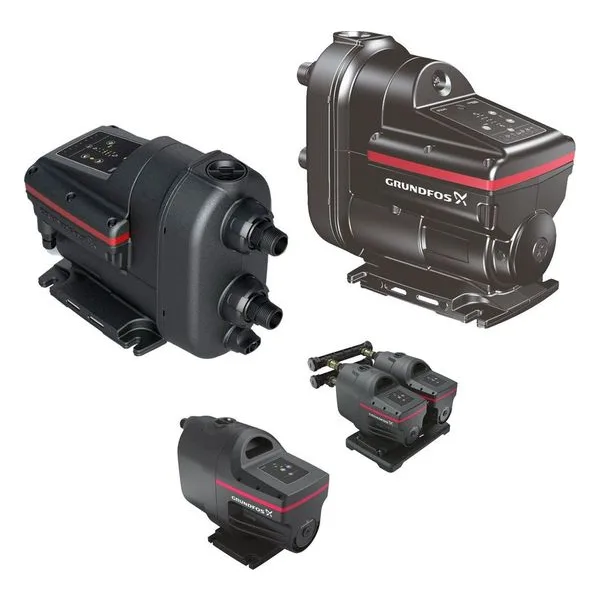

SCALA 1 / SCALA2 Water Boosting Pumps

GRUNDFOS SCALA 1 | SCALA2

GETTING WATER ON DEMAND HAS NEVER BEEN EASIER

Grundfos SCALA1 is an all-in-one pressure boosting unit with a high-efficiency motor and hydraulics with low noise operation for domestic water supply and also light commercial applications. Built-in Bluetooth communication gives you complete control over the pump using the Grundfos GO REMOTE, also for twin pump operation. This means that installation and commissioning has never been easier. The Grundfos GO REMOTE app also lets you see alarm status and get easy pump diagnostics. You can create and email reports onsite and access hard-to-reach installations remotely from the app.

FIVE SIZE VARIANTS FOR
EVERY DOMESTIC WATER SUPPLY NEED
Designed for pressure boosting in domestic installations, use SCALA1 for pumping from a roof tank, break tank or ground tank. It is also ideal for water supply from shallow wells (less than 8 m) and for pressure boosting from city mains water.

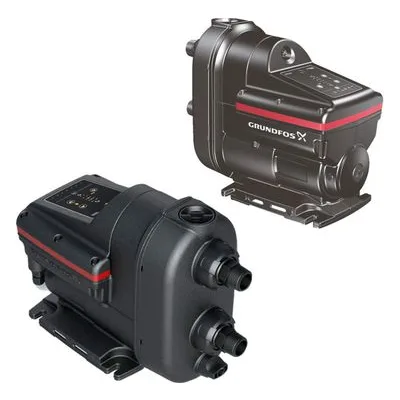

SCALA2 is a fully integrated water booster pump providing perfect water pressure in all taps at all times—even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market. SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure. SCALA2 is developed to deliver trouble-free operation and ensure a long lifetime. It is built from high-grade materials, and every pump is thoroughly tested to guarantee the best possible performance and quality.

KEY FEATURES AND BENEFITS

• Perfect water pressure: Intelligent pump control adjusts operation automatically
• Low noise: As quiet as a modern dishwasher (47 dB(A) in typical use)
• Easy selection: One variant for all residential boosting needs
• Easy installation: Compact, all-in-one solution, plug-and-pump
• Easy to operate: User-friendly control panel
• Reliable operation: Dry-running protection, anti-cycling
• Long lifetime: Quality-tested to perfection, maintenance-free
• Highly efficient with ECM motor
• Self priming and suitable for both indoor and outdoor applications

APPLICATIONS

1. Boosting from mains: increases the water pressure delivered by city mains
2. Boosting from tanks: increases water pressure from roof tanks, break tanks and ground tanks, including rainwater tanks
3. Boosting from wells: pumps water from a depth of up to 26 feet (8 meters)
4. Indoor and outdoor installation: NEMA 3
