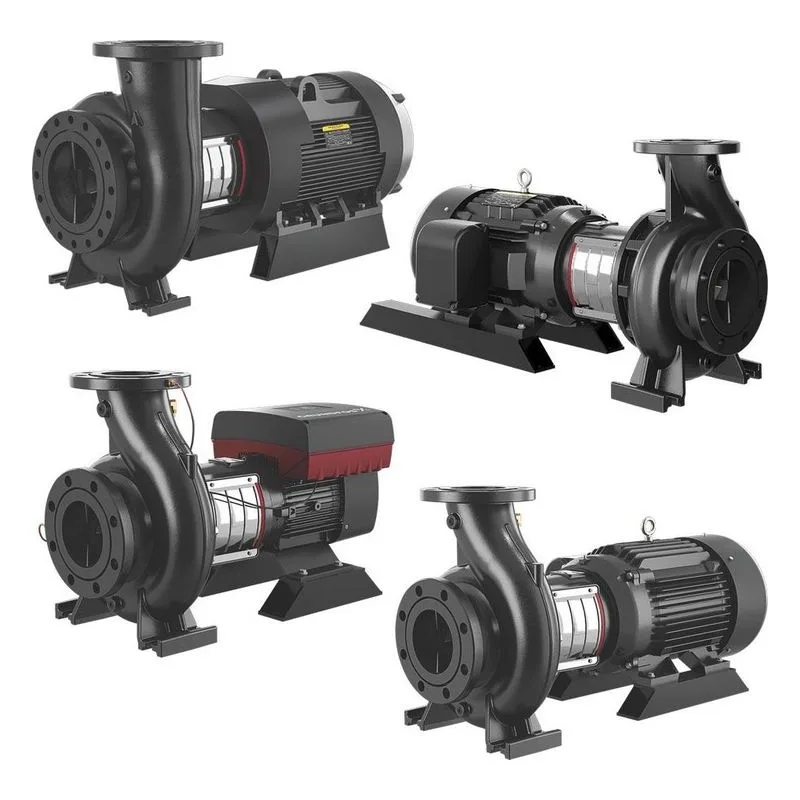

Image shown may not be actual product
92913206
Grundfos 92913206 NBS Series Split Coupled End-Suction Pump, Model NBS 050-070/6.77AASG6S5ESBQQEXX2, Basic Version with Support Rails - Pump End Only. 5" ANSI Flange Discharge Connections, 7" 304 Stainless Steel Closed Impeller with Cylindrical Trim, and SilCar/SilCar/EPDM Rubber Bellows Seal. 5800 GPM Max Flow, Heads to 450 ft., 104°F Max Temperature, and 175 PSI (362 PSI Optional) Max Pressure.
$4,631.77
- Best Price Guarantee!
- 926PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
92913206
Grundfos 92913206 NBS Series Split Coupled End-Suction Pump, Model NBS 050-070/6.77AASG6S5ESBQQEXX2, Basic Version with Support Rails - Pump End Only. 5" ANSI Flange Discharge Connections, 7" 304 Stainless Steel Closed Impeller with Cylindrical Trim, and SilCar/SilCar/EPDM Rubber Bellows Seal. 5800 GPM Max Flow, Heads to 450 ft., 104°F Max Temperature, and 175 PSI (362 PSI Optional) Max Pressure.
| Build | 1st Version |
| Casing Material | A48 Class 35 Cast Iron |
| Configuration | Pump Without Sensor |
| Connections / Discharge (Inches) | 5" |
| Connection Type | ANSI Flange |
| Elastomer | EPDM |
| Flange | ANSI Flange Class 125, 175 PSI |
| HP | ^ |
| Hz | ^ |
| Impeller Material | 304 Stainless Steel |
| Impeller Size(Inches) | 6.77" |
| Impeller Style | Closed Impeller, Cylindrical Trim |
| KW | ^ |
| Liquid Temperature | -10°F to 284°F (-25°C to 140°C) |
| Maximum Flow (GPM) | 5800 GPM |
| Maximum Pressure (PSI) | 175 PSI (Optional 362 PSI) |
| Model Number | NBS 050-070/6.77AASG6S5ESBQQEXX2 |
| Model Series | 050-070 |
| Motor Enclosure Type | ^ |
| Motor Frame Size | ^ |
| Motor Shaft Material | SAF 2205 Stainless Steel |
| Motor Type | ^ |
| Nominal Impeller Diameter (Inches) | 7" |
| Options | Basic Version with Support Rails |
| Phase | ^ |
| Pole | ^ |
| Product Notes | DOE Reported, Sell as Bare Shaft Pump or DOE Regulated Motor (CC Marked Motor) |
| Quick Specs | NBS 050-070/6.77AASG6S5ESBQQEXX2 |
| Rotary | Silicon Carbide |
| Seal Code | BQQE |
| Shaft Seal Material | Silicon Carbide / Silicon Carbide / EPDM |
| Shaft Seal Type | Single Rubber Bellows Seal |
| Speed (RPM) | ^ |
| Stationary | Silicon Carbide |
| Type | Bare Shaft Pump |
| UPC | 5715121488235 |
Repair Parts for 92913206
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 96939129 | Ships in | $440.10 | ||
| 99756265 | Ships in | Call for pricing | ||
| 92526508 | Call for Shipping | ||||
| 97761203 | Ships in | $86.40 | ||
| 92526525 | Call for Shipping | ||||
 | 92521501 | Ships in | $5,090.58 | ||
