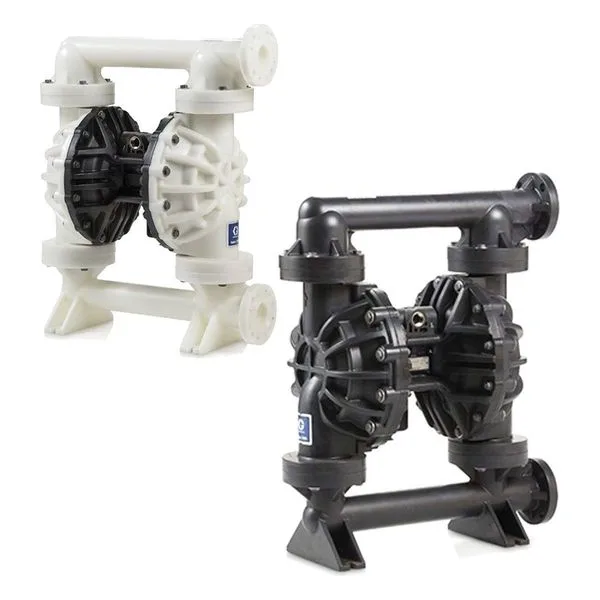

HUSKY 2200 SERIES
OVERVIEW & FEATURES
Top-Tier Performance: 2-inch AODD pump delivering the highest fluid flow rate in its class—up to 200 gpm (757 lpm)—in a compact, portable size.
High Efficiency: Up to 40% more efficient than comparable pumps, featuring a high-efficiency air system and a fluid pressure rating of 125 psi (8.6 bar).
Leak-Free Reliability: Reinforced frame design eliminates fluid leakage and improves overall structural durability.
Modular Air Valve: Patented modular air valve is online-serviceable and designed for smooth, consistent cycling without the need for lubrication.
Chemical Integrity: Single-piece polypropylene center section ensures superior reliability and broad chemical compatibility.
Longevity: Overmolded diaphragm option available for up to 5× longer life compared to standard designs.
FLUID PORTS
Air Ports: 3/4 in npt(f) inlet; 1 in npt(f) exhaust.
Fluid Inlet/Outlet: 2 in (50 mm) ANSI/DIN flange (center- and end-porting options available).
MATERIALS
Fluid Section: Polypropylene or PVDF.
Center Section & Air Valve: Polypropylene.
Wetted Parts (Seats/Balls/Diaphragms):
Seats: Polypropylene, PVDF, Santoprene®, or Stainless steel.
Balls: FKM, PTFE, Santoprene®, or Stainless steel.
Diaphragms: FKM, PTFE/EPDM overmolded, PTFE/Santoprene two-piece, or Santoprene®.
Seals: PTFE, Santoprene®, or PTFE/EPDM overmolded.
Compliance: All materials are FDA-compliant per CFR Title 21, Section 177.
AIR SYSTEM & INSTALLATION
Operation: Pneumatic drive (20–125 psi) with a lube-free design that simplifies air supply setup.
Serviceability: Quick-access air valve and diaphragms; standard AODD mounting footprint for easy drop-in replacement.
Structural Design: Reinforced frame and seal-less architecture reduce alignment sensitivity and prevent leaks.
APPLICATIONS
Chemical transfer, industrial fluids, wastewater/slurries, abrasive or solids-bearing materials, and high-flow portable transfer in harsh environments.
TECHNICAL DATA
Max Press/Flow: 125 psi (8.6 bar) | 200 gpm (757 lpm).
Suction/Solids: 31 ft (9.4 m) wet lift / 16 ft (4.9 m) dry lift | 3/8 in (9.5 mm) max solids.
Consumption: 70–75 scfm @ 70 psi/100 gpm; 140–157 scfm max.
Volume per Cycle: 1.3–1.6 gal (4.9–6.1 L).
Noise Level: 87.3 dBa @ 70 psi; 94.7 dBa @ 100 psi.
