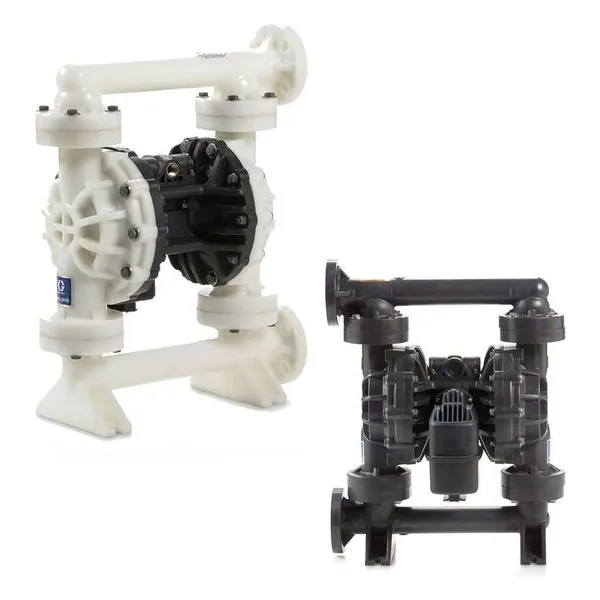

HUSKY 15120 SERIES

OVERVIEW & FEATURES

• Top Performance: 1.5 in (38.1 mm) AODD pump delivering the highest flow rate in its class—up to 122 gpm (462 lpm)—in a compact, portable frame.

• Superior Efficiency: Up to 40% more efficient than comparable pumps, with a fluid pressure rating of 125 psi (8.6 bar).

• Leak Prevention: One-piece polypropylene center section eliminates leak points and reduces maintenance requirements.

• Smooth Operation: Stall-free, low-pulsation air valve ensures rapid changeover and consistent flow without lubrication.

• Extended Life: Diaphragm platform rated for up to 5× longer life; includes overmolded options for maximum durability.

• Compliance: All materials are FDA-compliant per CFR Title 21 (Sections 177.1520, 177.1550, and 177.2600).

FLUID PORTS

• Air Ports: 1/2 in npt(f) inlet; 1 in exhaust.

• Fluid Inlet/Outlet: 1.5 in (38 mm) ANSI/DIN flange (center- and end-porting configurations available).

MATERIALS

• Air Motor: Polypropylene.

• Fluid Section: Polypropylene or PVDF.

• Wetted Parts (Seats/Balls/Diaphragms):

• Seats: Polypropylene, PVDF, Santoprene®, or Stainless steel.

• Balls: FKM, PTFE, Santoprene®, or Stainless steel.

• Diaphragms: FKM, PTFE/EPDM overmolded, PTFE/Santoprene two-piece, or Santoprene®.

• Seals: PTFE, Santoprene®, or PTFE/EPDM overmolded.

AIR SYSTEM & INSTALLATION

• Operation: Pneumatic drive (20–125 psi) with a lube-free design that simplifies air supply setup.

• Serviceability: Quick-access air valve and diaphragms; standard AODD mounting footprint for easy integration.

• Reliability: Seal-less design eliminates mechanical seal failures and reduces alignment sensitivity during installation.

APPLICATIONS

• Chemical and industrial fluid transfer, wastewater/slurries, abrasive or solids-bearing materials, and high-flow portable transfer in corrosive environments.

TECHNICAL DATA

• Max Press/Flow: 125 psi (8.6 bar) | 122 gpm (462 lpm).

• Suction/Solids: 31 ft (9.4 m) wet lift / 16 ft (4.9 m) dry lift | 1/4 in (6.3 mm) max solids.

• Consumption: 43 scfm @ 70 psi/60 gpm; 85 scfm max.

• Volume per Cycle: 0.63–0.66 gal (2.3–2.5 L).

• Noise Level: 83.6 dBa @ 70 psi; 95.7 dBa @ 100 psi.
