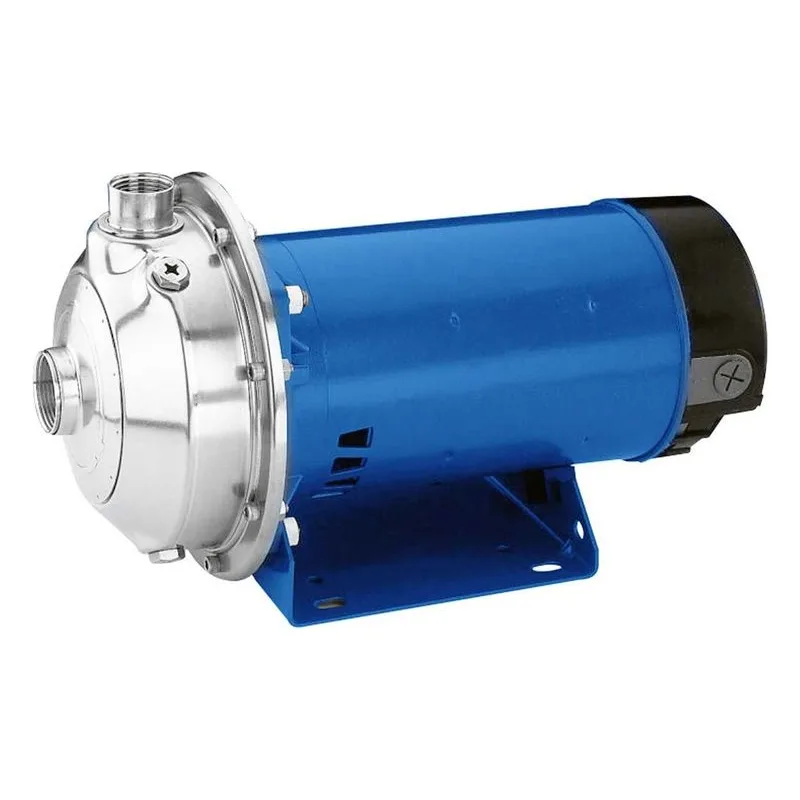

Image shown may not be actual product
100MS4C4E4
Goulds Water Technology 100MS4C4E4 MCS Stainless Steel End Suction Centrifugal Pump. 0.5 HP (1/2 Horsepower), 115/230V, 1 Phase (1 Ph), 50 Hz, 2 Pole, 2900 RPM Motor with TEFC Enclosure. 1.25" (1-1/4") NPT Suction & 1" NPT Discharge, 4.4375" (4-7/16") AISI 316L (Stainless Steel) Impeller, Car/SilCar/Viton Mechanical Seal. 170 GPM (Gallons Per Minute) Max Capacity, Heads to 150 ft., Max Pressure of 75 PSIG or 125 PSIG with Optional Seals. A Xylem Brand Product.
- Pump Catalog Price
Retail Price: $1,610.70How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
100MS4C4E4
Goulds Water Technology 100MS4C4E4 MCS Stainless Steel End Suction Centrifugal Pump. 0.5 HP (1/2 Horsepower), 115/230V, 1 Phase (1 Ph), 50 Hz, 2 Pole, 2900 RPM Motor with TEFC Enclosure. 1.25" (1-1/4") NPT Suction & 1" NPT Discharge, 4.4375" (4-7/16") AISI 316L (Stainless Steel) Impeller, Car/SilCar/Viton Mechanical Seal. 170 GPM (Gallons Per Minute) Max Capacity, Heads to 150 ft., Max Pressure of 75 PSIG or 125 PSIG with Optional Seals. A Xylem Brand Product.
| Adapter Material | Aluminum |
| Capacities (GPM) | 170 GPM (550L/min) @ 3500 RPM |
| Casing Material | AISI 316L Stainless Steel |
| Connection Type | NPT |
| Discharge NPT (Inches) | 1" NPT |
| Elastomer | Viton |
| Heads To (Feet) | 150' (46m) @ 3500 RPM |
| HP | 0.5 HP |
| Hz | 50 Hz |
| Impeller Code | E |
| Impeller Material | AISI 316L Stainless Steel |
| Impeller Size(Inches) | 4.4375" (4-7/16") |
| Impeller Style | Enclosed |
| Material | Stainless Steel |
| Maximum Working Pressure (PSIG) | 75 PSIG (5 bars) or 125 PSIG (9 bars) with Optional Seals |
| Metal Parts | 316 SS |
| Model Series | MCS100 |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Motor Frame Size | 56Y |
| Motor Shaft Material | Stainless Steel |
| Mounting Type | NEMA 56 Square Flange Frame |
| Phase | 1 Ph (Single Phase) |
| Pole | 2 Pole |
| Pump Size | 1 x 1-1/4 - 6 |
| Quick Specs | 1/2HP 1/50/115-230 TE 4.44" |
| Rotary | Carbon |
| Seal Code | 4 |
| Shaft Seal Material | Carbon / Silicon Carbide / Viton |
| Speed (RPM) | 2900 RPM |
| Stationary | Silicon Carbide |
| Suction NPT (Inches) | 1.25" NPT |
| UPC | 19299864674 |
| Voltage | 115/230V |
MCS Stainless Steel Pumps Information
| Features & Benefits |
|---|
| Goulds Water Technology Pump Model MCS is specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted or all bronze construction. |
| General Description |
| MCS Models are End Suction Centrifugal Pumps |
| Motors |
| NEMA standard open drip- proof, totally enclosed fan cooled enclosures. Rugged ball bearing design for continuous duty under all operating conditions. |
| Mechanical Shaft Seal Information |
| Standard John Crane seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts. Optional high temperature and chemical duty seals available. |
| Motor Information |
| NEMA 56 square flange frame. 3500 RPM ½ through 5 HP. Open drip-proof, ½ -3 HP totally enclosed fan-cooled enclosures. Stainless steel shaft with ball bearings. Single phase: Voltage 115/230 ODP and TEFC. (3 HP model – 230 V only) Built-in overload with auto reset provided. Three phase: Voltage 208-230/460 ODP and TEFC. |
| Impeller Information |
| High Efficiency Impeller: Enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment. |
| Casing Information |
| Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. |
| Notes |
| For three phase motors, overload protection must be provided in starter unit. Starter and heaters must be ordered separately. |
| Direction of Rotation |
| Clockwise when viewed from motor end. |
Categories
Air Scrubbers
2387 productsChillers / Hot Water Systems
8127 productsCirculation
55636 productsGeneral Water Services
10972 productsHeat Exchangers
3168 productsInjection Molding
5891 productsLiquid Transfer
25635 productsOEM Applications
13108 productsReverse Osmosis
38557 productsSpray Systems
21411 productsWashing / Cleaning Systems
47732 products
Repair Parts for 100MS4C4E4
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 1L81 | Lead Time TBD | $1,150.80 | ||
 | 2K1199 | Lead Time TBD | $310.80 | ||
 | 1K336 | Ships in 3-5 Days | $169.40 | ||
 | 5K7 | Ships in 1 Day | $205.80 | ||
 | 1L79 | Lead Time TBD | $333.20 | ||
 | 4K450 | Lead Time TBD | $53.20 | ||
 | 13K286 | Lead Time TBD | $40.60 | ||
 | 3L23 | Lead Time TBD | $246.40 | ||
 | 5K269 | Ships in 2-3 Days | $58.80 | ||
| 13K269 | Lead Time TBD | $15.40 | ||
 | 13K262 | Lead Time TBD | $39.90 | ||
| 13K268 | Lead Time TBD | $31.50 | ||
 | 13K287 | Lead Time TBD | $70.70 | ||
 | 10K55 | Ships in 1 Day | $161.70 | ||
 | 6L3 | Lead Time TBD | $42.00 | ||
 | 5L99 | Lead Time TBD | $24.50 | ||
 | 5K206 | Ships in 2-3 Days | $69.30 | ||
