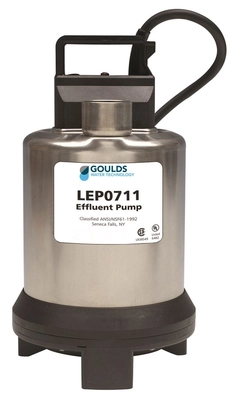

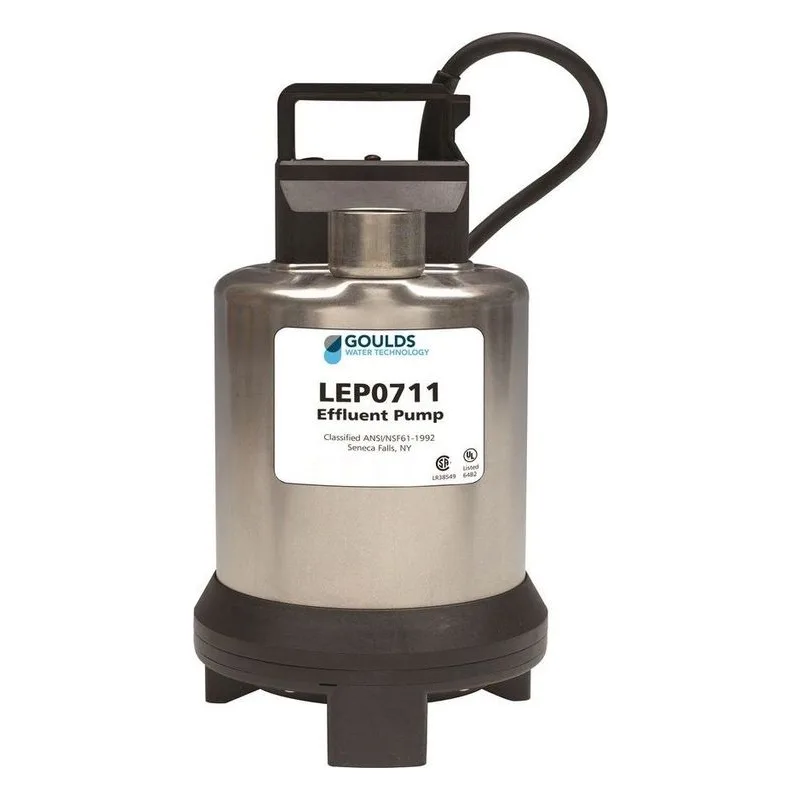

• Goulds Pumps LEP0712F LEP07 Residential Submersible Effluent Pump

Image shown may not be actual product

Goulds

LEP0712F

0 reviews

Goulds LEP0712F LEP07 Series Submersible Effluent Pump, 3/4 HP, 3450 RPM, 230 Volt, 60 Hz, Single Phase, 1 1/2" Discharge, 3.4 Max Amps, 20' Cord Length, 3/4" Solids Handling

$246.60

Item: LEP0712F
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals

LEP0712F

Goulds LEP0712F LEP07 Series Submersible Effluent Pump, 3/4 HP, 3450 RPM, 230 Volt, 60 Hz, Single Phase, 1 1/2" Discharge, 3.4 Max Amps, 20' Cord Length, 3/4" Solids Handling

Capacities (GPM)52
Cord Length20'
Discharge NPT (Inches)1 1/2"
Heads To (Feet)22'
HP3/4
Hz60
Max Amps3.4
MaxImum Operating Temperature104º F (40º C)
PhaseSingle Phase
Quick Specs3/4HP 1/60/230 3.4MA
Solids (Inches)3/4"
Speed (RPM)3450
Voltage230

LEP07 Submersible Effluent Pump Series Information

Features & Benefits
Goulds LEP07 Submersible Effluent Pump Full Range of Features:
Corrosion-resistant construction
Stainless Steel motor casing and fasteners
Glass-filled thermoplastic impeller and casing.
Bearing: Upper and lower heavy duty ball bearing construction.
Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor.
Hard coated 400 series stainless steel shaft for improved corrosion resistance.
Optional float switch is adjustable for various liquid levels. Easily removed for direct pump operation or switch replacement.
Complete unit is lightweight and portable.
General Description
Float Switch Options
• LEP07_ A is supplied with a built-in float switch for automatic operation.
• LEP07_ AT is supplied with a replaceable float switch. This switch is a piggy-back type with 5-15P or 6-15P three prong grounding plug.
Motors
• Single phase, 3450 RPM
• LEP0711, 3⁄4 HP, 115 V, 60 Hz
• LEP0712, 3⁄4 HP, 230 V, 60 Hz
• Built-in thermal overload protection with automatic reset.
• Permanent-split-capacitor type
• Amps: 6.9 maximum for LEP0711 / 3.4 maximum for LEP0712
• Class F insulation
• Hardened stainless steel shaft
• Air filled design
• Power cord length: 20 feet
