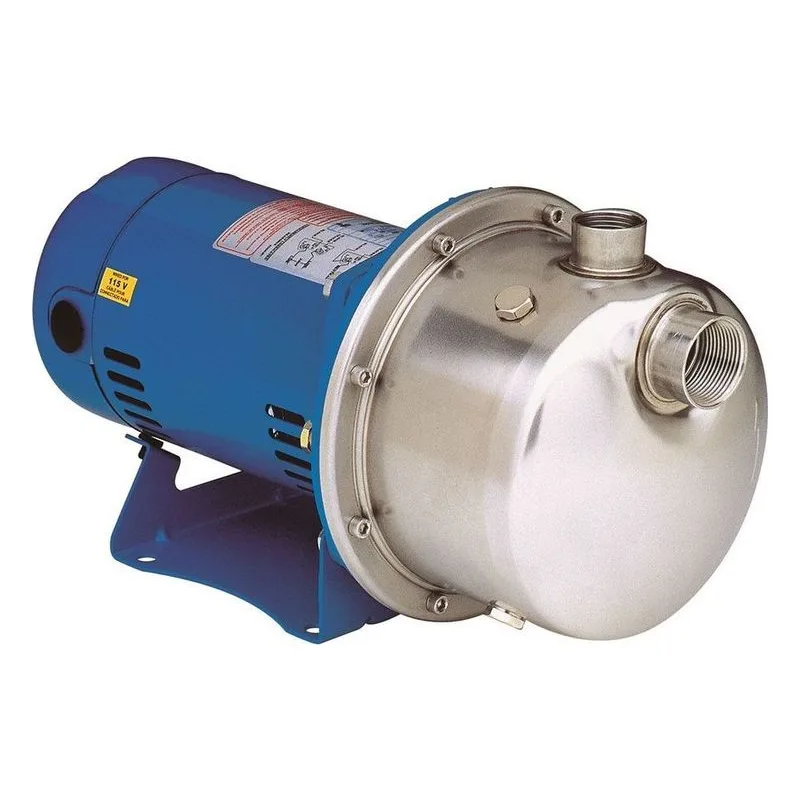

Image shown may not be actual product
Goulds LB1035 LB Series Booster Pump, 1 HP, 230-460 Volt, 60 Hz, Three Phase, 3500 RPM, Noryl 5.25" Impeller, ODP - Open Drip Proof Motor Enclosure, 1 1/4" NPT Suction, 1" NPT Discharge
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Goulds LB1035 LB Series Booster Pump, 1 HP, 230-460 Volt, 60 Hz, Three Phase, 3500 RPM, Noryl 5.25" Impeller, ODP - Open Drip Proof Motor Enclosure, 1 1/4" NPT Suction, 1" NPT Discharge
Capacities (GPM) | 20 GPM (4.6 m3/hr.) |
Casing Material | 304 Stainless Steel |
Discharge NPT (Inches) | 1" NPT |
Heads To (Feet) | 190 feet (82 psi, 57 meters) |
HP | 1 |
Hz | 60 |
Impeller Material | Noryl |
Impeller Size (Inches) | 5.25" (5 1/4") |
Maximum Operating Temperature | 140° F (60° C) |
Maximum Working Pressure (PSIG) | 85 PSIG (6 bars) |
Motor Enclosure Type | ODP - Open Drip Proof |
Phase | 3 Ph (Three Phase) |
Quick Specs | 1HP 3/60/230-460 DP 5.25" |
Speed (RPM) | 3500 |
Suction NPT (Inches) | 1-1/4" NPT |
UPC | 069766615639 |
Voltage | 230/460 |
Features & Benefits |
---|
Goulds LB Series Range of Product Features: High Head Water Boosting: The LB booster pump provides an economical alternative for small booster sets with flow requirements up to 18 GPM and heads up to 190 feet. Casing: Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Engineered Thermoplastic Internal Components: Impellers, guidevanes and motor adapters are high strength and light weight engineered composite. Mechanical Seal: Standard John Crane type 6 seal with carbon ceramic faces, BUNA elastomers and stainless steel metal parts. Motors: NEMA standard 48Y and 56Y open drip proof enclosures with optional single phase, three phase or 575 volt TEFC configuration. |
General Description |
Goulds LB Booster Pump Series End Suction, Single Stage, Centrifugal Booster Pump |
Motors |
Motor Specification: NEMA 48Y or 56Y square flange frame, 3500 RPM, ½ – 1 HP. Open drip proof enclosures, stainless steel shaft with ball bearings. Single Phase: 115/230 V. Built-in overload with auto reset provided. Three Phase: 208-230/460 V or 575 V. 575 volt motor is three phase TEFC. |
Notes |
For three phase motors, overload protection must be provided in starter unit. Starter and heaters must be ordered separately. |
Direction of Rotation |
Clockwise when viewed from motor end |
