Image shown may not be actual product
HVM1203

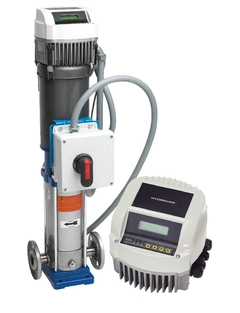

Goulds HVM1203 Hydrovar Series Variable Speed Pump Control, Master Drive 3 HP, 230 Volt, 60 Hz, Single Phase
- Overview
- Series Info
- Reviews
- Literature/Manuals
HVM1203
Goulds HVM1203 Hydrovar Series Variable Speed Pump Control, Master Drive 3 HP, 230 Volt, 60 Hz, Single Phase
| HP | 3 |
| Hz | 60 |
| Maximum Operating Temperature | 32 – 104º F (0 – 40º C) |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | HYDROVAR MASTER 3HP 1/230V |
| UPC | 69766654290 |
| Voltage | 230 |
Hydrovar Series Information
| Features & Benefits |
|---|
| The Hydrovar Advantage • Accepts 3 different signal inputs: 0-20mA; 4-20mA and 0-10VDC • Master, Basic and Single drive options provide flexibility at lower cost • Error log and diagnostic display shows temperature and real time current and voltage • Simplified programming menu • Multiple set points available • 3 Separate start/stop inputs • Use with OFF-the–shelf TEFC 3Ø motors • KITS offer prewired drive and fused disconnect to retrofit pumps in the field • Complete e-SV Packages offer – Industry leading efficiencies – Broad performance range – Simple selection and ordering process – Factory programed and tested system |
| General Description |
| Hydrovar Variable Speed Pump Controller The HYDROVAR Pump controller is a combination of a variable frequency motor drive (VFD) and a programmable logic controller (PLC) in one compact package. It mounts on the fan cover of the TEFC pump motor. Each controller is pre-programmed with patented pump specific software. Controllers are specifically designed to work with all configurations of centrifugal pumps, matching pump output to varying system conditions while protecting the pump, the motor and the pumping system. |
Categories
Boiler Feeds
36691 productsCirculation
55636 productsCooling Tower
108 productsFiltration Systems
7729 productsFire Fighting
32394 productsHVAC
38853 productsIndustrial Processes
40694 productsReverse Osmosis
38557 productsSprinkler / Irrigation
44261 productsWashing / Cleaning Systems
47732 productsWater Treatment
33200 products
| Type | Title | Link | |
|---|---|---|---|
Goulds Pumps Hydrovar Pump Controller Brochure | View | ||
Goulds Pumps Hydrovar Pump Controller e-SV Technical Brochure | View | ||
Goulds Pumps Hydrovar Pump Controller Instruction Manual | View | ||
Goulds Pumps Hydrovar Pump Controller Performance Range | View | ||
Goulds Pumps Hydrovar Pump Controller 2 HP - 15 HP Manual | View | ||
Goulds Pumps Hydrovar Pump Controller e-SV Quick Start Guide | View | ||
Goulds Pumps Hydrovar Pump Controller Specifications | View | ||
