4GV6023CD

Image shown may not be actual product

4GV6023CD

0 reviews

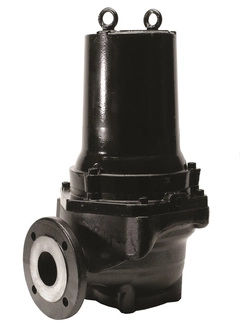

Goulds 4GV6023CD GV Series Submersible Vortex Sewage Pump, 6 HP, 1750 RPM, 230 Volt, 60 Hz, Three Phase, 6.69" (6 49/71") Impeller Size, 1200 GPM, 80' Heads To, 4" ANSI Flange Discharge, 17.2 Max Amps, 30' Cord Length

Call for Pricing

Best Price Guarantee!

Item: 4GV6023CD

Overview
Series Info
Reviews
Literature/Manuals

4GV6023CD

Capacities (GPM)	1200
Cord Length	30'
Discharge NPT (Inches)	4" ANSI Flange
Heads To (Feet)	80'
HP	6
Hz	60
Impeller Size (Inches)	6.6875" (6 11/16")
Max Amps	17.2

Maximum Operating Temperature	104º F (40º C) continuous duty
Phase	3 Ph (Three Phase)
Quick Specs	6HP 3/60/230 6.69" 17.2 MA
Speed (RPM)	1750
UPC	069766675149
Voltage	230

GV Plus Vortex Wastewater Pump Series Information

Features & Benefits
Goulds Water Technology GV Sewage Pump Line Range of Features: Impeller: Cast iron multi-vane vortex style, with rip vane on the back edge of the impeller for removing stringy solids. V model designation for vortex impeller Casing: Cast Iron construction with large unobstructed passage way to pass large solids. Efficient air-filled motor Dual Mechanical Seals: For standard and Explosion Proof models, Tungsten Carbide vs. Ceramic seal faces standard on outer seals. Carbon vs. Ceramic seal faces standard on inner seals. All elastomers shall be nitrile. Seal Sensor / High Temperature Probe: Located in motor housing. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires minicas device in the control panel. Capable of running dry without damage to components. Designed for continuous operation, when fully submerged. Explosion-proof FM available as option. FM approved. Shaft: Corrosion resistant, 400 series stainless steel. Taper lock and impeller bolt on all models to guard against component damage on accidental reverse rotation. Fasteners: 300 series stainless steel. Grease for life bearings
General Description
Goulds Water Technology GV Plus Non Cloggin Design, Dual Seal with Sensor Probe, Submersible Vortex Sewage Pump 2GV Pump Series: • Maximum soft solid size: 2" • Capacities: up to 275 GPM • Total heads: up to 82' TDH • Discharge size: 2" NPT 3GV Pump Series: • Maximum soft solid size: 2½" • Capacities: up to 575 GPM • Total heads: up to 152' TDH • Discharge size: 3" ANSI Flange 4GV Pump Series: • Maximum soft solid size: 3" • Capacities: up to 1200 GPM • Total heads: up to 80' TDH • Discharge size: 4" ANSI Flange
Materials of Construction
strength.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Goulds Pumps GV Plus Vortex Sewage Pump 8204 / 8204X Brochure		View
	Goulds Pumps GV Plus Vortex Sewage Pump 8202 / 8202X Brochure		View
	Goulds Pumps GV Plus Vortex Sewage Pump 8201 / 8201X Brochure		View
	Goulds Pumps 4GV Plus Vortex Sewage Pump Technical Brochure		View
	Goulds Pumps 3GV Plus Vortex Sewage Pump Technical Brochure		View
	Goulds Pumps 2GV Plus Vortex Sewage Pump Technical Brochure		View
	Goulds Pumps GV Plus Vortex Sewage Pump Brochure		View
	Goulds Pumps GV Plus Vortex Sewage Pump 8203 / 8203X Brochure		View
	Goulds Pumps 4GV Plus Vortex Sewage Pump Specifications		View
	Goulds Pumps 3GV Plus Vortex Sewage Pump Specifications		View
	Goulds Pumps 2GV Plus Vortex Sewage Pump Specifications		View
