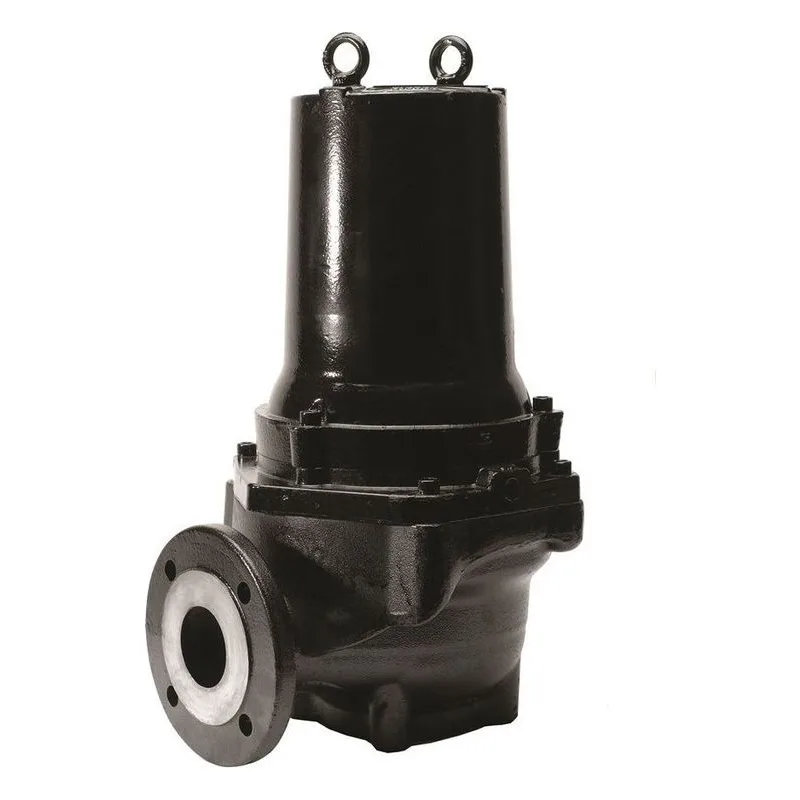

Image shown may not be actual product

    Goulds

    2GV2318CD

    0 reviews

    Goulds 2GV2318CD GV Series Submersible Vortex Sewage Pump, 2.3 HP, 3450 RPM, 208 Volt, 60 Hz, Single Phase, 4.09" (4 8/89") Impeller Size, Heads To, 2" NPT Discharge, 30' Cord Length

    $1,726.90

    Item: 2GV2318CD
    • Overview
    • Series Info
    • Reviews
    • Literature/Manuals

    2GV2318CD

    Goulds 2GV2318CD GV Series Submersible Vortex Sewage Pump, 2.3 HP, 3450 RPM, 208 Volt, 60 Hz, Single Phase, 4.09" (4 8/89") Impeller Size, Heads To, 2" NPT Discharge, 30' Cord Length

    Actual Weight100
    Cord Length30'
    Discharge NPT (Inches)2" NPT
    HP2.3
    Hz60
    Impeller Size (Inches)4.09" (4 8/89")
    PhaseSingle Phase
    Speed (RPM)3450
    Voltage208

    GV Plus Vortex Wastewater Pump Series Information

    Features & Benefits
    Goulds GV Sewage Pump Line Range of Features:
    Impeller: Cast iron multi-vane vortex style, with rip vane on the back edge of the impeller for removing stringy solids.
    V model designation for vortex impeller
    Casing: Cast Iron construction with large unobstructed passage way to pass large solids.
    Efficient air-filled motor
    Dual Mechanical Seals: For standard and Explosion Proof models, Tungsten Carbide vs. Ceramic seal faces standard on outer seals. Carbon vs. Ceramic seal faces standard on inner seals. All elastomers shall be nitrile.
    Seal Sensor / High Temperature Probe: Located in motor housing. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires minicas device in the control panel.
    Capable of running dry without damage to components.
    Designed for continuous operation, when fully submerged.
    Explosion-proof FM available as option. FM approved.
    Shaft: Corrosion resistant, 400 series stainless steel. Taper lock and impeller bolt on all models to guard against component damage on accidental reverse rotation.
    Fasteners: 300 series stainless steel.
    Grease for life bearings
    General Description
    Goulds GV Plus Non Cloggin Design, Dual Seal with Sensor Probe, Submersible Vortex Sewage Pump
    2GV Pump Series:
    • Maximum soft solid size: 2"
    • Capacities: up to 275 GPM
    • Total heads: up to 82' TDH
    • Discharge size: 2" NPT
    3GV Pump Series:
    • Maximum soft solid size: 2½"
    • Capacities: up to 575 GPM
    • Total heads: up to 152' TDH
    • Discharge size: 3" ANSI Flange
    4GV Pump Series:
    • Maximum soft solid size: 3"
    • Capacities: up to 1200 GPM
    • Total heads: up to 80' TDH
    • Discharge size: 4" ANSI Flange
    Materials of Construction
    strength.
