The Industry Standard for High-Volume Irrigation and Water Transfer

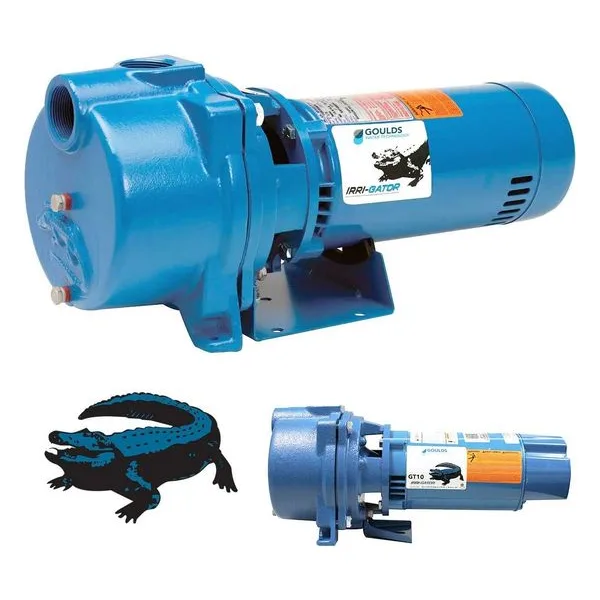

The Goulds GT IRRI-GATOR is a high-performance self-priming centrifugal pump engineered for residential and small commercial water systems. Built for relentless dependability, the GT series is the preferred choice for applications requiring consistent water flow from shallow wells, lakes, or storage tanks. Whether you are managing a large-scale lawn sprinkling system or agricultural water transfer, these pumps deliver the pressure and volume needed to keep your systems running at peak efficiency.
Engineered for Performance and Longevity
The GT series is built to withstand the elements and provide years of continuous operation. Key design features include:
Self-Priming Design: Once the pump is manually filled for the first time, it is capable of repriming automatically whenever the water level rises above the suction pipe—handling suction lifts up to 25 feet.
Rugged Cast Iron Construction: The heavy-duty casing is treated with an electro-coat paint process, baked on both inside and out for superior corrosion and abrasion resistance.
Continuous Operation Rating: Powered by a NEMA standard motor, these pumps are designed to operate 24/7 within their recommended limits without risk of motor damage.
Technical Performance Summary
Feature | Performance Data |
Max Flow Rate | Up to 110 GPM |
Max Total Head | Up to 128 feet |
Suction Lift | Up to 25 feet |
Connections | 1½” NPT Suction & Discharge |
Liquid Temperature | 140°F (60°C) |
Max Working Pressure | 125 PSI |
Built-In Serviceability
Longevity is at the heart of the IRRI-GATOR design. The Back Pull-Out Design allows for the entire pump to be disassembled for maintenance or repair without ever disturbing the existing piping. The two-compartment motor also provides simplified access to wiring and replaceable components, significantly reducing labor time and maintenance costs.
Versatile Application Range
The Goulds GT IRRI-GATOR is the definitive choice for:
Residential Irrigation: High-volume lawn and garden sprinkling.
Water Transfer: Moving water from ponds, lakes, or storage tanks.
Agricultural Support: Small-scale farm irrigation and dewatering.
Climate Control: Reliable circulation for heat pumps and air conditioning systems.
