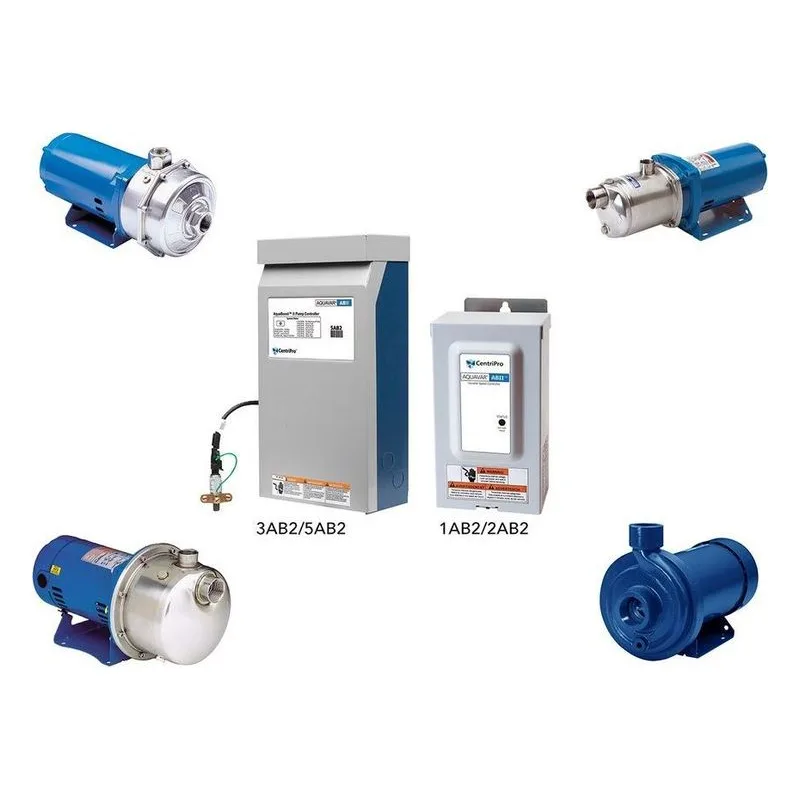

Goulds 3AB2 10.9A AQUABOOST II CONTROLLER
|Quick Specs||10.9 Amp 3HP Controller, Panel mount, transducer and transducer cable|
|Features & Benefits|
|Think of it as “Cruise Control” for your pump! The AquaBoost II is available with a range of flow rates to handle homes with up to four baths, irrigation, filtration and fire suppression systems. Light commercial applications up to 100 GPM at 45 PSI boost. The AquaBoost II is available as either a separate controller or as part of a complete pump package with everything you need to plumb it to a domestic water line.|
Input Power: 208-230V ±15%, single phase (controller only - Low input voltage may affect motor operation.)
Output Power: Up to 230V three phase (based on input voltage). Motor rated for 208-230V, ±10%.
Maximum Output Current: 4.2 amps – 1AB2 (1 HP) — 6.9 amps – 2AB2 (2 HP)
Input Controls: Up and down buttons to set pressure.
Signal Lights: Power on, pump running, inverter stopped, pump stopped, standby, faults/errors.
Electrical Efficiency: Over 95% at full load
Protection Against: Short circuit, under voltage, overload, motor temperature, dead heading, run out, suction loss, sensor fault, bound pump, over voltage, static discharge. Note: Suction loss/run out is set for minimum 10 psi at discharge!
Ambient Temperature: 34º F to 104º F
Maximum Humidity: 95% at 104º F, non-condensing
Air Pollution: Avoid mounting in areas with excessive dust, acids, corrosives and salts.
Approvals: Controller Enclosure — Outdoor, NEMA 3R, IP 43 (Rain-tight)
Mounting: Wall mount with mounting hardware.
Cooling: Convection with cast aluminum heat sink. 3 HP, 5 HP with temperture fan.
Transducer: 0.5 - 4.5 VDC with 5 VDC power supply, 100 psi range, 80-inch 3-wire shielded cable.
Input Wire: 5 feet of 14, 10 or 8 gauge cable. Depending on size, cable is pre-wired to controller and motor conduit box.
Output Wire: 10 feet of 14 gauge cable. Cable is pre-wired to controller and pump motor (when provided).
PRESSURE RANGE: Nominal Range — Field adjustable from 20 - 80 psi, total system pressure.
|The Aquavar ABII pump controller is a constant pressure booster system that is specifically designed for customers of municipal water districts with low water pressure, or if they are boosting from a storage tank. The Aquavar ABII provides an economical answer for both residential and commercial customers who need to increase their water pressure when water demand is high.|
As water flows to your house, it loses some of its pressure to friction inside the pipe. The higher the flow, the more the friction reduces your water pressure. This flow increase can be caused by more homes and businesses on your water main, the size of your home piping system or increased water use in your house. As water use increases, the Aquavar ABII changes pump speed to keep line pressure constant. Large supply tanks are eliminated and up to 50% of the energy required by a full speed pump is saved.
Aquavar ABII is available with a range of flow rates to handle homes with up to four bathrooms, irrigation systems, and fire suppre ssion systems. The Aquavar ABII comes with everything that is needed for your installer to plumb it to a residential water line.
