Smart, Connected, All‑in‑One Pressure Boosting

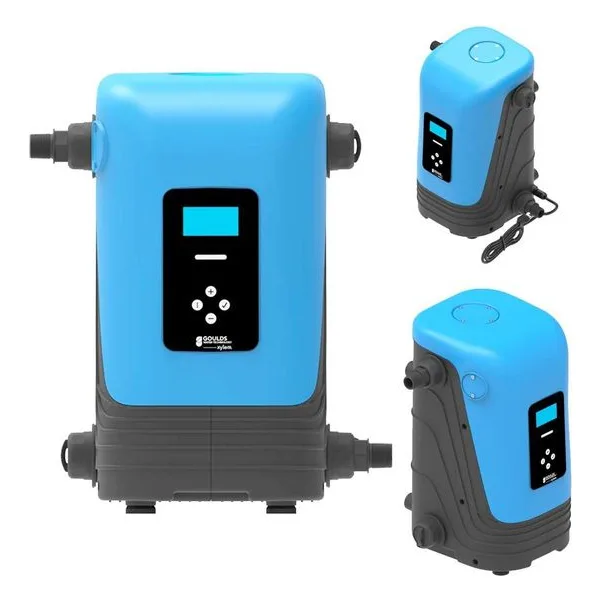

Introducing the AquaCase™ by Goulds Water Technology—a next‑generation pressure boosting system engineered to deliver steady, reliable water pressure for residential and light commercial applications. With built‑in Wi‑Fi and Bluetooth®, AquaCase connects to a free mobile app, giving users effortless remote monitoring and control from anywhere.
Its compact, all‑in‑one design integrates a variable speed pump, motor, pressure sensor, tank, and intelligent controller into a single, streamlined unit. The result is faster installation, greater efficiency, and consistently dependable performance.
AquaCase brings smarter water pressure management to every installation.
The AquaCase Advantage
AquaCase delivers a cost‑effective solution for homes and properties dealing with low municipal water pressure, and it’s equally effective for boosting pressure from a storage tank. As water usage fluctuates throughout the day, the system automatically adjusts motor speed to match demand, ensuring consistent, reliable pressure whenever you need it.
Product Features
Energy efficient: Variable frequency drive (VFD) technology automatically adjusts pump speed to maintain steady pressure while reducing energy consumption.
Wireless access: Built‑in Bluetooth® and Wi‑Fi provide remote monitoring and control through a free smartphone app.
Versatile application: A single system designed for residential, light commercial, and irrigation use—eliminating the need for multiple product lines.
Dual‑voltage ready: Supports both 115V and 230V installations, simplifying selection and stocking.
Quiet performance: Advanced hydraulic design minimizes noise for a smoother, quieter operation.
Fast installation: MNPT inlet and discharge connections are engineered for straightforward setup and reduced installation time.
Dual‑seal protection: Primary and secondary mechanical seals work together to reduce leakage and extend system longevity.
Rugged enclosure: UL Type 3R (NEMA 3R) housing shields the integrated system for reliable indoor or outdoor use.
Upgradable software: Add new features and performance enhancements in the field—no need to remove the unit from service.
Built‑in electrical safeguards: Integrated protection defends against over‑current, incorrect voltage, short circuits, and other electrical issues.
The AC10 model operates on either 115V or 230V, offering flexibility for different installation requirements. At 115V, it delivers 10 GPM at 56 PSI (37.8 L/min at 3.86 BAR) with a maximum flow of 30 GPM (113.5 L/min). At 230V, it provides 20 GPM at 50 PSI (75.7 L/min at 3.45 BAR) with a maximum flow of 38 GPM (143.8 L/min). The system supports a maximum setpoint of 80 PSI and requires a 15A breaker for both voltage configurations.
