4SDX32H4JF

Image shown may not be actual product

4SDX32H4JF

0 reviews

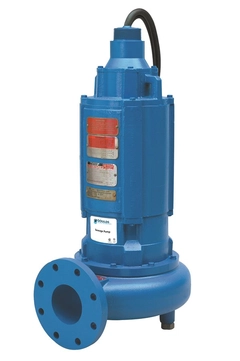

Goulds 4SDX32H4JF 4SDX Series 4 Inch Submersible, Explosion Proof Commercial Sewage Pump, 3 HP, 1750 RPM, 460 Volt, 60 Hz, Three Phase, 6.31" (6 22/71") Impeller Size, 650 GPM, 52' Heads To, 4" ANSI 125# Flange Discharge, 4.9 Max Amps, 50' Cord Length, 3" Solids Handling

Pump Catalog Price
Retail Price: $21,289.10
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 4SDX32H4JF

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

4SDX32H4JF

Capacities (GPM)	650
Cord Length	50'
Discharge NPT (Inches)	4" ANSI 125# Flange
Heads To (Feet)	Up To 52'
HP	3
Hz	60
Impeller Size (Inches)	6.3125" (6 5/16")
Max Amps	4.9

Phase	3 Ph (Three Phase)
Quick Specs	3HP 3/60/460 6.31" 4.9MA
Solids (Inches)	3"
Speed (RPM)	1750
UPC	069766669988
Voltage	460

4SDX Explosion Proof 4 Inch Sewage Pump Series Information

Features & Benefits
Goulds Water Technology 4SDX Pump Series Full Range of Features: Casing: Heavy duty gray cast iron, ASTM A48, Class 30. Volute type casing with 4”, 125#, flanged, horizontal discharge conforming to ANSI standards. Compatible with A10 40, A10-60 cast iron or A10-40Booster, A10-60B cast iron and brass (non-sparking) slide rail assembly. Seals: Tandem mechanical seal system in an oil filled seal chamber. Each seal operates independently to ensure fail safe performance. Standard seals are carbon rotary and ceramic stationary. Outer seals are designed for easy replacement. Optional seals are available. Seal Sensor Probes: Pump has a standard dual probe moisture detection system located in an oil filled seal chamber. The sensor leads must be connected to a “seal fail circuit” in the control panel. Designed for a variety of hazardous commercial and industrial applications such as: • Sewage systems • Flood and pollution control • Dewatering and effluent • Hospitals • Trailer courts • Hotels and motels
General Description
Goulds Water Technology 4SDX Explosion Proof Submersible Sewage Pump Class 1, Division 1, Groups C & D Hazerdous Locations: • Maximum solid size: 3” • Discharge size: 4” ANSI 125# Flange • Maximum capacity: 650 GPM • Maximum total head: 52’
Motors
Motor Specifications: • Maximum ambient temperature: 40º C (104º F) • Rated for continuous duty with motor fully submerged • Service Factor: 1.15 • HP range: Single phase: 2 to 3 HP, Three phase: 2 to 7.5 HP • 60 Hz Voltages available: Single phase: 230, Three phase: 200, 230, 460 and 575 • Insulation: Class F • Single row ball bearings
Impeller Information
Cast iron, ASTM A48, Class 30, two vane semi-open, non-clog design with pump out vanes for mechanical seal protection. Computer balanced for smooth operation. Silicon bronze impeller is an option.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Goulds 4SDX Explosion Proof Sewage Pump 50Hz Technical Brochure		View
	Goulds 4SDX Explosion Proof Sewage Pump Technical Brochure		View
	Goulds 4SDX Explosion Proof Sewage Pump Manual		View
	Goulds 4SDX Explosion Proof Sewage Pump Motor Manual		View
	Goulds 4SDX Explosion Proof Sewage Pump Specifications		View
	Goulds 4SDX Explosion Proof Sewage Pump Repair Parts		View

Repair Parts for 4SDX32H4JF

Product		shipping	price
	10K134	Lead Time TBD	$1,979.60	Select item
2K906			Call for Shipping
	1K428	Lead Time TBD	Call for pricing
	13K48	Lead Time TBD	$61.60	Select item
	13K304	Ships in	Call for pricing
	13K158	Lead Time TBD	Call for pricing
	4K42	Lead Time TBD	Call for pricing
	4K11	Lead Time TBD	$58.80	Select item
	13L39	Ships in	$23.80	Select item
