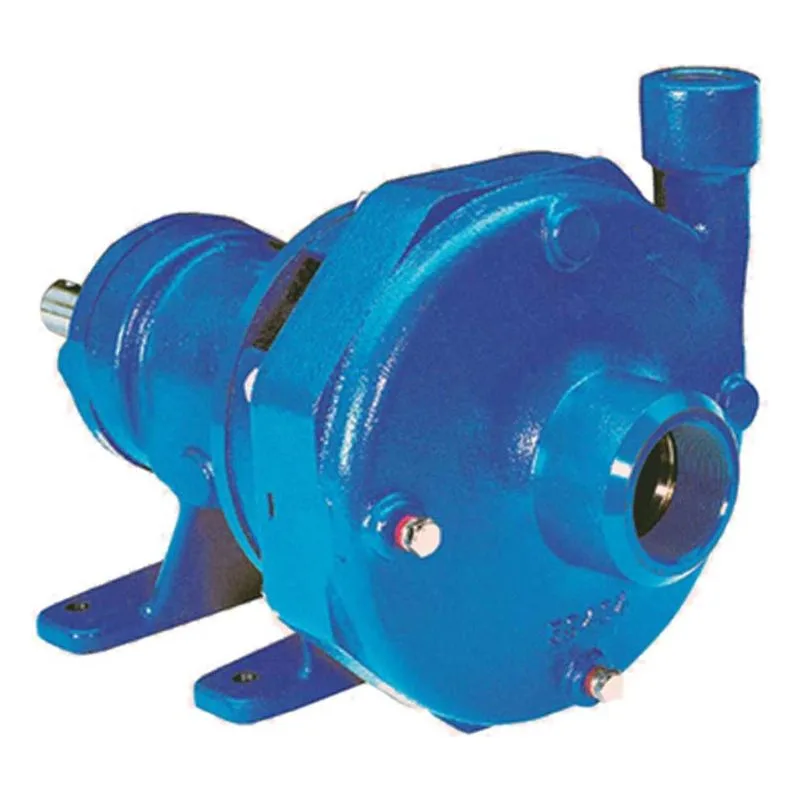

Image shown may not be actual product
5ABFRMB3
Goulds Water Technology 5ABFRMB3 3756 S-Group All Bronze Frame Mounted End Suction Centrifugal Pump. Pump Size 1-1/2x2-8 with 2" NPT Suction & 1.5" (1-1/2") NPT Discharge, 7.62" (7-5/8") Silicon Bronze Impeller, and Car/SilCar/Viton Mechanical Seal. 175 PSIG Max Pressure, a Xylem Brand Product.
- Pump Catalog Price
Retail Price: $4,879.00How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
5ABFRMB3
Goulds Water Technology 5ABFRMB3 3756 S-Group All Bronze Frame Mounted End Suction Centrifugal Pump. Pump Size 1-1/2x2-8 with 2" NPT Suction & 1.5" (1-1/2") NPT Discharge, 7.62" (7-5/8") Silicon Bronze Impeller, and Car/SilCar/Viton Mechanical Seal. 175 PSIG Max Pressure, a Xylem Brand Product.
| Adapter Material | Cast Iron |
| Capacities (GPM) | 550 GPM (125 m3/hr) at 3500 RPM, 350 GPM (79 m3/hr) at 1750 RPM |
| Casing Material | Silicon Bronze |
| Casing Wear Ring Material | Bizmuth Brass |
| Connection Type | NPT |
| Discharge NPT (Inches) | 1.5" NPT |
| Elastomer | Viton |
| Group | S-Group |
| Heads To (Feet) | 280 ft. (85m) at 3500 RPM, 67 ft. (20m) at 1750 RPM |
| Impeller Code | B |
| Impeller Material | Silicon Bronze |
| Impeller Size(Inches) | 7.625" (7-5/8") |
| Impeller Style | Enclosed Impeller |
| Material | All Bronze |
| Material Code | AB |
| Maximum Working Pressure (PSIG) | 175 PSIG (12 Bars) |
| Metal Parts | 316 Stainless Steel |
| Product Notes | Back Pull-Out |
| Pump Size | 1-1/2 x 2 - 8 |
| Quick Specs | BARE PUMP 7.62" DIA |
| Rotary | Silicon Carbide |
| Seal Code | 3 |
| Shaft Seal Material | Carbon / Silicon Carbide / Viton |
| Shaft Sleeve Material | Stainless Steel |
| Stationary | Silicon Carbide |
| Suction NPT (Inches) | 2" NPT |
| Suction Pressure | 100 PSIG (7 Bars) |
| UPC | 19299865453 |
3656 3756 S-Group Cast Iron Bronze Pump Series Information
| Features & Benefits |
|---|
| Goulds Water Technology Pump Model 3656 and 3756 S-Group Offers A Full Range of Product Features: • The model 3656 offers close coupled design for space saving and simplified maintenance. • The model 3756 offers a bearing frame mounted design for flexibility of installation and drive arrangements. • Back pull-out to reduce maintenance down time. • 3656/3756 available in all iron, bronze fitted or all bronze construction for application versatility. • Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency. • Packed box sealing is also available as an option. • Suction and discharge pipe connections are NPT threaded, except 3 x 4 – 7 which has 125 lb. ANSI flat faced flanges. • Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment. • Optional explosion proof or high efficiency motors available. • Optional rigid carbon steel bedplate, sheet metal coupling guard and T. B. Woods spacer coupling for 3756 models. |
| General Description |
| 3656/3756 S-Group models are Cast Iron, Bronze Fitted Centrifugal Pumps Close-Coupled and Frame Mounted Models |
| Materials of Construction |
| Superior Materials of Construction: AISI 304 and 316L stainless steel liquid handling components for corrosion resistance, quality appearance, and improved strength and ductility. |
| Enclosed Impeller |
| Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life. |
| Mechanical Shaft Seal Information |
| Standard Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available. |
| Motor Information |
| Standard NEMA motor frame, JM or JP shaft extension, C-face mounting, single phase or three phase, 3500 or 1750 RPM. Open drip proof and totally enclosed fan cooled. |
