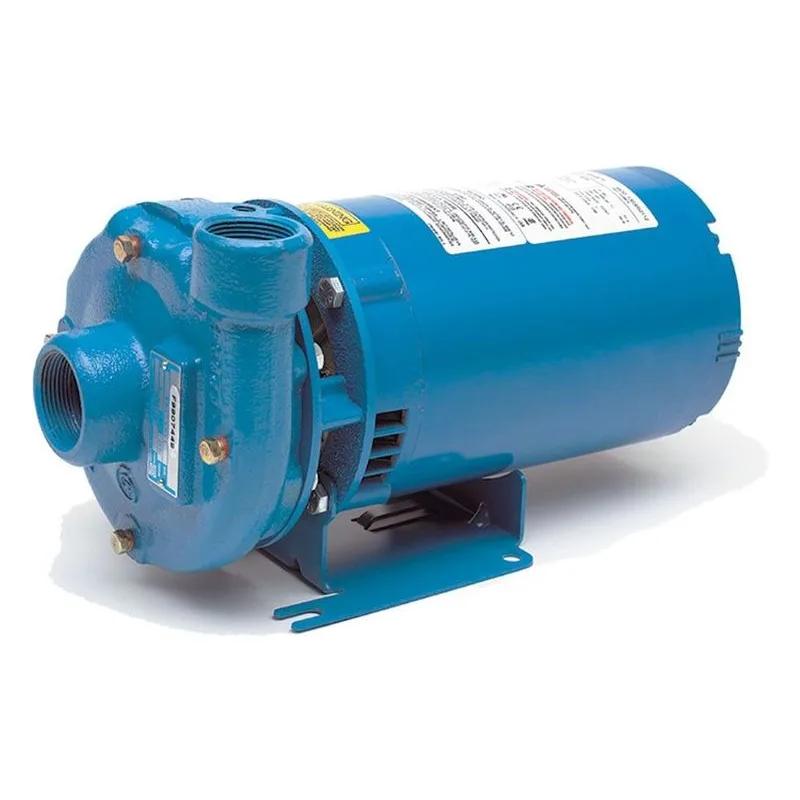

Image shown may not be actual product
1BF01034O
1BF01034O Goulds Pumps 3642 Series Centrifugal Pump, Close Coupled, Bronze Fitted. 1 HP, 208-230/460 Volts, 60 Hz, 3 Ph (Three Phase), WD PE - Wash Down (Premium Efficient) Motor. 3500 RPM, Carbon/Sil-Carbide/EPR Shaft Seal, Size: 1 x 1-1/4 - 5, 4.56" (4 9/16") Impeller Diameter, 1-1/4" NPT Suction, 1" NPT Discharge.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
1BF01034O
1BF01034O Goulds Pumps 3642 Series Centrifugal Pump, Close Coupled, Bronze Fitted. 1 HP, 208-230/460 Volts, 60 Hz, 3 Ph (Three Phase), WD PE - Wash Down (Premium Efficient) Motor. 3500 RPM, Carbon/Sil-Carbide/EPR Shaft Seal, Size: 1 x 1-1/4 - 5, 4.56" (4 9/16") Impeller Diameter, 1-1/4" NPT Suction, 1" NPT Discharge.
| Adapter Material | Cast Iron |
| Capacities (GPM) | 110 GPM |
| Casing Material | Cast Iron |
| Discharge NPT (Inches) | 1" NPT |
| Heads To (Feet) | 118 feet |
| HP | 1 |
| Hz | 60 |
| Impeller Material | Bronze |
| Impeller Size(Inches) | 4.56" (4 9/16") |
| Material | Bronze Fitted |
| Maximum Working Pressure (PSIG) | 125 PSI |
| Metal Parts | 316 SS |
| Motor Enclosure Type | WDPE - Wash Down (Premium Efficient) |
| Phase | 3 Ph (Three Phase) |
| Pump Size | 1 x 1-1/4 - 5 |
| Quick Specs | 1HP 3/60/208-230-460 WDPE 4.56" |
| Rotary | Carbon |
| Shaft Seal Material | Carbon / Sil-Carbide / EPR |
| Speed (RPM) | 3500 |
| Stationary | Sil-Carbide |
| Suction NPT (Inches) | 1-1/4" NPT |
| Voltage | 208-230/460 |
3642 3742 Cast Iron Bronze Pump Series Information
| Features & Benefits |
|---|
| Goulds Water Technology G&L Pump Series 3642 - Residential, Commercial Close-Coupled Centrifugal Features and Benefits: Vertical or Horizontal mounting capabilities, Close-coupled, space saving design, Standard carbon/ceramic faced mechanical seal with BUNA elastomers, 300 series stainless steel components. Optional seals available, Enclosed impeller design for high efficiencies, Motor is a close-coupled design.Ball bearings carry all radial/axial thrust loads. Designed for continuous operation. G&L Pump Series 3742 - Residential, Commercial ½ to 3 HP Frame-Mounted Centrifugal Pumps Features and Benefits: Construction: Available in bronze-fitted (BF), all iron (AI), or all bronze (AB). Bronze-fitted means bronze impeller. Frame-Mounted Design: Flexibility of installation and driver arrangements. Back Pull-Out Design: Simplifies maintenance when used with spacer type coupling. Cast Iron Power Frame: Rigidly supported, grease-for-life ball bearing assembly. Impeller: Enclosed design for high efficiencies. Threaded directly on pump shaft. Stainless steel locknut on three phase models. Requires no clearance adjustments. Balanced for smooth operation. Mechanical Seal: Standard John Crane Type 6 with carbon versus ceramic faces, BUNA elastomers, and 18-8 stainless metal parts. Optional high temperature and chemical duty seals available. Motors: NEMA standard open drip-proof, totally enclosed fan cooled or explosion proof enclosures. Rugged ball bearing design for continuous duty under all operating conditions. |
| General Description |
| 3642 / 3742 pump applications include water circulation; booster service; liquid transfer; spray systems; jockey pumps; OEM applications; and general water services. General applications traditionally requiring various materials such as all iron, bronze-fitted or all bronze construction |
| Motor Information |
| NEMA standard, Open drip proof, TEFC, or (explosion proof three phase only) enclosures. 60 Hz, 3500 RPM, Stainless steel shaft, Single phase: ½-2 HP ODP or TEFC. Built-in overload with automatic reset. Three phase: 1⁄3 - 2 HP: ODP, 208-230/460 V ½ - 2 HP: TEFC, 208-230/460 V, ½ - 2 HP: expl. proof, 230/460 V, NEMA 56J frame motors are used on close-coupled, 3642 pumps and T-frame motors are used on framemounted 3742 pumps. |
| Overload Protection |
| Overload protection must be provided in starter unit. Starter and heaters (3) must be ordered separately. |
| Direction of Rotation |
| Clockwise viewed from motor end. |
