2DV51D1VA

Image shown may not be actual product

2DV51D1VA

0 reviews

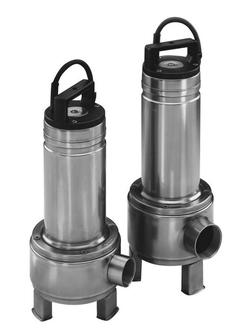

Goulds 2DV51D1VA 1DV / 2DV Series Submersible Sewage Pumps, 3/4 HP, 230 Volt, 60 Hz, Single Phase, 3450 RPM, 2" Discharge, 5.4 Max Amps, 20' Cord Length, 2" Solid Size Handling

Pump Catalog Price
Retail Price: $2,263.10
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 2DV51D1VA

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

2DV51D1VA

Goulds 2DV51D1VA 1DV / 2DV Series Submersible Sewage Pumps, 3/4 HP, 230 Volt, 60 Hz, Single Phase, 3450 RPM, 2" Discharge, 5.4 Max Amps, 20' Cord Length, 2" Solid Size Handling

Capacities (GPM)	to 130 U.S. GPM (41 m3/h)
Casing Material	304 Stainless Steel
Cord Length	20'
Discharge NPT (Inches)	2"
Heads To (Feet)	to 39 feet TDH (14 m)
HP	0.75
Hz	60
Impeller Material	304 Stainless Steel

Max Amps	5.4
Phase	1 Ph (Single Phase)
Quick Specs	3/4HP 1/60/230 5.4MA
Solids (Inches)	2" (50 mm)
Speed (RPM)	3450
UPC	069766611505
Voltage	230

1DV 2DV 1 1/2 Inch 2 Inch Sewage Pump Series Information

Features & Benefits
Casing: Corrosion resistant AISI 304 SS designed for long lasting performance. Impeller: AISI type 304 stainless steel construction; vortex design. Mechanical Seal: Drive lube silicon carbide sealing faces; all metal components of AISI type 300 stainless steel running in protected oil chamber. Elastomers: BUNA-N Pump Support Feet: Motor Shell and Lifting Handle: Constructed of AISI type 304 series stainless steel. Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening. Discharge: 1½" and 2" NPT for horizontal connection to rigid, flexible or guide rail piping connection. NOTE: See accessory section guide rail systems, type A10-20 for simplex or duplex system or base elbow rail systems.
General Description
Goulds Water Technology 1DV / 2DV (1 1/2" & 2") Submersible Sewage Pump Specifications • 1 1⁄2" discharge on 1⁄2 HP • 2" discharge on 3⁄4 HP and larger • Solid size: 13⁄8" solids on 1⁄2 HP; 2" solids on 3⁄4 HP and larger • Capacities: to 130 U.S. GPM (41 m3/h) • Total heads: to 39 feet TDH (14 m) • Temperature: 104ºF (40ºC) continuous, 140ºF (60ºC) intermitten • Maximum submergence: to 17 feet (5 m) • AISI 304 SS casing • AISI 304 SS impeller • Continuous duty rated, non-overloading motor
Motors
• Single phase: 60 Hz, 3450 RPM, 1⁄2 HP, 115 V; 1⁄2 to 1 HP, 230 V. • Three phase: 60 Hz, 3450 RPM, 1⁄2 to 11⁄2 HP, 230 and 460 V. • Non-overloading. • Air-filled, class F insulated motor. • Thermal overload protection: built-in with automatic reset on single phase, 115 V and 230 V models. • Three phase models require external overload in panel. • Power cord: 20 feet long. • Single phase 115 V and 230 V models are supplied with molded NEMA plugs and built-in capacitors. • Three phase models are supplied with bare leads. • Float controls: optional, see accessory section for simplex or duplex system requirements. • Rotation is clockwise when viewed from top.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Goulds 1DV / 2DV 1 1/2" & 2" Sewage Pump Instruction Manual		View
	Goulds 1DV / 2DV 1 1/2" & 2" Technical Manual & Performance Curves		View
	Goulds 1DV / 2DV 1 1/2" & 2" Repair Parts		View

Repair Parts for 2DV51D1VA

Product		shipping	price
	6L44	Ships in	Call for pricing
	13L121	Ships in	Call for pricing
13L122			Call for Shipping
	4L14	Lead Time TBD	$161.70	Select item
	4L427	Lead Time TBD	Call for pricing
	4L430	Lead Time TBD	Call for pricing
	2L724	Ships in	Call for pricing
