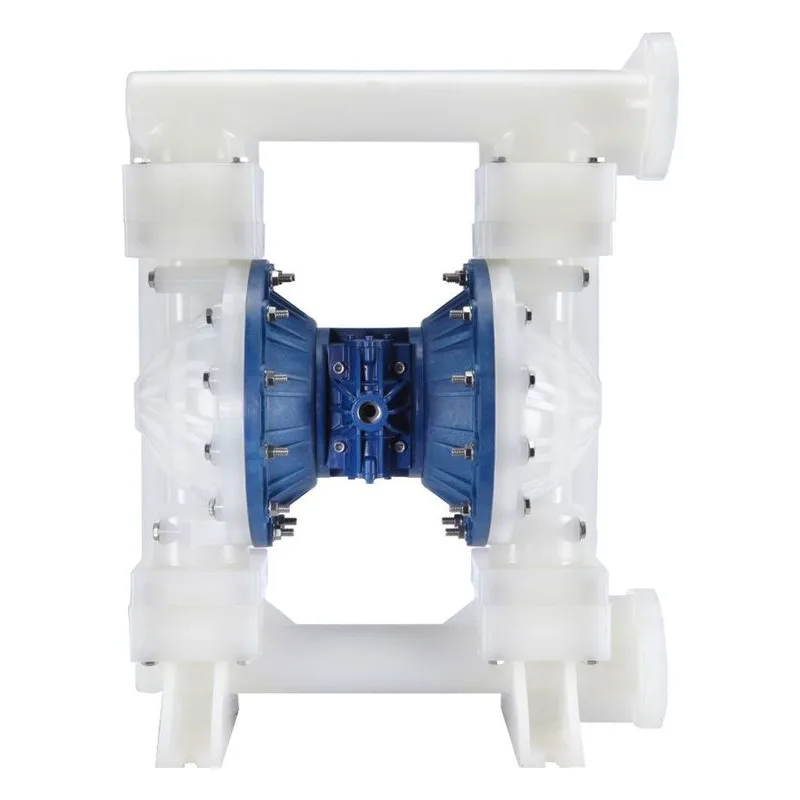

FT20V-PP-NNVB-F1
FTI Air FT20V-PP-NNVB-F1 2" (51mm) Non-Metallic AODD Pump. PVDF Wetted Materials & Seat, Glass Fiber Reinforced PP Non-Wetted & Valve, Neoprene Diaphragm & Ball, Buna O-Ring. Flange (ANSI/DIN/ISO) Connections, End Porting Location, A Finish Thompson Product.
$6,914.75
- Best Price Guarantee!
- 1382PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
FT20V-PP-NNVB-F1
FTI Air FT20V-PP-NNVB-F1 2" (51mm) Non-Metallic AODD Pump. PVDF Wetted Materials & Seat, Glass Fiber Reinforced PP Non-Wetted & Valve, Neoprene Diaphragm & Ball, Buna O-Ring. Flange (ANSI/DIN/ISO) Connections, End Porting Location, A Finish Thompson Product.
| Air Exhaust | 3/4" FNPT |
| Air Inlet | 3/4" FNPT |
| Air Supply Pressure | 100 psi (6.9 bar) Max |
| Connection Type | Flange (ANSI/DIN/ISO) |
| Diaphragm | Neoprene |
| Discharge NPT (Inches) | 2" |
| Fluid Port | End |
| Material | PVDF (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted) |
| Maximum Flow (GPM) | 154 GPM (583 lpm) |
| Pump Size | 2" |
| Solids (Inches) | 0.35” (8.9 mm) |
| Suction NPT (Inches) | 2" |
| Type | Pump |
| Valve Balls | Neoprene |
| Valve / Seat / O-Ring | Glass Fiber Reinforced Polypropylene / PVDF / Buna N |
