Finish Thompson FTI Pump End VKC8V30CVVN355C Vertical Centrifugal, VKC Series Plastic Mag Drive, VKC8, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.50" Impeller, 60 psi, 67 GPM

$2,751.84

Best Price Guarantee!
550PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: VKC8V30CVVN355C

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

VKC8V30CVVN355C

Finish Thompson FTI Pump End VKC8V30CVVN355C Vertical Centrifugal, VKC Series Plastic Mag Drive, VKC8, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.50" Impeller, 60 psi, 67 GPM

Bushing	Carbon
Column Length	30"
Connection Type	NPT
Discharge NPT (Inches)	1"
Heads To (Feet)	43
Impeller Size (Inches)	3.5" (3 1/2")
Material	PVDF
Maximum Flow (GPM)	67

Maximum Operating Temperature	140° F (60° C)
Maximum Pressure (PSI)	60 psi (413 kPa)
Motor Frame Size	56C
Pressure Rating BAR	4.13 bar
Spec. Gravity	up to 1.8
Suction NPT (Inches)	1-1/2"
Valve/Seat/O-Ring	FKM

VKC Vertical Mag Drive Pumps Information

Features & Benefits
VKC Vertical Mag Drive Pumps Feature: • Utilizes powerful neodymium magnets • Non-aerating (no micro-bubbles) • Reduced environmental emissions • No wetted shaft bearings • Mounts inside or outside of tank • Corrosion resistant Polypropylene or PVDF construction • Accepts standard NEMA or IEC motors • Modular build: in 6” increments from 12” (30 cm) to 60” (152 cm) • Up to 1.8 specific gravity • Maximum temperature 140oF (60oC) • Maximum working pressure: 60 psi
General Description
VKC Typical Applications: • High pressure/low flow chemical processing, spraying, bulk unload, and tank transfer applications • Plating recirculation/filtration, PCB etching and rinse • Water/waste water treatment, wet scrubber • Laboratory, pharmaceutical, photo processing

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	VKC Series Pumps Brochure (2022)		View
	VKC Vertical Series Pumps Datasheet (2022)		View
	KC, VKC, MSKC Series Pumps Performance Curves (2022)		View
	VKC5.5 thru VKC10 Vertical Pumps Installation & Operation Manual (2022)		View

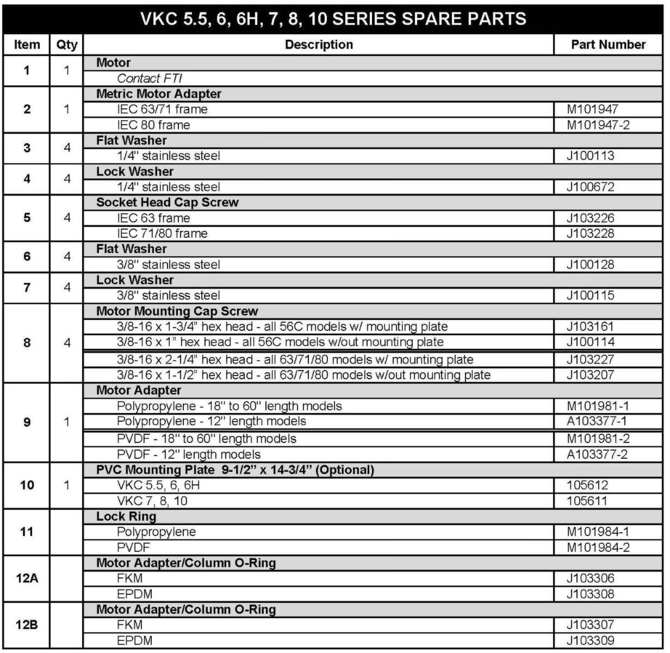

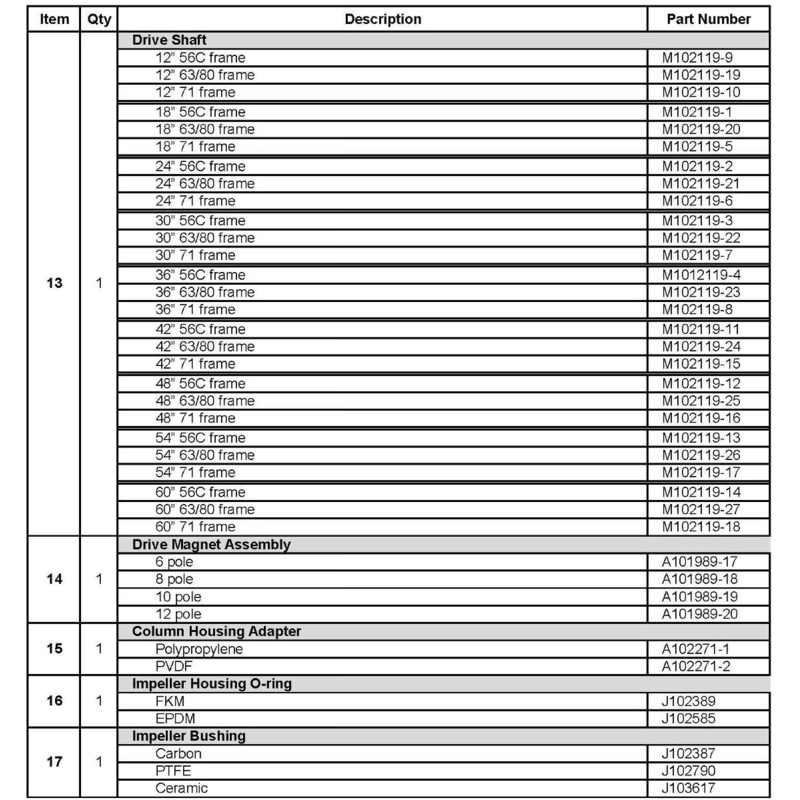

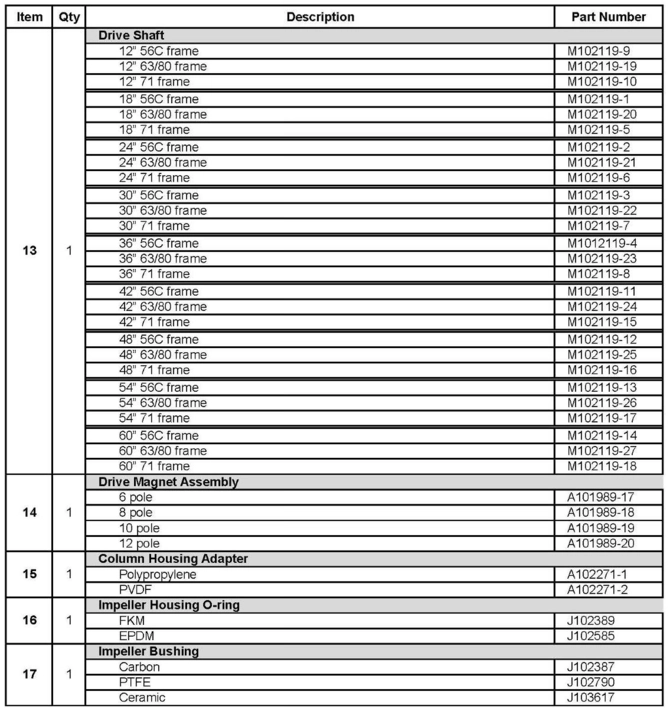

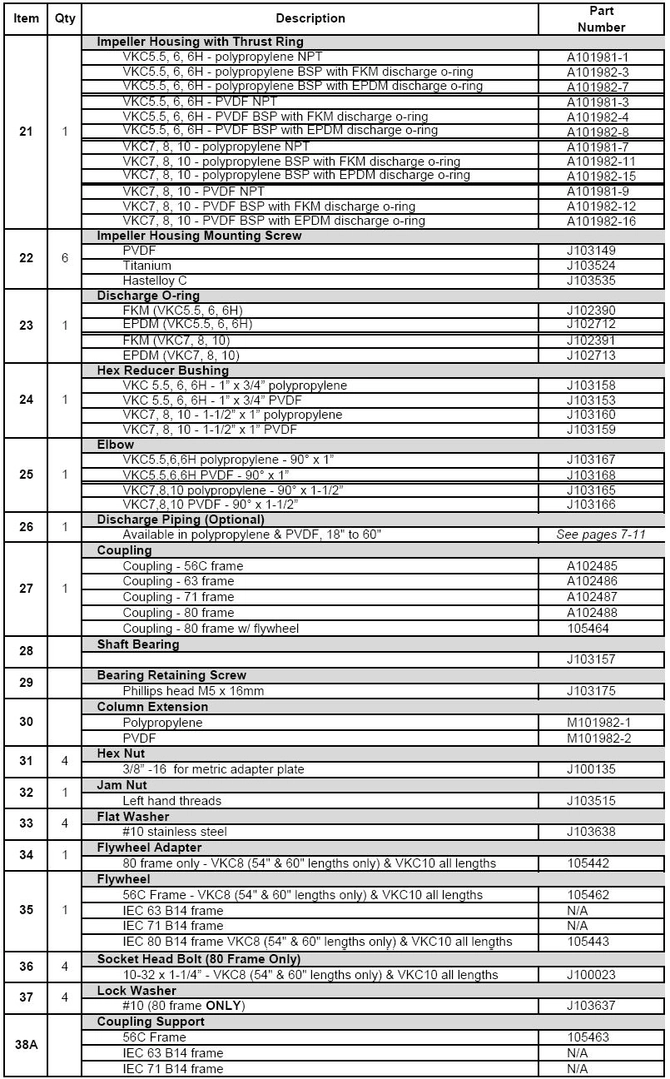

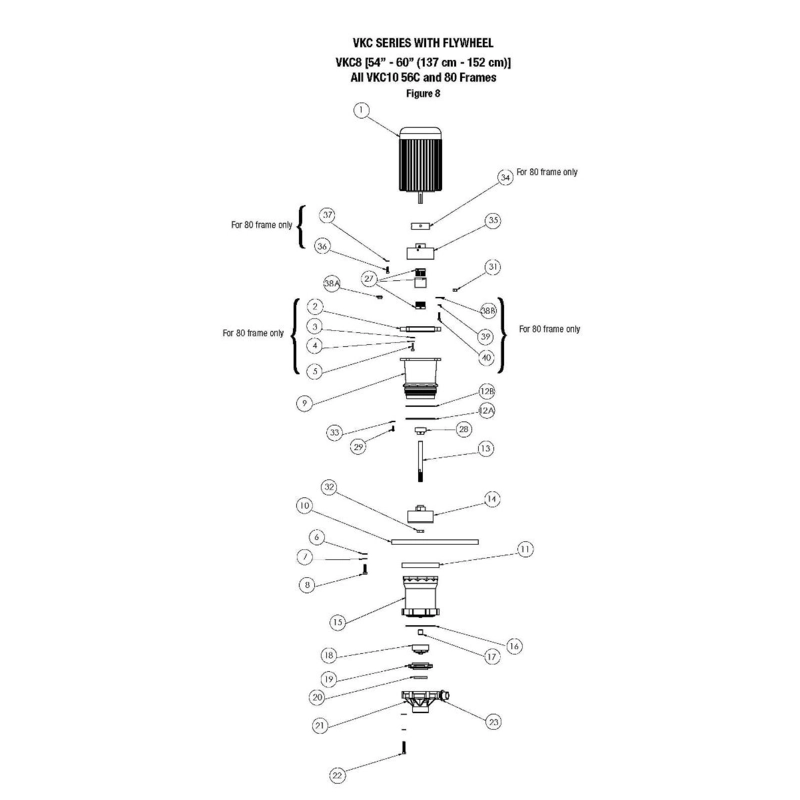

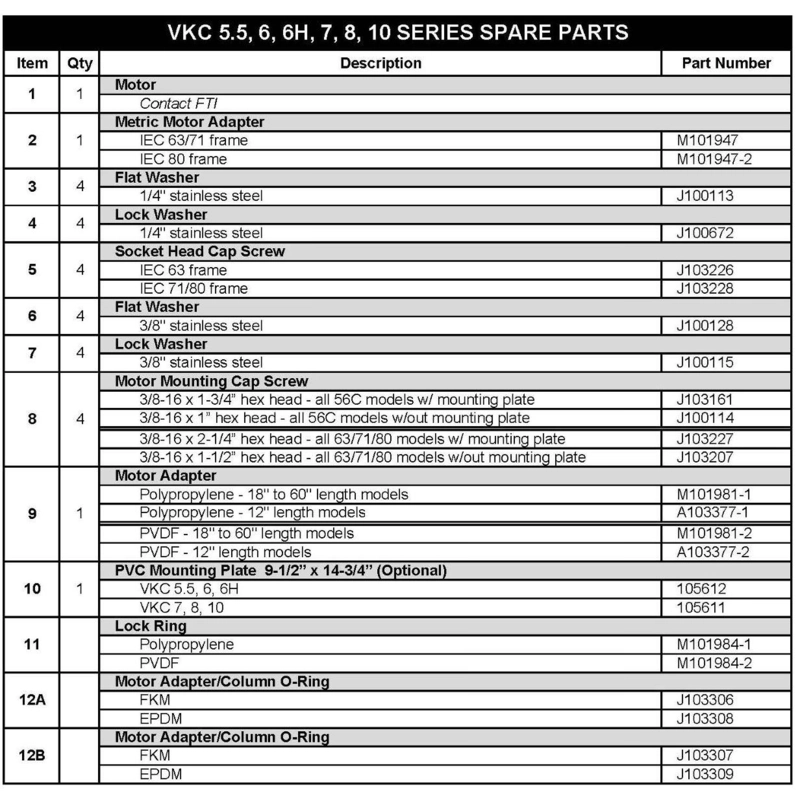

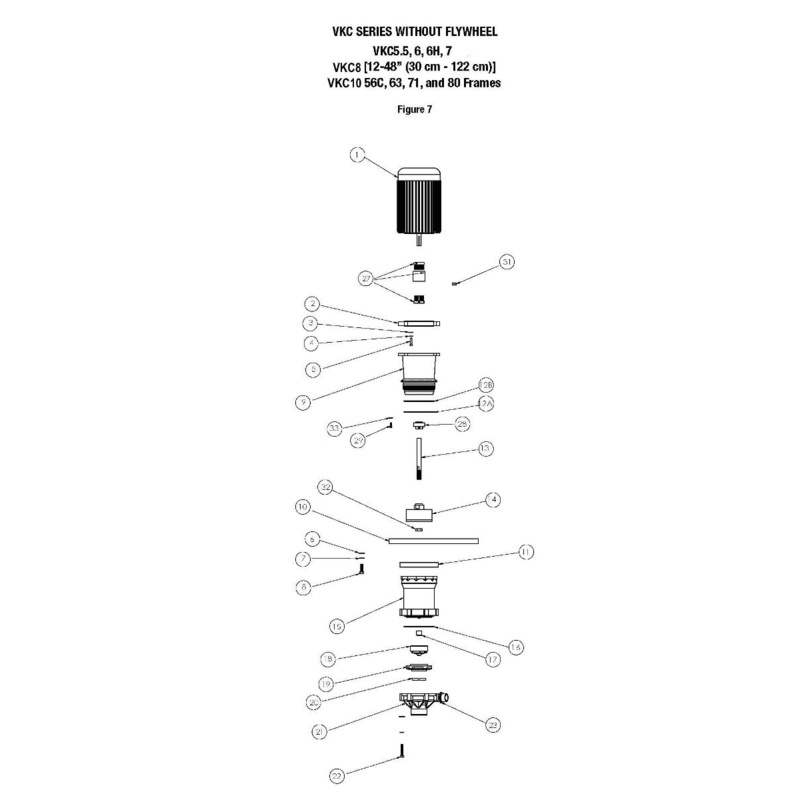

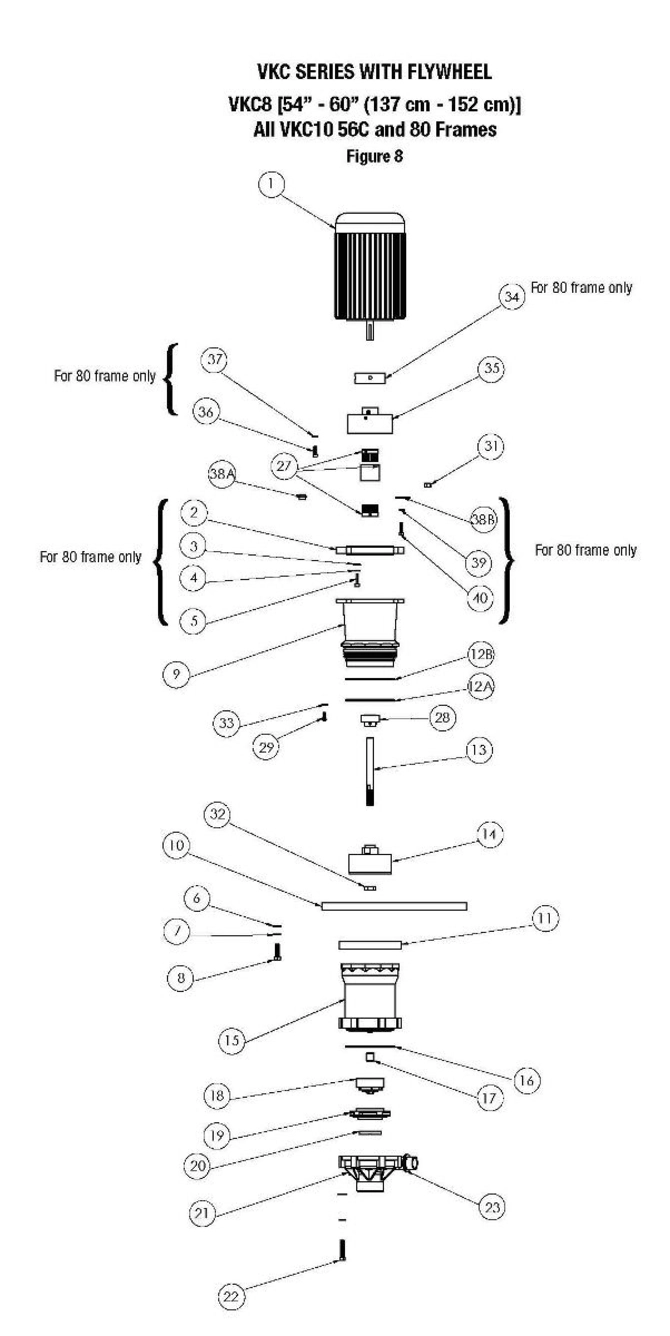

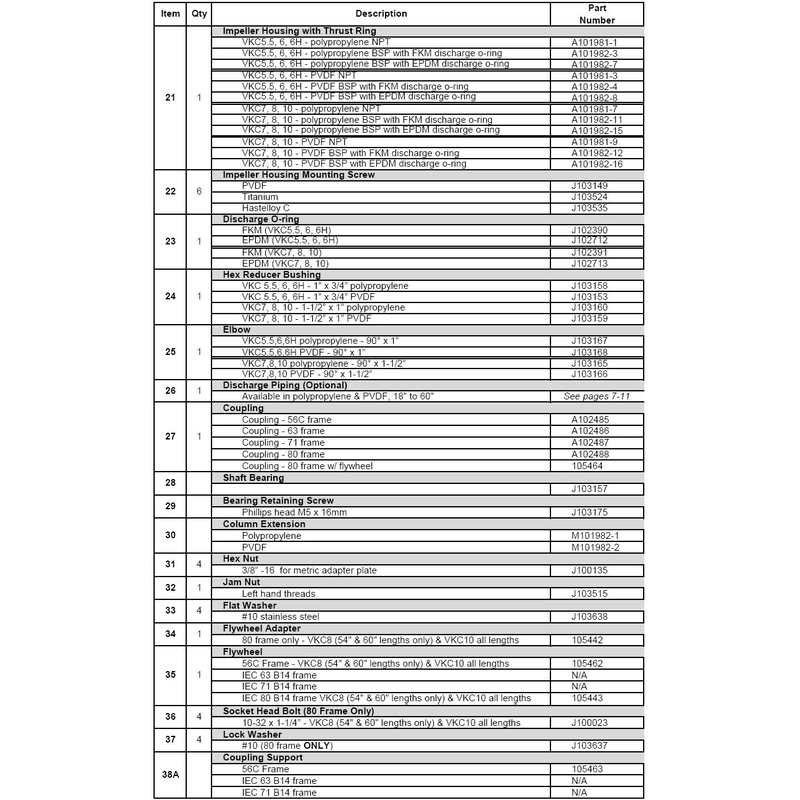

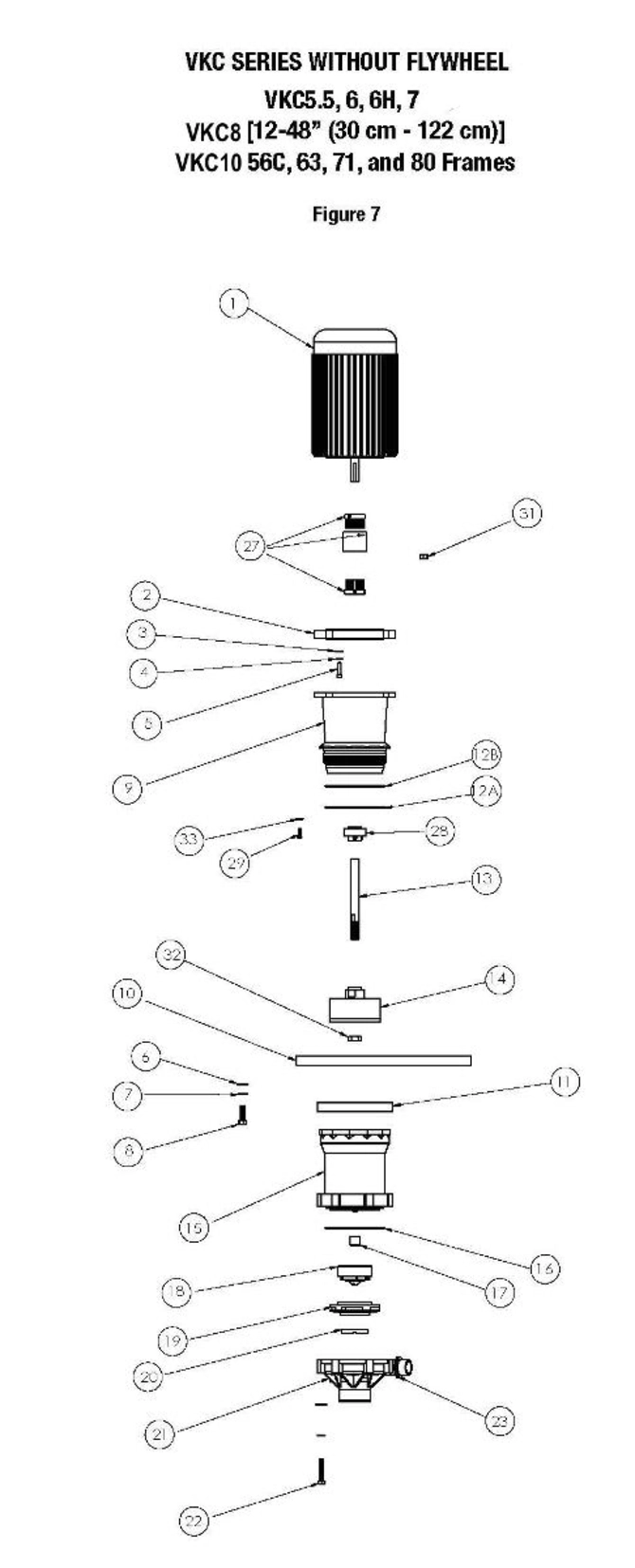

Repair Parts for VKC8V30CVVN355C

	shipping	price
J100113	Ships in	$0.10	Select item
J100672	Ships in	$0.08	Select item
J103228	Ships in	$2.87	Select item
J100128	Ships in	$0.13	Select item
J100115	Ships in	$0.18	Select item
J103161	Ships in	$2.01	Select item
J100114	Ships in	$0.65	Select item
M101981-2	Ships in	$323.95	Select item
105612	Ships in	$198.55	Select item
M101984-1	Ships in	$10.39	Select item
J103306	Ships in	$50.35	Select item
J103307	Ships in	$57.95	Select item
M102119-3	Ships in	$203.30	Select item
A102271-1	Ships in	$101.65	Select item
J102389	Ships in	$5.84	Select item
J102387	Ships in	$162.45	Select item
A101983-5	Ships in	$212.80	Select item
A101981-7	Ships in	$150.10	Select item
J103149	Ships in	$41.80	Select item
105612	Ships in	$198.55	Select item
J103158	Ships in	$61.75	Select item
J103167	Ships in	$53.20	Select item
A102487	Ships in	$104.50	Select item
J103157	Ships in	$120.65	Select item
J103175	Ships in	$3.90	Select item
M101982-1	Ships in	$76.95	Select item
J100135	Ships in	$0.36	Select item
J103515	Ships in	$5.20	Select item
J103638	Ships in	$0.19	Select item
105463-NEP	Ships in	$69.00	Select item
